Securing Front Apron Underneath

  1. Secure front apron -2-  underneath using the fastening screws -1-  . → Tightening torque: 2.8 Nm (2 ftlb.)

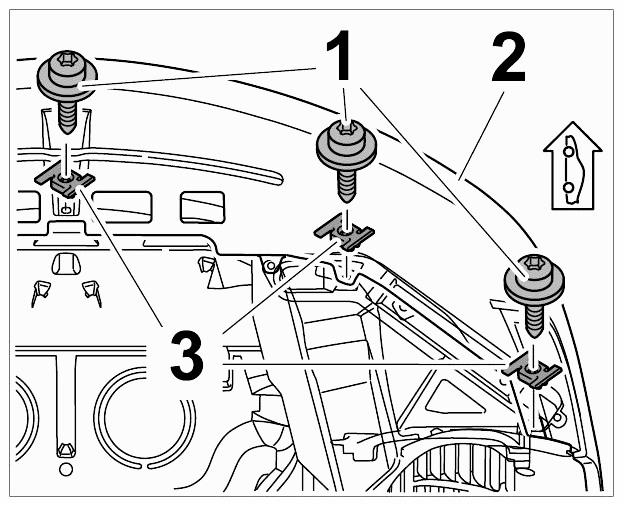

    Fig 1: Identifying Front Apron And Mounting Screws
    G09590584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check gap dimensions at the front lid, wing and main headlights. Loosen fastening screws if necessary and adjust gap dimensions by moving the front apron. → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)
