Securing Front Apron At The Top

Information

• Ensure water and electrical lines are laid properly.

1. Check retaining strip for front apron and replace it if necessary. → Installing Front Retaining Strip

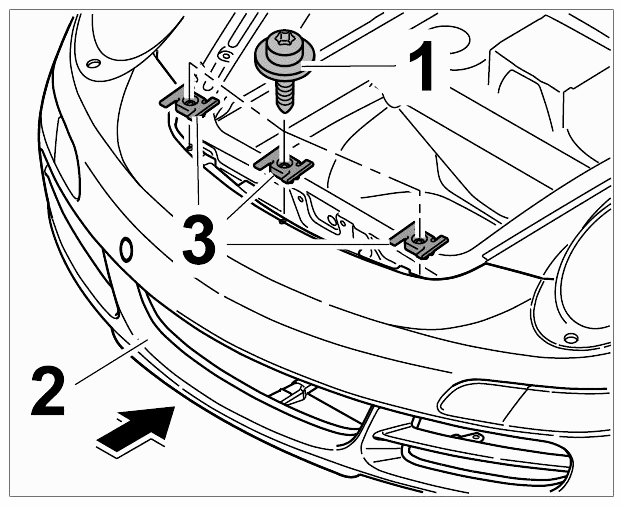

2. Check speed nuts -3-  and replace them if necessary.
3. Position the front apron -2-  on the body at the front.
   Fig 1: Securing Front Apron At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure front apron -2-  at the top using the fastening screws -1-  . →: 2.8 Nm (2 ftlb.)

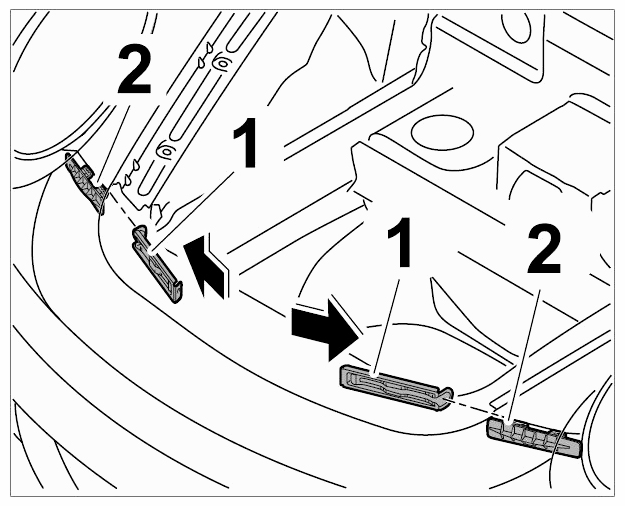

5. Insert locking mechanisms -1-  at the guides -2-  of the front apron and lock in -direction of arrow-  using a plastic wedge.
   Fig 2: Securing Front Apron At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
