Locking Plug Connections For Front Apron

  1. Lock plug connection in the right wheel housing.
    1. 1.1. Push together the plug connection -1-  (-arrows-  ) until the locking lug locks with an audible click.

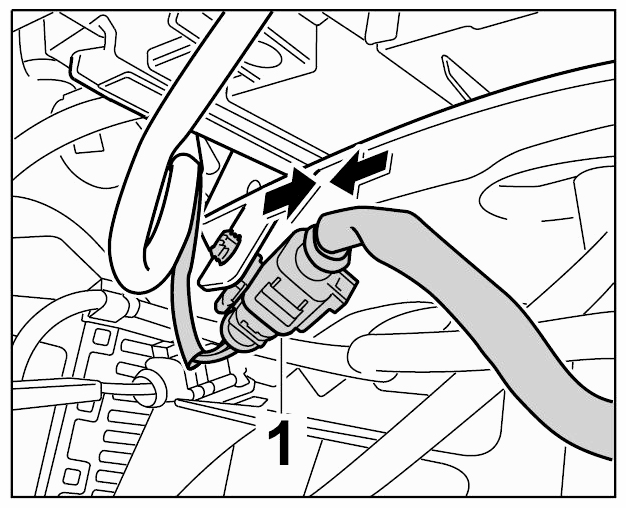

      Fig 1: Locking Right Wheel Housing Plug Connection
      G09590581Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lock plug connection in the left wheel housing.
    1. 2.1. Push together the plug connection -1-  (-arrows-  ) until the locking lug engages securely.

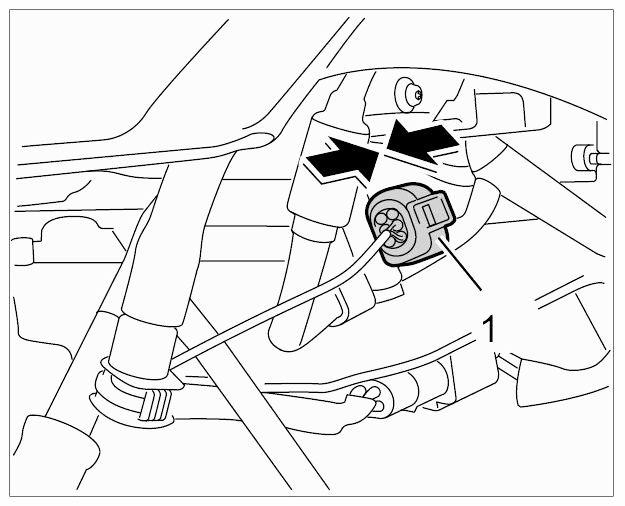

      Fig 2: Locking Left Wheel Housing Plug Connection
      G09590582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
