Installing The Front Bumper

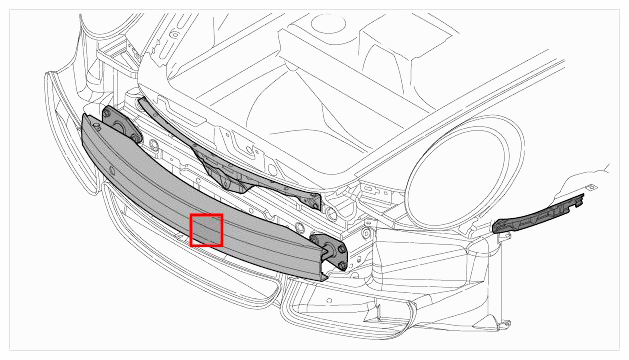

Fig 1: Identifying Front Bumper Installation Position
G09590547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position bumper -2-  .
  2. Screw in fastening screws -1-  and tighten to the specified tightening torque. Tightening torque → Final tightening: 63 ftlb  .

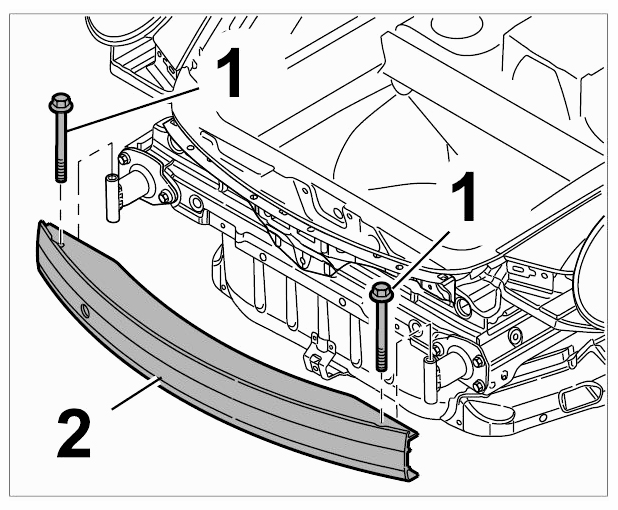

    3. Fig 2: Identifying Front Bumper And Mounting Screws
    G09590548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
