Installing Automatic Transmission
- Risk of squashing or crushing
Secure components to prevent them from falling down.
Information
- If the transmission is replaced, the adaptation values must be reset using the Porsche System Tester.
>373055 REPLACING TIPTRONIC CONTROL UNIT
- Risk of damage to transmission and torque converter
→ Always observe installation dimension
→ When securing the transmission, check that the torque converter can turn freely and is not jammed.
→ Do not use force when screwing the engine and transmission together
Information
- The torque converter can tilt slightly despite being seated correctly in the transmission.

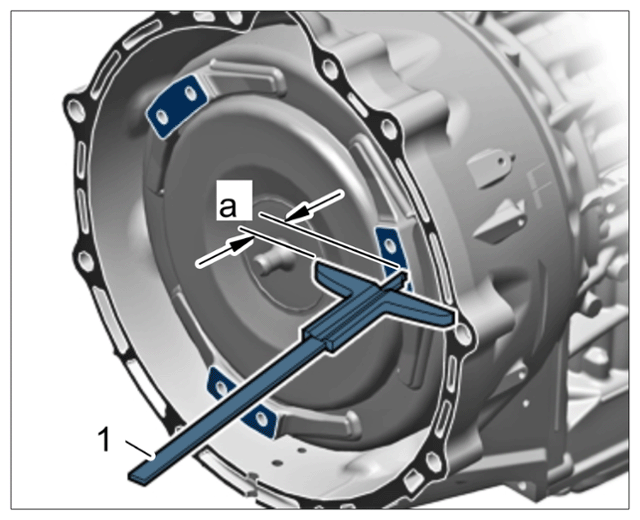

- When checking the installation dimension, make sure that the torque converter is as vertical as possible with respect to the transmission flange.
- The help of another person is required when guiding in the transmission.
- Before installing the automatic transmission, make sure that the torque converter is seated correctly in the transmission be" housing.

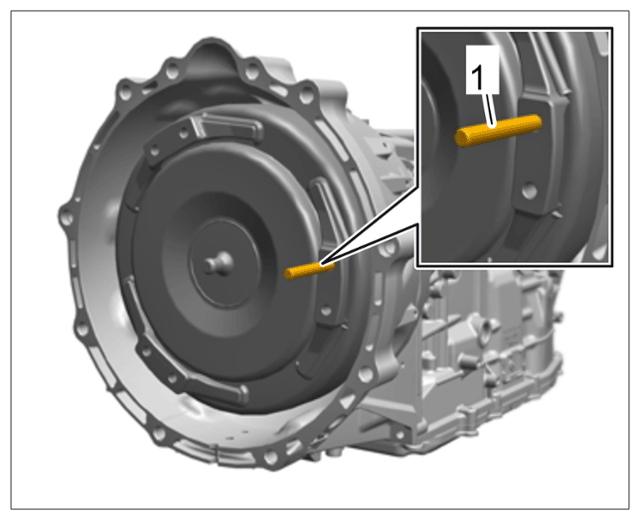

- Insert the magnetic > 9689 - centering pin-1- into a screw bore in the torque converter.
- 2.1 Align the torque converter using the centering pin in such a way that the centering pin is flush with the relevant bore in the drive plate.

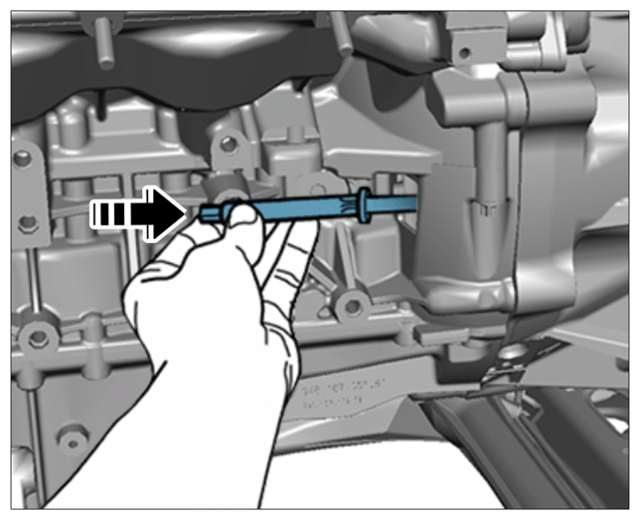

- 2.2 Insert a > 9595 - locating pin into the bore on the transmission bell housing in order to secure the torque converter.
Centering pin 9689 for fitting torque converter
Information
- Get one or more people to help when installing/removing heavy of difficult to-reach components.
- This will prevent or reduce the risk of possible damage.
Information
- When removing and installing the transmission, make sure that the torque converter does not slip out of the transmission.
- Secure the torque converter through the bore on the underside of the transmission with a > 9595 - locating pin.
- Gradually guide in the automatic transmission with the help of another person.
Check the portion of the centering pin!
- 3.1
Use the > VAS 6931 - engine and gearbox jack
to lift the automatic transmission as required and push it forward so that it can be positioned on the engine.
The dowel sleeves on the engine flange must fit into the bores on the transmission flange.
- 3.1
Use the > VAS 6931 - engine and gearbox jack
to lift the automatic transmission as required and push it forward so that it can be positioned on the engine.

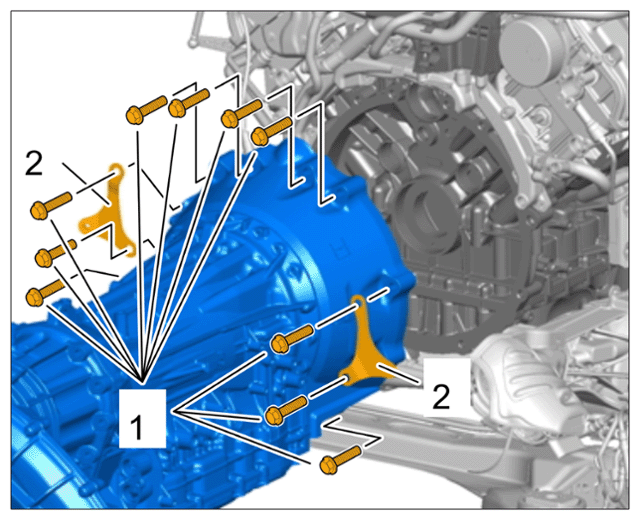

- Fit and tighten new aluminum screws -1-
with the holders -2-
for the primary catalytic converters.
- 4.1 Only fit the screws loosely on the holders.
Fitting automatic transmission screws
- > 9689 - Centering pin must then be pulled off.
Information
- When loosening or tightening the converter screws, the help of another person is required in order to turn the engine.
- Check the position of the converter screws using a mirror.
- The converter screws must be replaced.
- Only fit new screws for the torque converter initially.
- 6.1

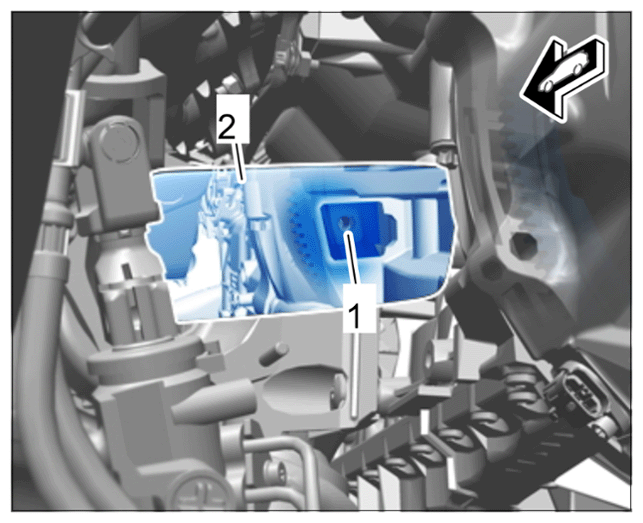

Check positions of the screw thread -1-
before fitting using a mirror -2-
.
Checking screw position using a mirror
- 6.2 For each screw, get another person to continue to turn the crankshaft clockwise using > 9714 - socket-wrench insert and a torque wrench.
- 6.3
Fit a new screw on special tool > 9688 - bit insert and screw in screw -arrow-
.
Magnetic bit insert 9688 with screw (view with engine removed)
- 6.1
Check positions of the screw thread -1-
before fitting using a mirror -2-
.
- > 9687 - Insert part must be fitted on the bit insert. Then fit screw loosely, but do not tighten it.
Insert part for bit insert and torque wrench
- Complete the steps described above for each screw.
- Pull off the > 9595 - locating pin before tightening the converter screws.CAUTION: Damage to converter screws due to excessive tightening torque.
- Risk of damage to screw thread or torque converter.
Observe specified adjustment value for torque wrench. 65 Nm (48 ftlb.) on torque wrench = 85 Nm (63 ftlb.) on the screw.
- Risk of damage to screw thread or torque converter.
- Tighten screws for torque converter.
- 10.1 Get another person to continue to turn the crankshaft for each screw.
- 10.2 Check the position of the screws using a mirror. Correct the position if necessary by turning the crankshaft.
- 10.3
Tighten screws using a magnetic bit insert, insert part and torque wrench.
Make sure that the torque wrench is set to 65 Nm (48 ftlb.)!
> Tightening torque 85 (63 ftlb.) Nm --
- Insert plug for converter assembly opening. To do this, moisten the groove on the plug with water.

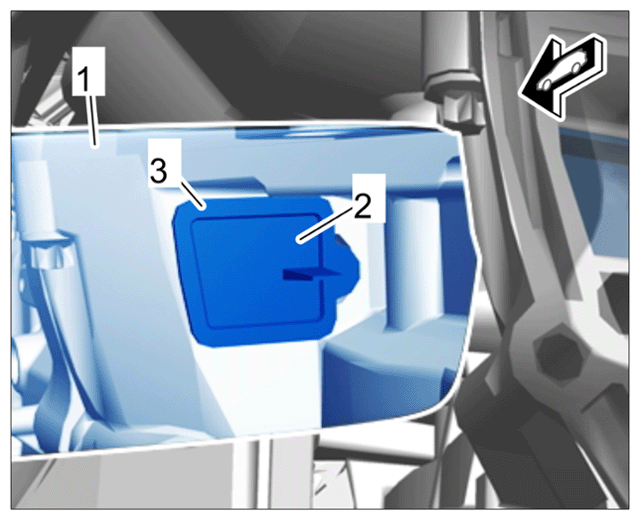

- Check the position of the stopper -2-
using a mirror -1-
. The sealing lip must make contact all the way around -3-
.
Stopper on torque converter assembly opening
- Fit primary catalytic converter with a new seal loosely on the flange.
Fit both primary catalytc converters on turbo vehicles.
- Tighten aluminum screws on the engine/transmission flange using special tool > 9768 - electronic torque wrench, 2 - 100 Nm/1.5 - 74 ftlb.-1-
.
Given the limited accessibility, tighten the two bottom screws using the tools specified in Step 15 and to the specified torque!
- 14.1 Tighten the side and upper threaded joint:
> Initial tightening 38 (28 ftlb.) Nm --
> Final tightening torque angle 90 Degree --

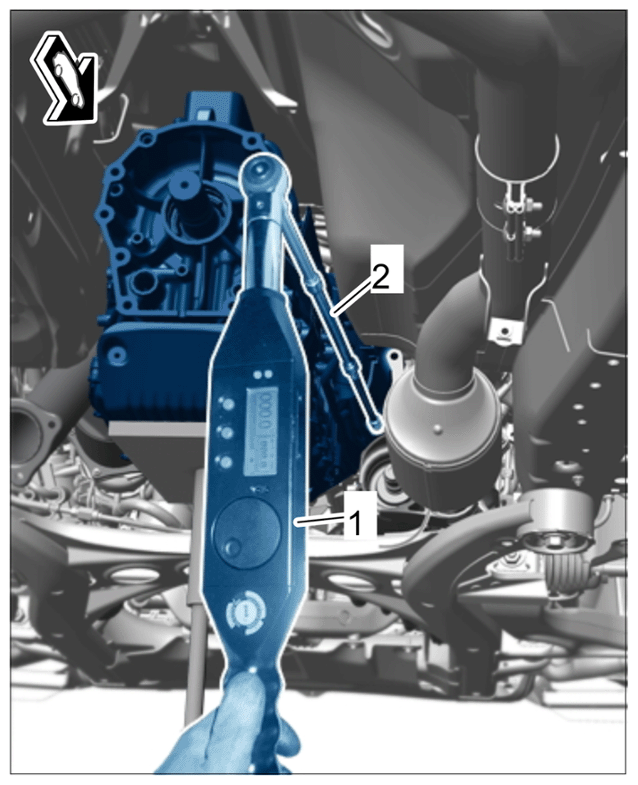

Tightening aluminum screws on engine/transmission flange
1 Electronic torque wrench 9768 2 3/8 or 1/2-inch extensions, depending on existing ratchet head - 14.1 Tighten the side and upper threaded joint:
- Tools for fitting the lower aluminum screws on the automatic transmission:

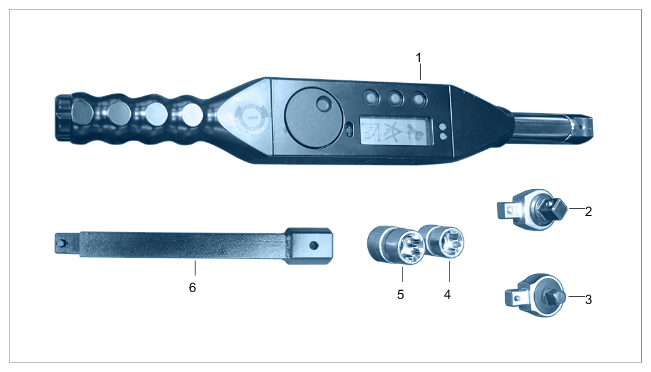

Tools for the lower aluminum screws on the automatic transmission flange
TIGHTENING TORQUE SPECIFICATIONS1 > 9768 - Electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.) 2 Ratchet head, 1/2-inch 3 Ratchet head, 3/8-inch 4 Socket-wrench insert, 3/8-inch Torx E20 5 Socket-wrench insert, 1/2-inch Torx E20 6 > 9687/1 - Insert - Tighten the lower aluminum screws -7-
on the automatic transmission: use special tool > 9687/- insert for easier access.
- 16.1 Initial tightening:
> Initial tightening 27.6 (21 ftlb.) Nm --
- 16.2 Final tightening:
> Final tightening torque angle 90 Degree --

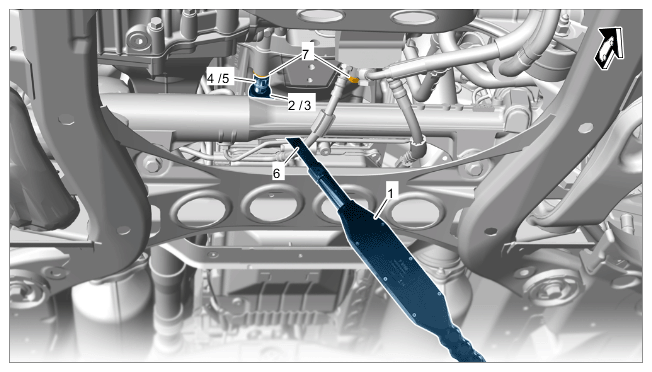

Tightening lower screws on automatic transmission
1 Electronic torque wrench 9768 2/3 Ratchet head, 3/8 or 1/2-inch 4/5 Socket-wrench insert, 3/8 or 1/2-inch, Torx E20 6 Special tool Insert 9687/1 7 Lower aluminum screws - 16.1 Initial tightening:

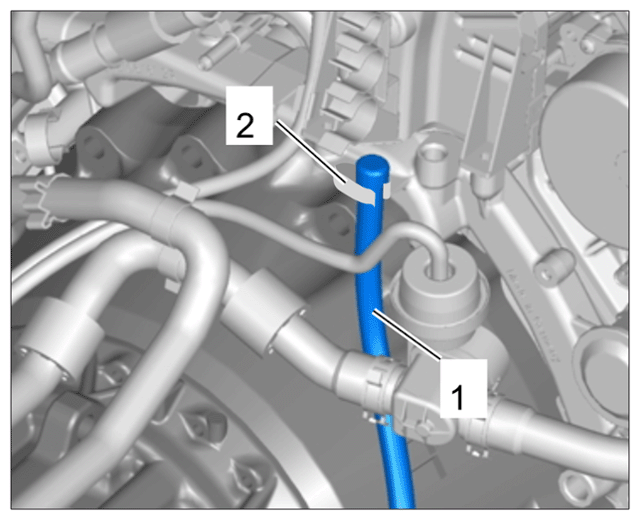

- Clip transmission vent hose -1-
into the holder -2-
.
Transmission vent hose
- Connect cable plug -1-
for pulse sender on the automatic transmission at the bottom left and check that it is seated securely.
Secure line at the retaining clip for coolant lines.
Cable plug for pulse sender on transmission
- Position holder -2-
for coolant lines on the automatic transmission and fit the screws -1-
.
Remove tie-wrap.

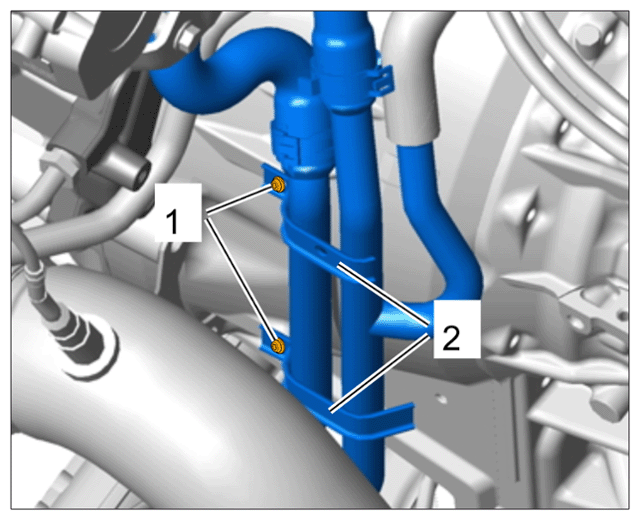

Holder for coolant lines

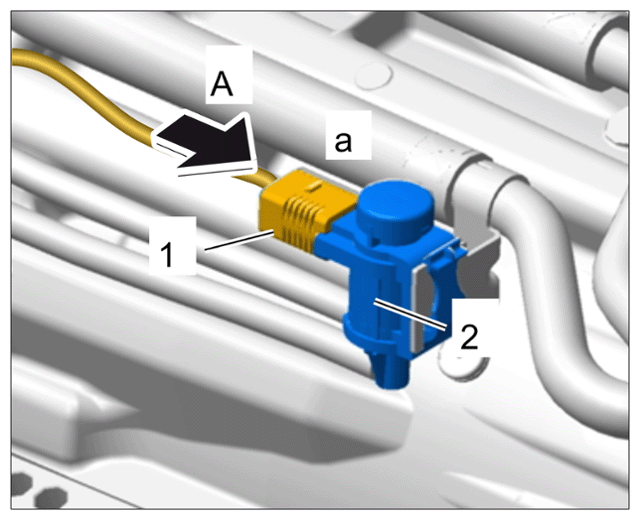

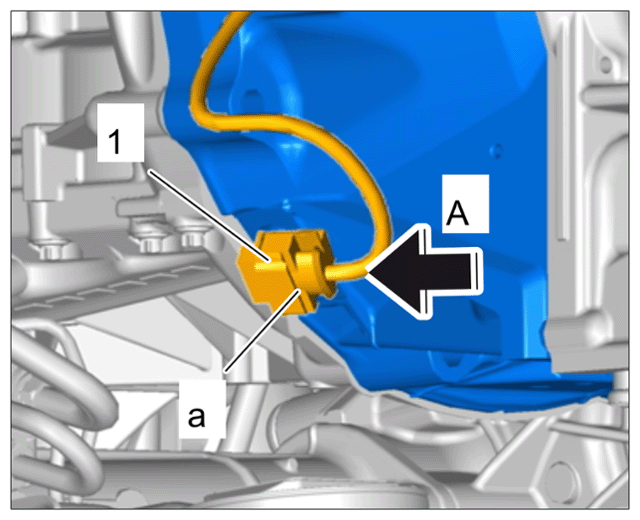

- Connect cable plug -1-
to the control valve -2-
(-arrow A-
) and check that it is seated securely.
Cable plug for control valve

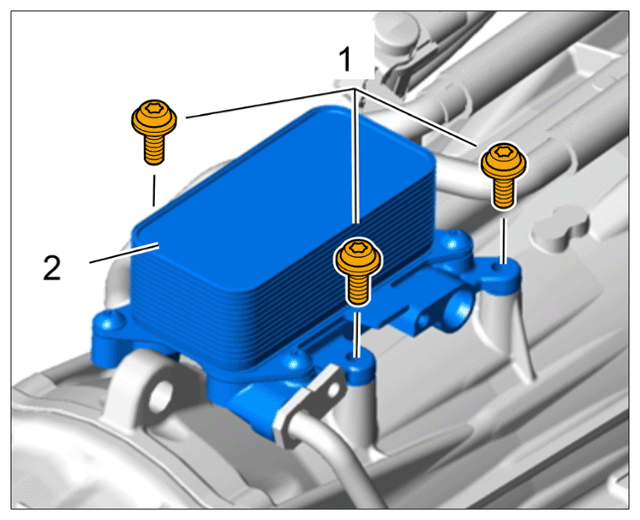

- Position heat exchanger -1-
on the automatic transmission and tighten M8 screws -2-
.
Remove tie-wrap.
> Tightening torque 20 (15 ftlb.) Nm --
ATF heat exchanger on automatic transmission, top
Information
Replace seals and O-rings.
- Fit ATF lines -2-
with new O-rings on the heat exchanger -3-
.
Ensure that the lines are seated correctly.

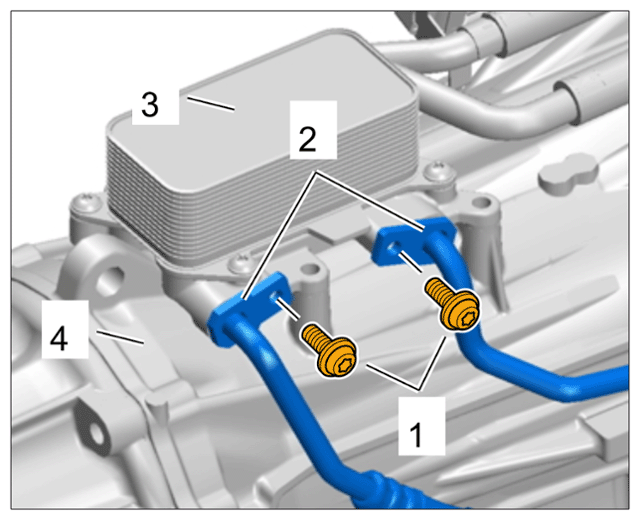

ATF lines, top
- Fit ATF lines -2-
with new O-rings on the automatic transmission -3-
.
Ensure that the lines are seated correctly.
- 23.1
Fit and tighten M8 fastening screw -1-
.
> Tightening torque 20 (15 ftlb.) Nm --
Mounting for ATF lines, bottom
- 23.1
Fit and tighten M8 fastening screw -1-
.

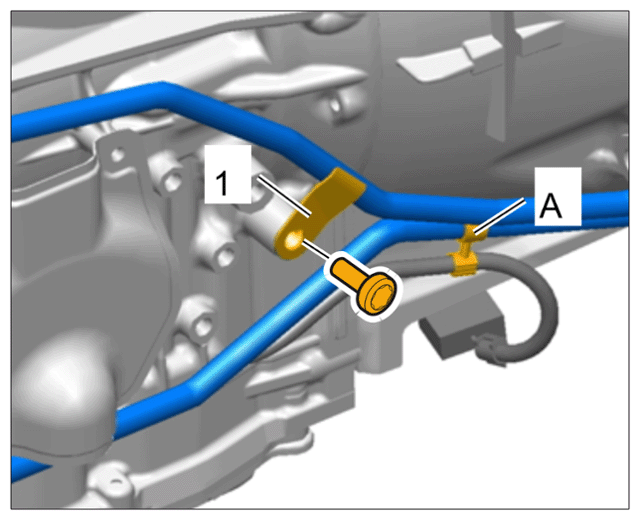

- Secure holder -1-
for ATF lines to the front of the automatic transmission.
- 24.1
Tighten M8 fastening screw.
> Tightening torque 23 (17 ftlb.) Nm --
- 24.2 Clip in wire harness on ATF line -A- .

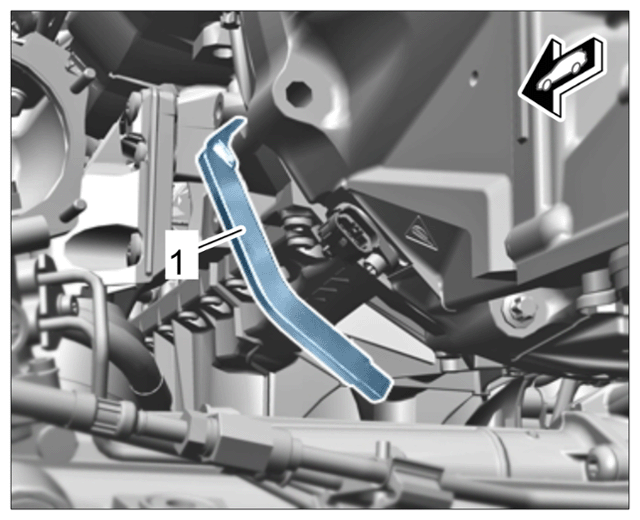

Holder for ATF lines at front of automatic transmission
- 24.1
Tighten M8 fastening screw.
- Fit heat shield.
- 25.1
Tighten M6 screws -1-
on the heat shield -2-
.
> Tightening torque 15 (11 ftlb.) Nm --

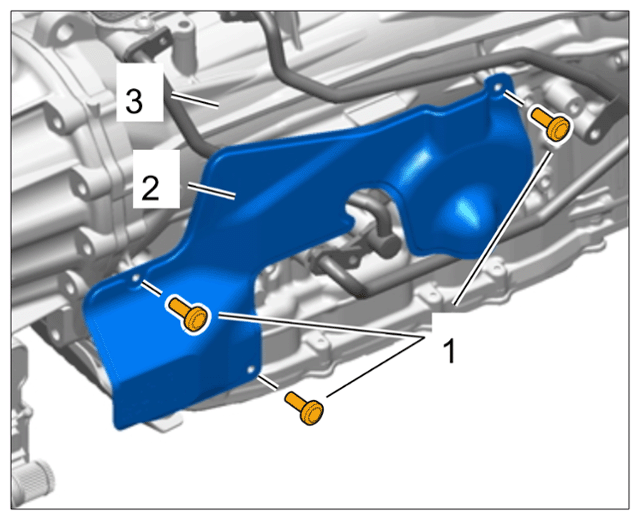

Heat shield for automatic transmission
- 25.1
Tighten M6 screws -1-
on the heat shield -2-
.

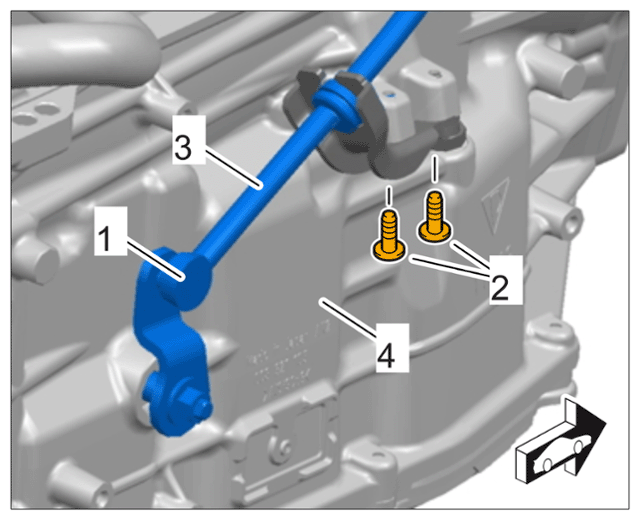

- Fit selector lever cable -3- on automatic transmission.
