Component Arrangement

On the Cayenne, two front body acceleration sensors are installed on the wheel housings in the engine compartment and one rear body acceleration sensor is installed at the right. The rear body acceleration sensor (item 7) is integrated into the levelling system/PASM control unit (item 6).

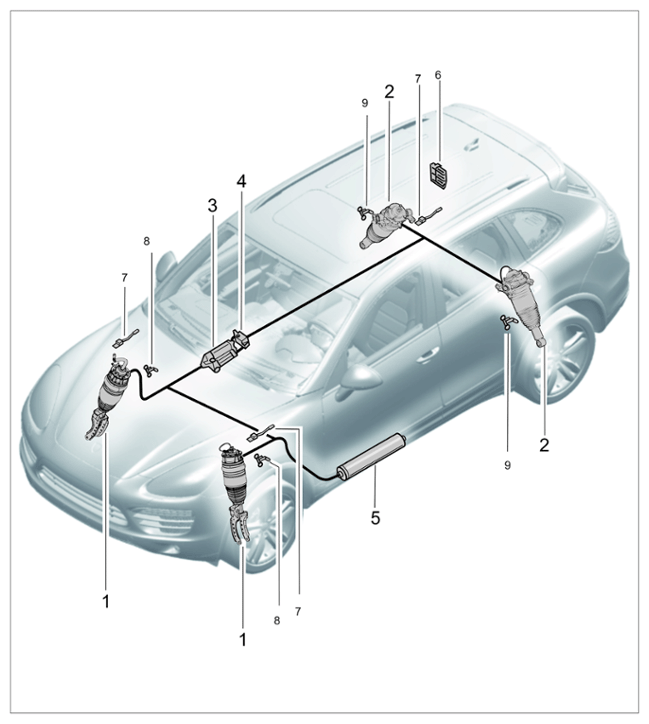

Fig 1: Air Suspension Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component arrangement - air suspension
