Installing Front Spring Strut (Air Springs)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dimension 1 - centre of wheel to lower edge of wing (rear axle shown)

• All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in

  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT. Always observe the following points!

• On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester.

  > 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM

• Screws and nuts are Geomet-coated and must not be greased.

Information

• Check the torque on the pressure control valve.

Information

• Do not remove air-spring strut from transport packaging until it has been filled. This will prevent damage to the inner bellows.
• During assembly work, make sure that there are no pressure marks on the protective boot of the air-spring strut.

Information

• The air-spring strut must only be filled with the approved gasses, nitrogen or oil-free compressed air.
• In some cases, up to 11 bar overpressure (upper tolerance, spring strut depressurized) is required to open the pressure control valve.
• Fill the air-spring strut using several individual pressure shots. Filling the air with individual pressure shots will prevent the air-spring strut from being filled with too much overpressure.
• Do not fill the air-spring strut with overpressure of more than 2.5 bar.

Information

Always check for correct insertion depth of plug connections for the compressed air hoses:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

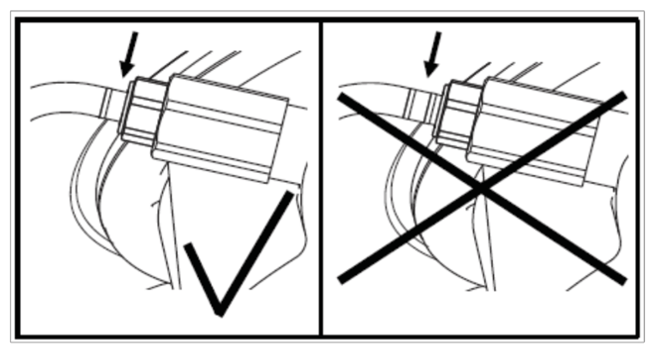

Checking color markings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

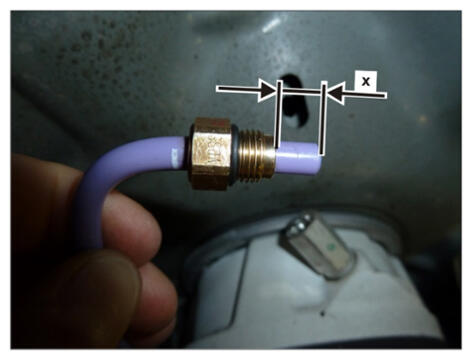

Checking dimension

• Only one color marking (one white ring) must be visible on the connection.
• If two color markings (two white rings) are visible, the correct insertion depth has not been reached.
• The dimension -x- from the end of the compressed air hose to the push-on connector must be at least 8.0 mm.

Information

• When working on the air-spring strut, make sure that the air-spring strut does not become twisted.
• The air-spring struts are pre-filled to approx. 2.5 bar overpressure ex-works. If a new air-spring strut is installed, air can diffuse (escape) from the bellows of the air-spring strut as a result of storage times of varying duration. If the air-spring strut is removed from the transport packaging and installed without being filled, the bellows can fall into folds, thereby damaging the air-spring strut. For this reason, all air-spring struts must be re-filled prior to use. The procedure is described in detail in the course of the repair instructions.

  > 4301IN FILLING SPECIFICATION FOR AIR-SPRING STRUT

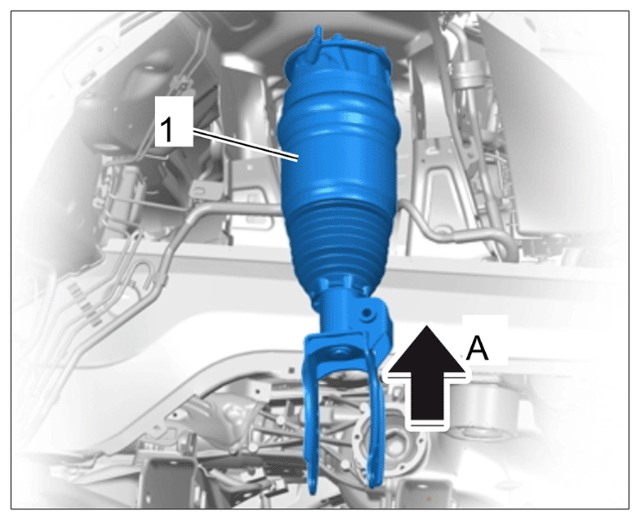

1. Insert the spring strut -1-  into the vehicle -A-  .

   Check that the fastening screws are seated correctly.

   Guide the wire harness through the opening in the spring strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing spring strut

2. Remove the protection cap at the top of the spring strut if necessary.

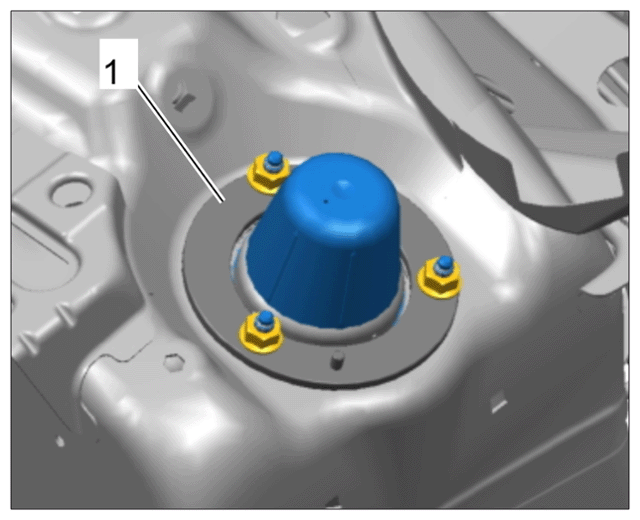

3. Check that the pull-ring -1-  is seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pull-ring seating (shown with protection cap)

4. If installed:

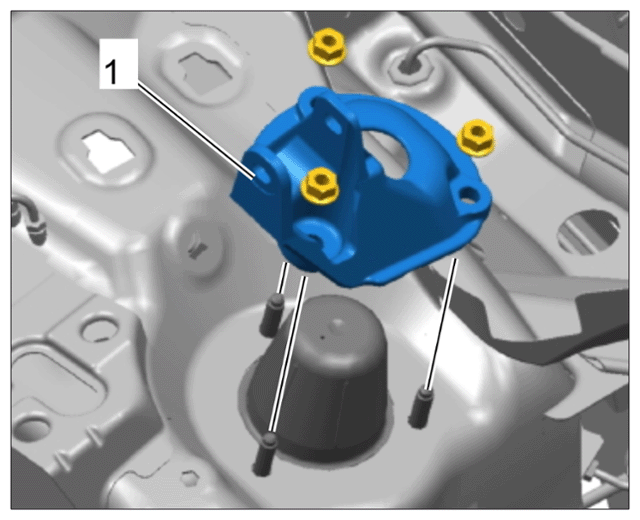

   Check that the torque support holder -1-  is seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing torque support holder (shown with protection cap)

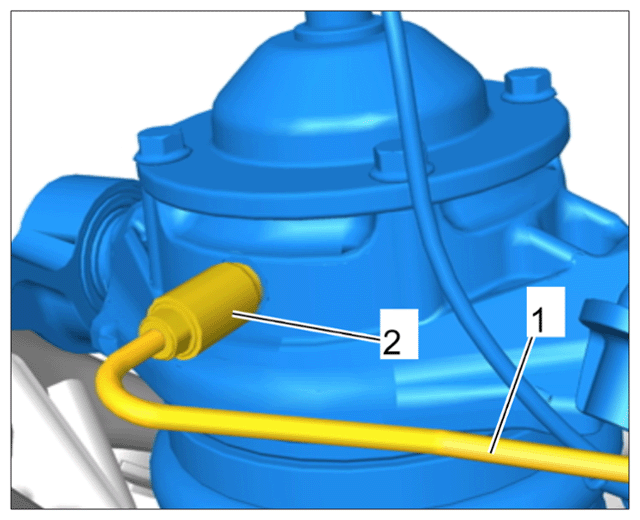

5. Fit pressure line -1-  on the pressure control valve -2-  using > T10212 - insert tool and tighten it. > Tightening torque 3 Nm (2.2 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure line for rear spring strut

6. Clip pressure line into the retaining devices.

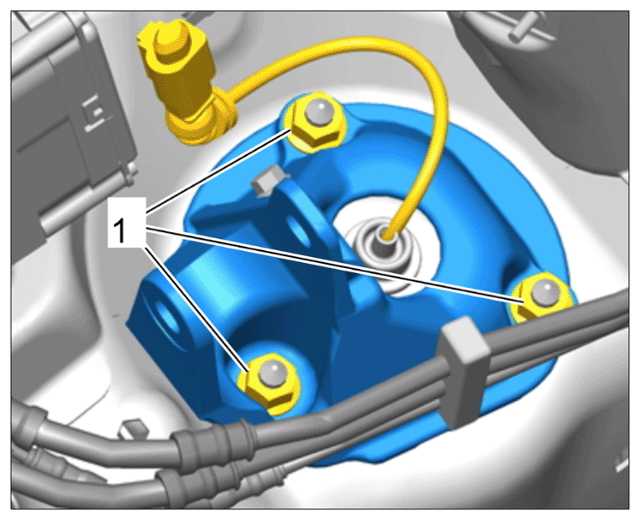

7. Screw in and tighten fastening nuts -1-  on upper spring strut. > Tightening torque 60 Nm (44 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper spring strut (air spring) mounting

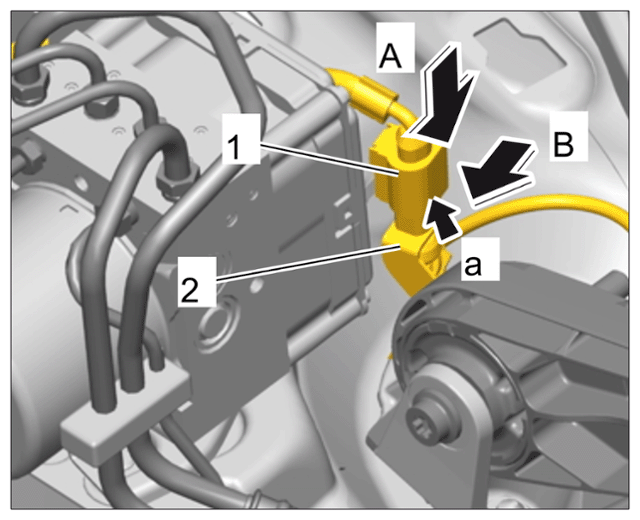

8. Plug in electric plug connection -1-  for the spring strut -A-  and lock it -a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing plug connection for spring strut

9. Clip wire harness into the holder -2-  (-B-  ).
