Removing Levelling System Control Unit

G16318703

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

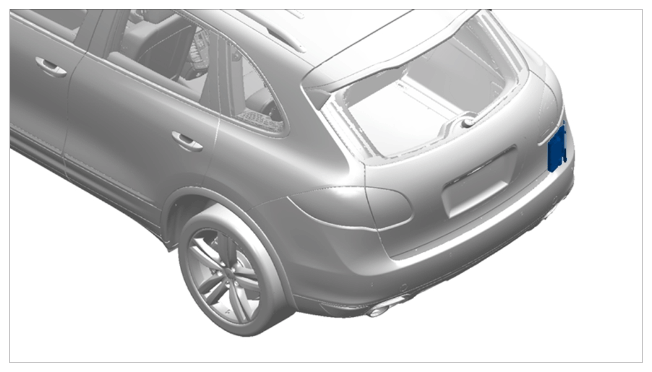

Installation position of levelling system control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Unscrew three fastening nuts -1- and remove control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control unit
Release electric plug connection -1- (-a- ) and disconnect it -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

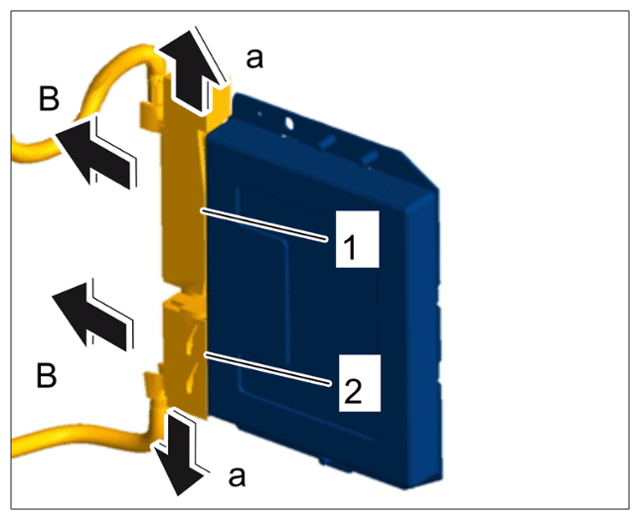

Releasing and disconnecting plug connections
Release electric plug connection -2- (-a- ) and disconnect it -B- .
