Removing Pdcc Control Unit

The PDCC control unit is located under the right rear seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

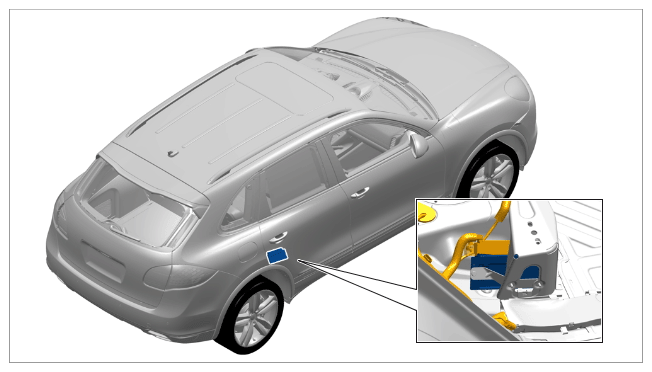

Installation position of PDCC control unit

1. Switch off ignition and remove ignition key.

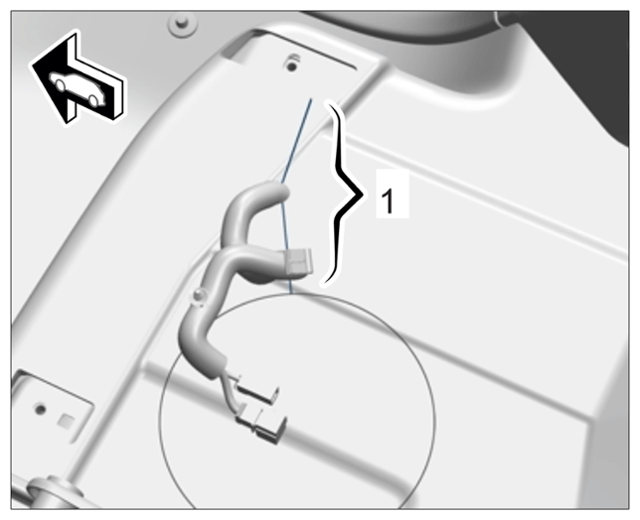

2. Cut the carpeted floor in area -1-  using a carpet knife and fold it to one side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting carpeted floor

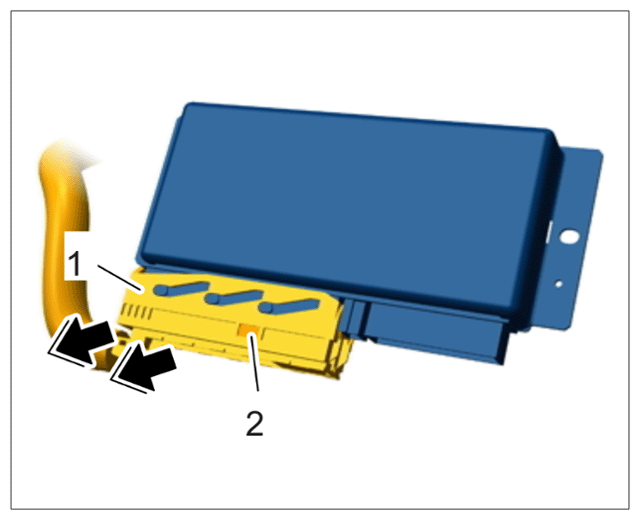

3. Disconnect connector -1-  from the PDCC control unit.
   1. 3.1 Release connector -2-  .
   2. 3.2 Pull connector to one side -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connector

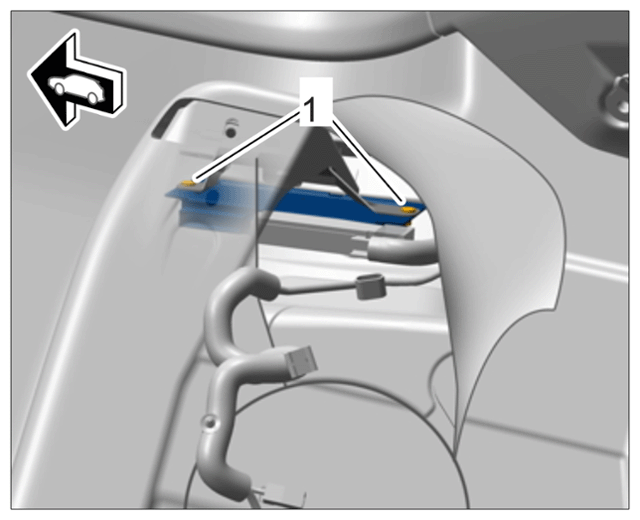

4. Loosen fastening nuts -1-  on the PDCC control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for control unit

5. Remove PDCC control unit.
