Removing Rear-Axle Valve Block

NOTE: Incorrect line routing

Risk of damage to lines and hoses
Malfunction and fault memory entry on control unit
→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Information

Before starting to work on the PDCC system, always clean the underbody or at least clean the system components you will be working on. Ensure absolute cleanliness at all times. In other words:

Clean the system components to be removed using a power washer, for example. Ensure that the high-pressure spray is at least 50 cm away from the component (risk of damage to electric lines, connectors and contacts).
Before loosening the hydraulic connections, the areas around the connections must also be cleaned carefully (e.g. using a brush and/or a lint-free cloth).
If you intend to use the component again, the openings must be closed off immediately using suitable stoppers.
If you are using new components, the stoppers must only be removed immediately before fitting.

Information

If a component is replaced, the reservoir must always be replaced as well.

> 430955 REPLACING RESERVOIR (PDCC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

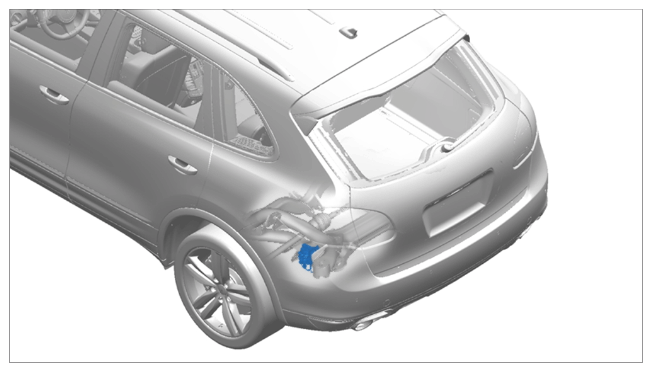

PDCC valve block on rear axle

Remove valve block cover -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

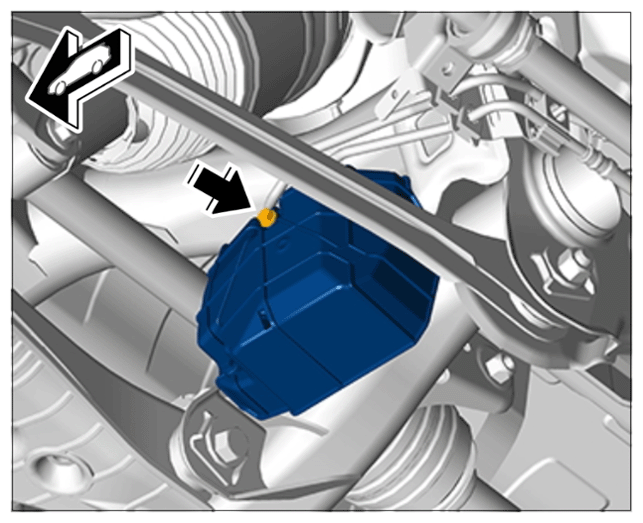

Rear-axle valve block cover, PDCC
Unclip wire harness -1- for the valve block -3- from the bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

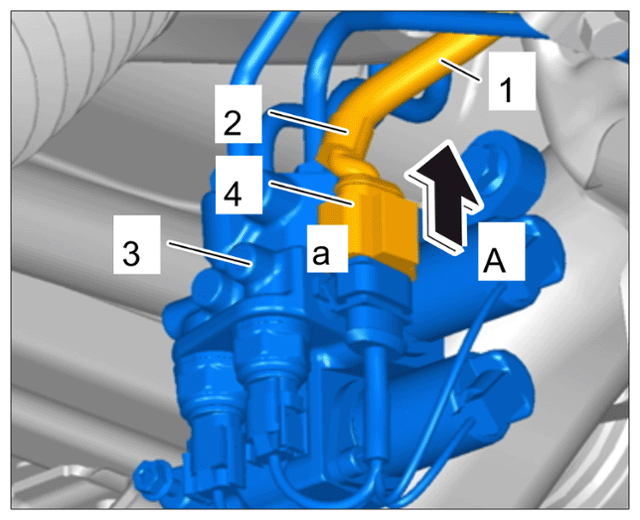

Electric plug connection
Release electric plug connection -4- (-a- ) and disconnect it -A- .
Remove hydraulic lines -1- on the valve block -2- on the rear axle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

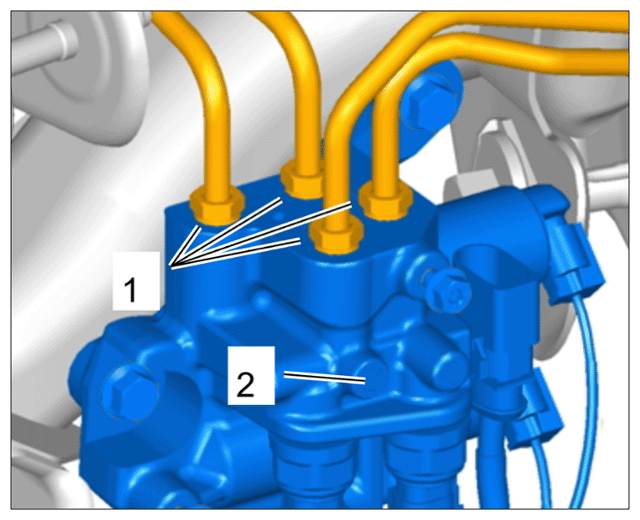

Hydraulic lines on rear-axle valve block
Unscrew fastening screws -1- on the valve block -2- and carefully remove the valve block.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

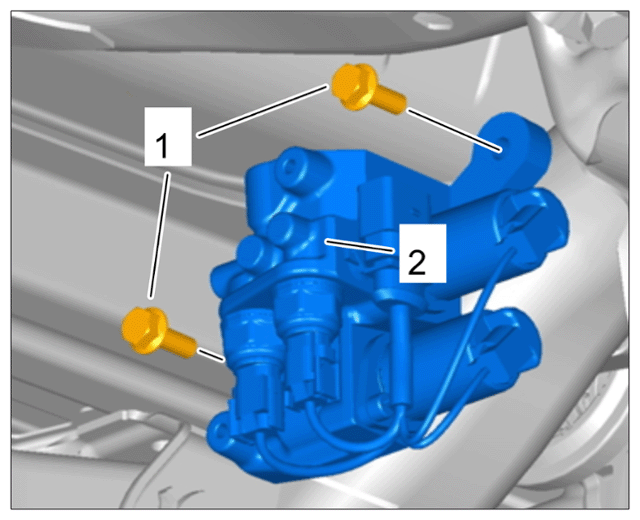

Removing valve block
When replacing the valve block wiring harness: Number the valves and pressure sensors (using a felt-tip pen, for example). Push the insulator back slightly and assign the cable colors to the corresponding valves/pressure sensors.
Remove wiring harness. Disconnect connectors on the valves/pressure sensors. Fit wiring harness on the new valve block.
