Removing Steering Wheel

Turn wheels to straight-ahead position.
Information
- Always release and disconnect the plug connections for the steering wheel heating and airbag cables before removing the steering wheel.
Release and disconnect plug connection for airbag wire harness -1-
If the vehicle has a heated steering wheel: Release and disconnect plug connection for steering wheel heating -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

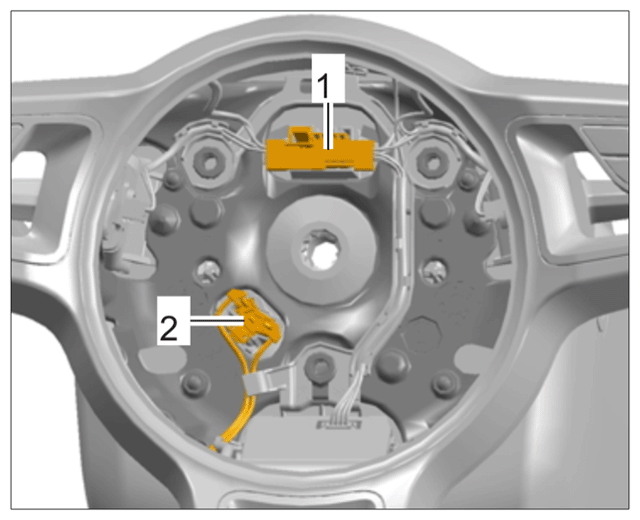

Disconnecting plug connections

Information

Immediately after unscrewing the screw and before removing the steering wheel, always mark the position of the steering wheel between the steering wheel and steering column -Arrow- .

This ensures that the steering wheel will be fitted at the same position on the steering column again during re-installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

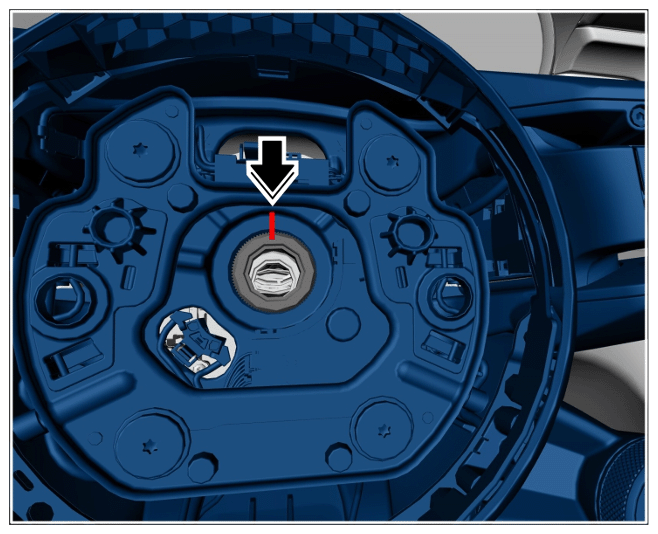

Position marking on steering wheel with respect to steering column
Unscrew screw -1- using > Nr.32 - multiple-tooth socket-wrench insert

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

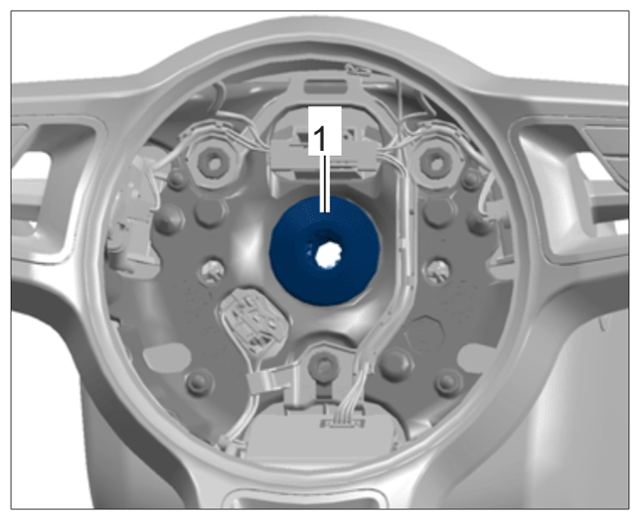

Multiple-tooth screw
Mark the position of the steering wheel.
Remove steering wheel.
