Installing Steering Wheel

Information

• Turn wheels to straight-ahead position and observe the markings you applied earlier!
• Always replace the multiple-tooth screw!

1. Installation is performed in reverse order.

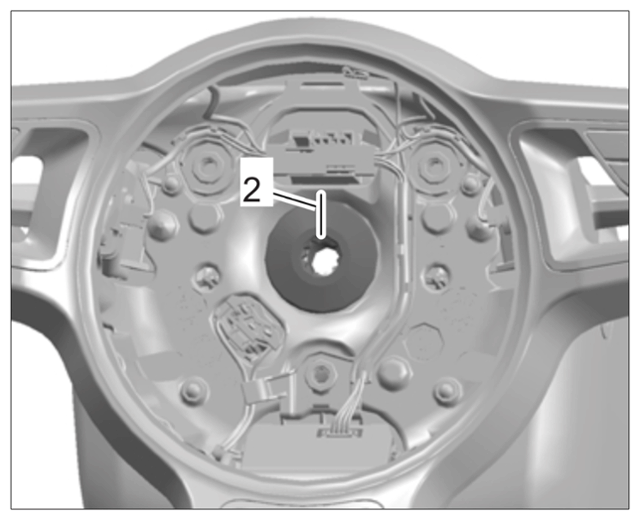

2. When fitting the steering wheel, make sure that the marking -2-  between the steering wheel and steering column is aligned.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking

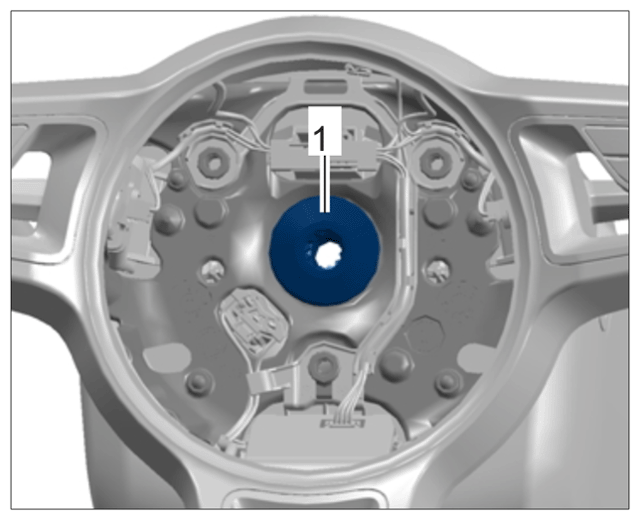

3. Tighten screw -1-  . > Initial tightening 30 (22 ftlb.) Nm  > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Multiple-tooth screw
