Removing Tie Rod

Information

The pictures shown in this document may differ from the original.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

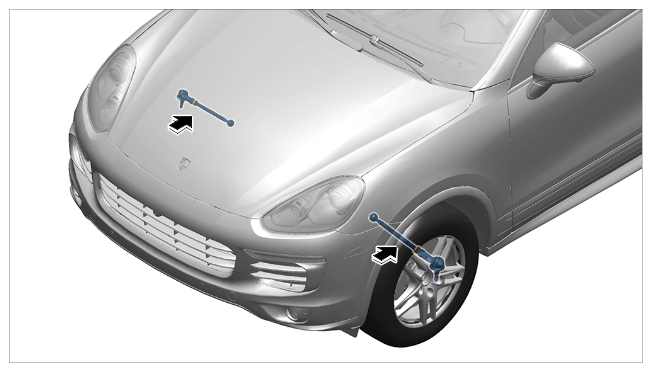

Installation position

To make it easier to remove the tie rod, swivel the relevant wheel bearing housing so that the tie rod is fully extended.

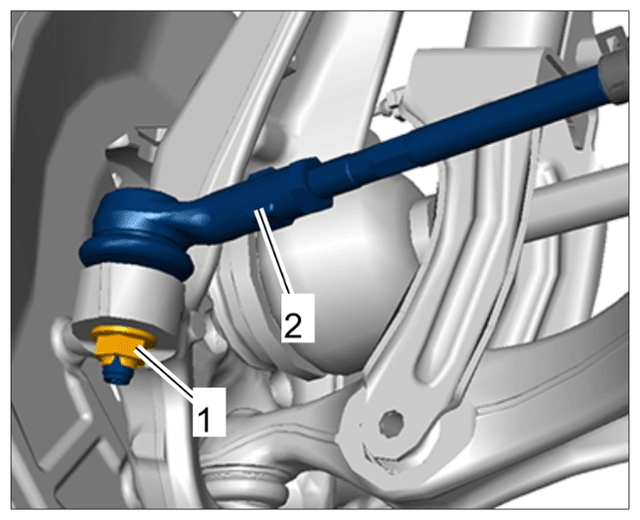

Unscrew fastening nut -1- from the ball pin for the tie-rod ball -2- until it is flush with the thread of the ball pin.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball on wheel bearing housing
Press tie-rod ball off the wheel bearing housing. > Pressing off tie rod When pressing it off, make sure not to damage the rpm sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing off tie rod

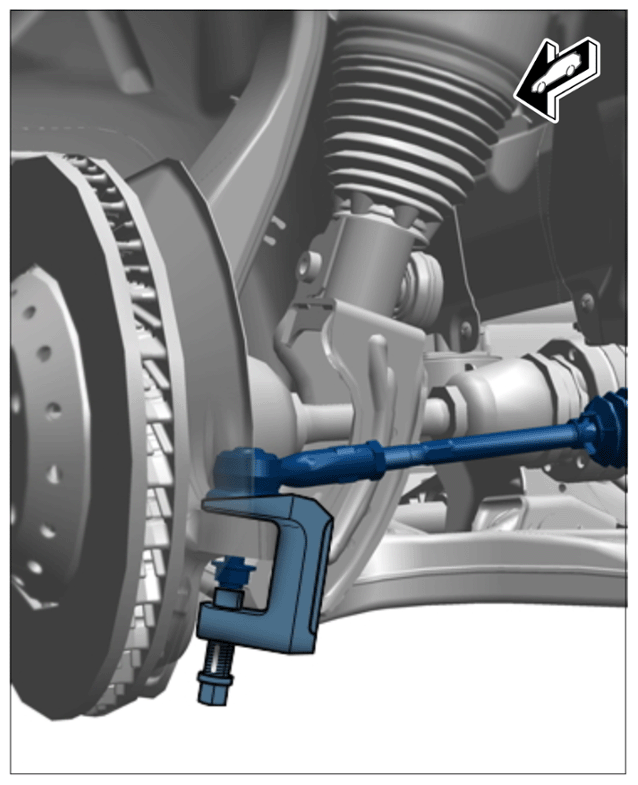

1. 3.1 Position > T10187 - ball joint puller under the ball pin and fit it on the fastening nut.
2. 3.2 Press tie-rod ball out of the tapered end of the wheel carrier using > T10187 - ball joint puller . Screw in hexagon on the > T10187 - ball joint puller until the tie-rod ball comes out of the tapered end of the wheel carrier.
Screw fastening nut -1- off the ball pin of the tie-rod ball -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball on wheel bearing housing
Right tie rod:

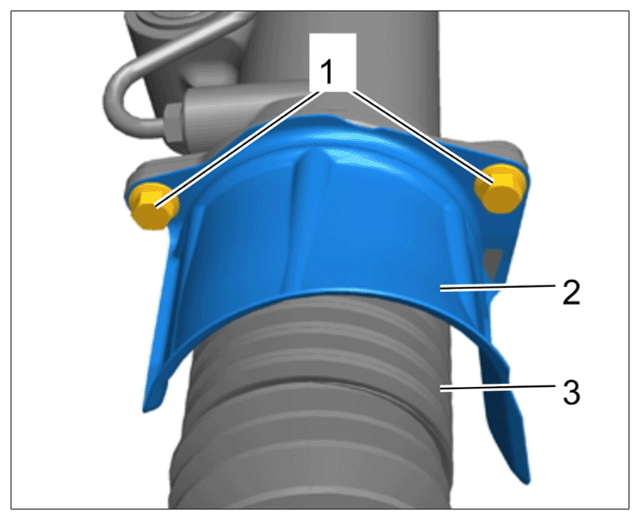

Remove fastening screws -1- on the heat shield -2- near the bellows -3- for the right tie rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for right tie rod
Pull out heat shield -2- .

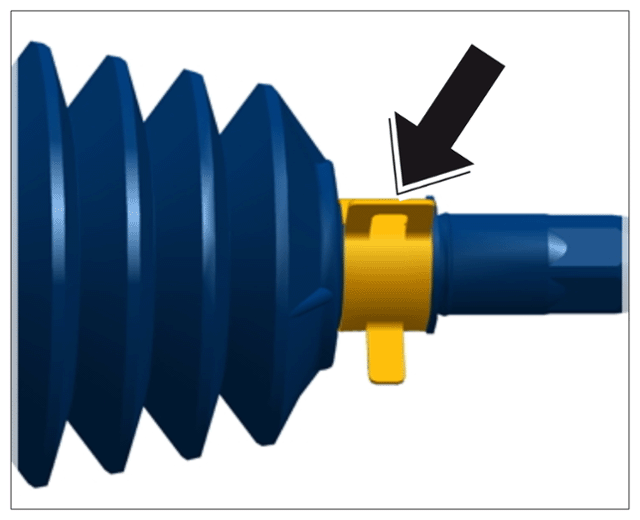

Loosen the outer clamp -arrow- on the bellows using > VAS 6890 - Spring Band Clamp Pliers .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer clamp

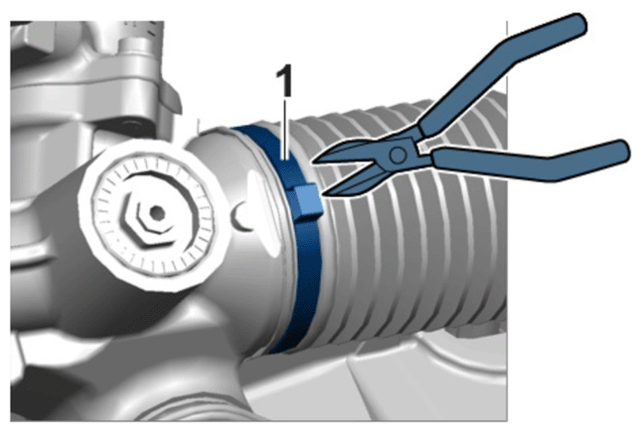

Loosen the inner clamp -1- on the bellows using suitable pliers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening inner clamp

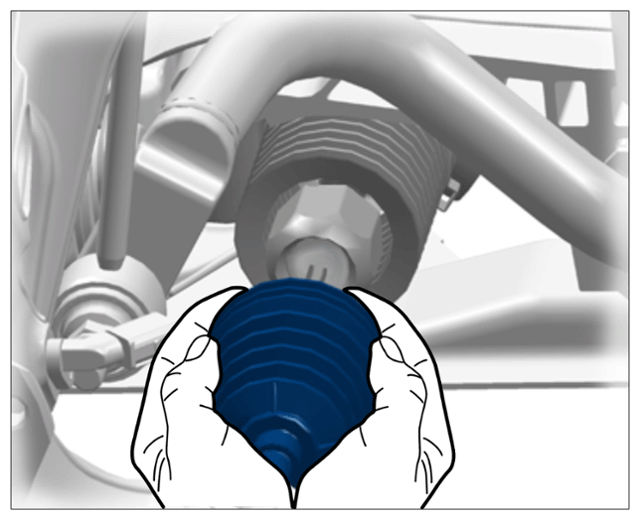

Carefully pull the bellows outwards until the axial joint is accessible. > Pulling out bellows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out bellows

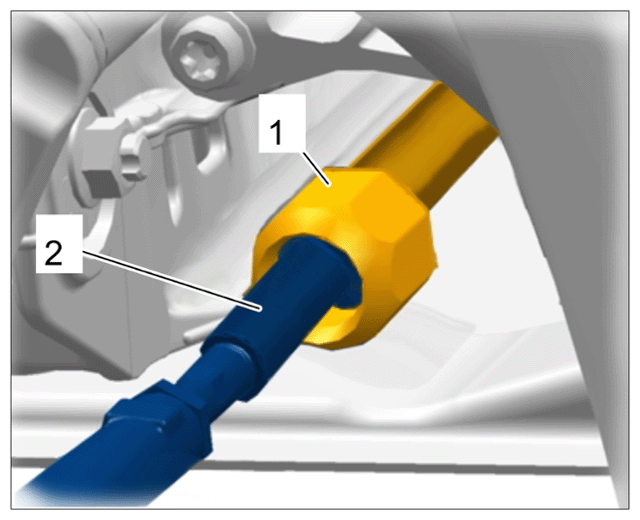

Unscrew octagon -1- on the ball joint of the tie rod -2- from the rack-and-pinion using > Nr.95-2 - V.A.G 1923 open-jawed wrench insert .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening ball joint
