Removing Control Unit For Height Adjustment

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit
    1. Remove the ignition key and switch off load before disconnecting or removing load.
  1. Unlock and disconnect electric plug connection -a-  .

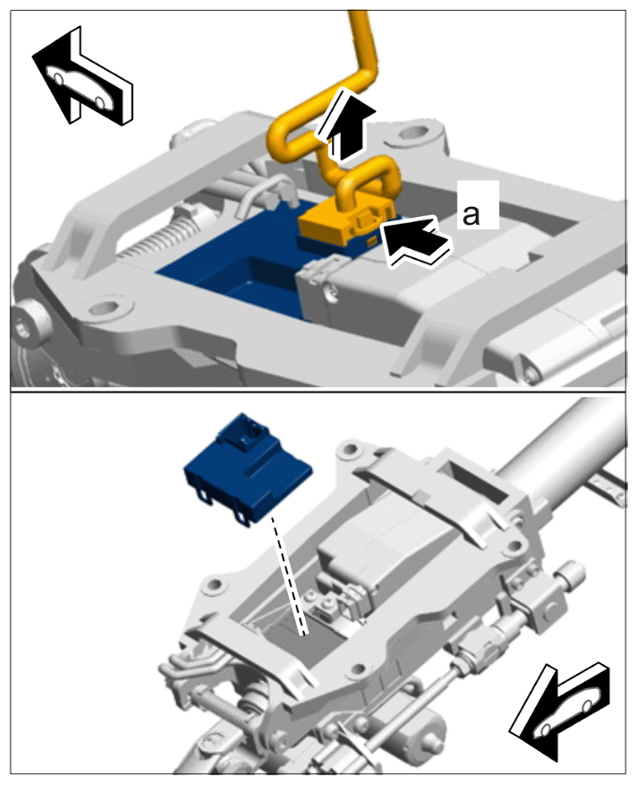

    G16329111Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing control unit

  2. Unscrew and remove fastening screw.
  3. Lift height adjustment control unit and pull it out of the steering column.
