Installing Control Unit For Height Adjustment

  1. Place height adjustment control unit in steering column.
  2. Secure height adjustment control unit using the fastening screw.

    > Tightening torque 3.6 (2.6 ftlb.) Nm

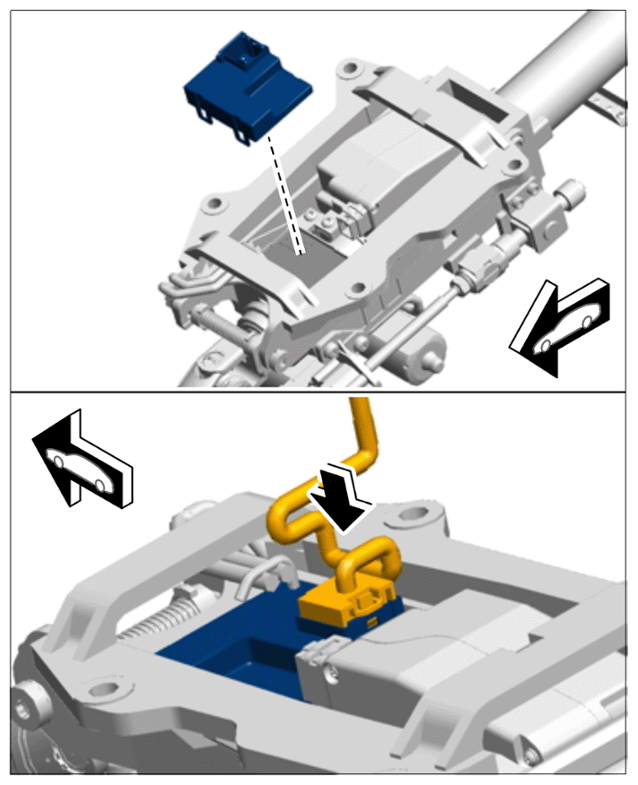

    G16329112Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing control unit

  3. Plug in electric connector at the control unit until it engages securely.
