Disassembling Steering Wheel

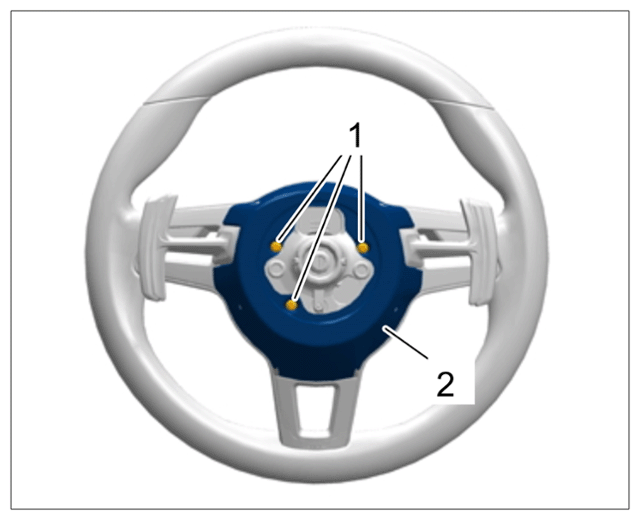

1. Unscrew fastening screws -1-  on the back cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for back cover

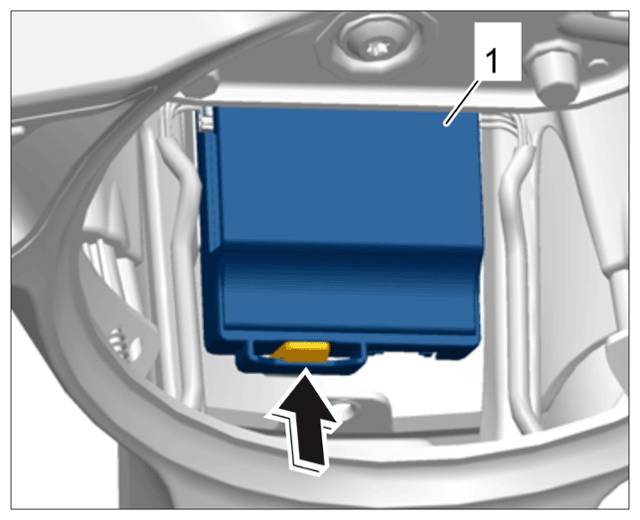

2. Release control unit -1-  at position -arrow-  and pull it forward slightly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for control unit

3. Remove back cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for back cover

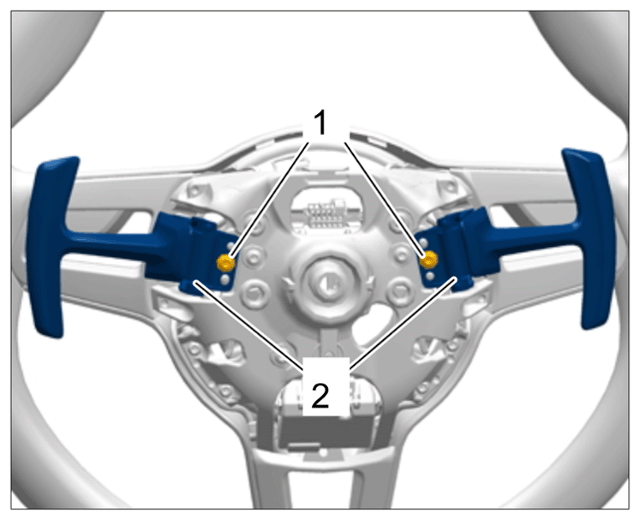

4. Unscrew fastening screws -1-  for the paddles -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for paddles

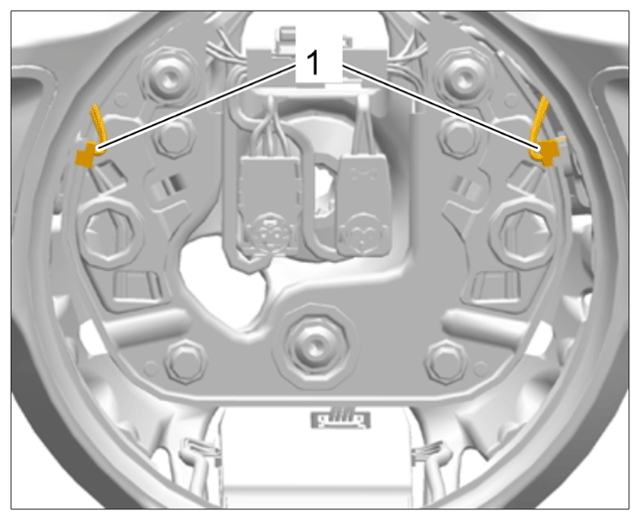

5. Release and disconnect electric plug connection -1-  for the paddles.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector for paddles

6. Lift paddles -2-  up and off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for paddles

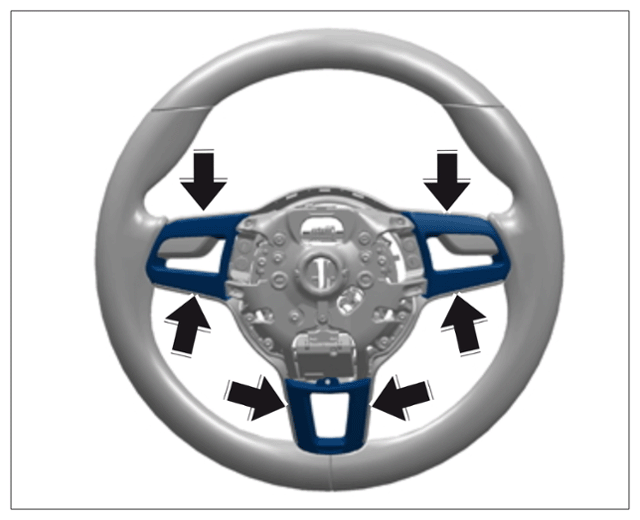

7. Unclip rear trims at positions -arrows-  using a suitable thin tool (e.g. feeler gauge).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear trims

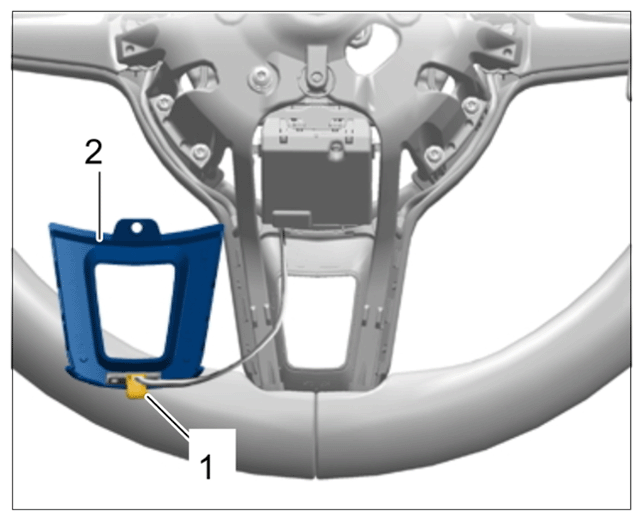

8. Only for heated steering wheel: Release electric plug connection -1-  from the rear trim at the 6 o'clock position -2-  and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector for heated steering wheel switch

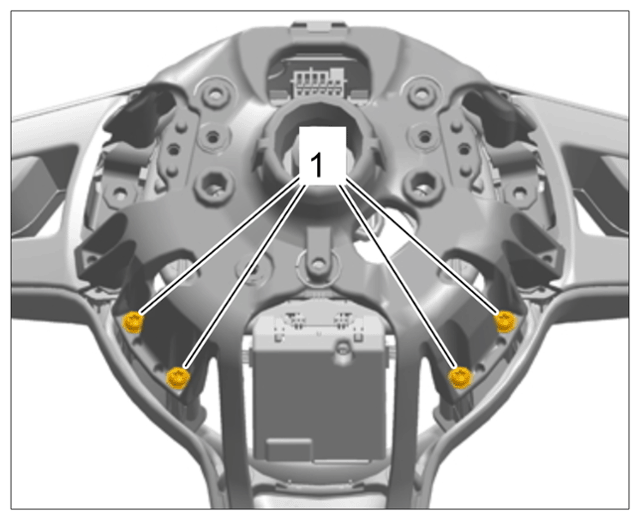

9. Unscrew fastening screws -1-  on the main cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for main cover

10. Lift main cover -1-  straight up.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main cover

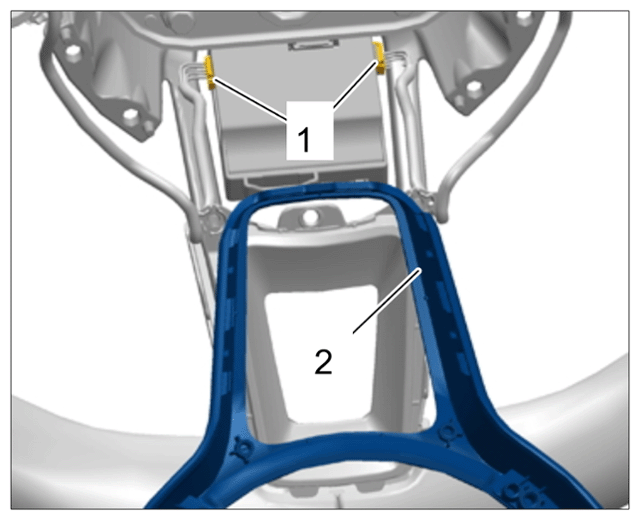

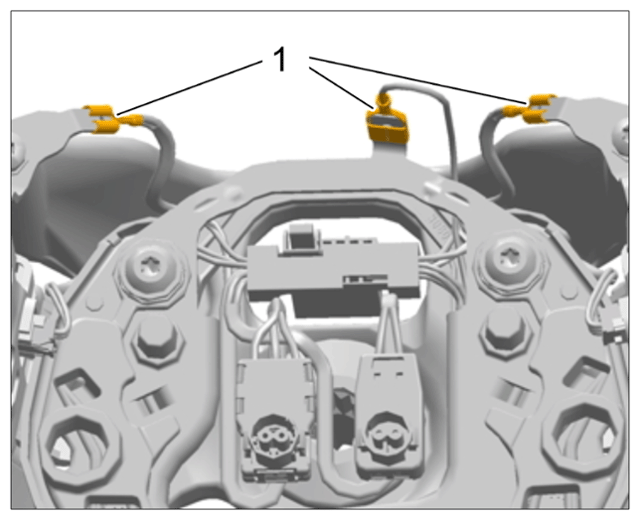

11. Release and disconnect electric plug connections -1-  and remove main cover -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for multi-functional switch on control unit

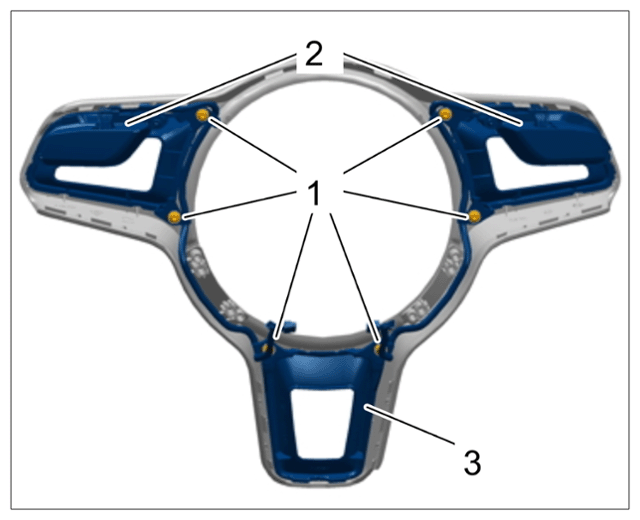

12. Unscrew fastening screws -1-  for the multi-functional switch -2-  and front trim -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for multi-functional switch and front trim on main cover

13. Remove multi-functional switch -2-  with cables and front trim -3-  .
14. Disconnect connector -1-  from connector lugs.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector contacts

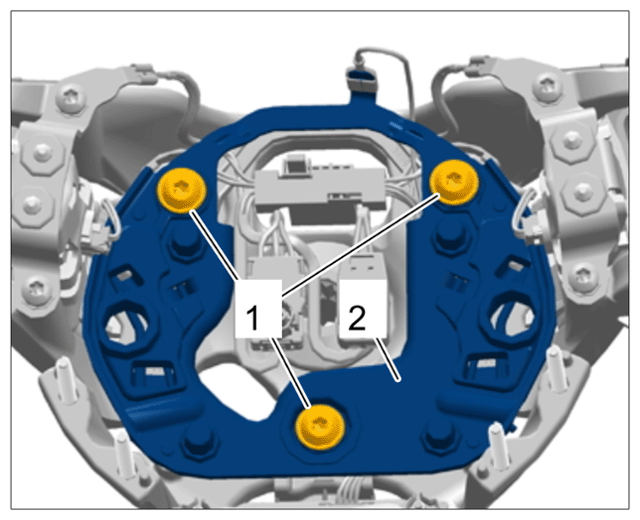

15. Unscrew fastening screws -1-  on the contact bridge -2-  and remove contact bridge.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for contact bridge

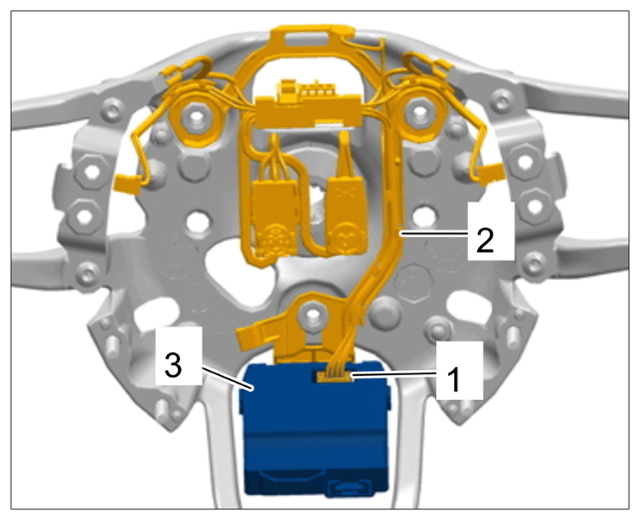

16. Release electric plug connection -1-  for wire harness -2-  from the control unit -3-  and disconnect it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for wire harness on control unit

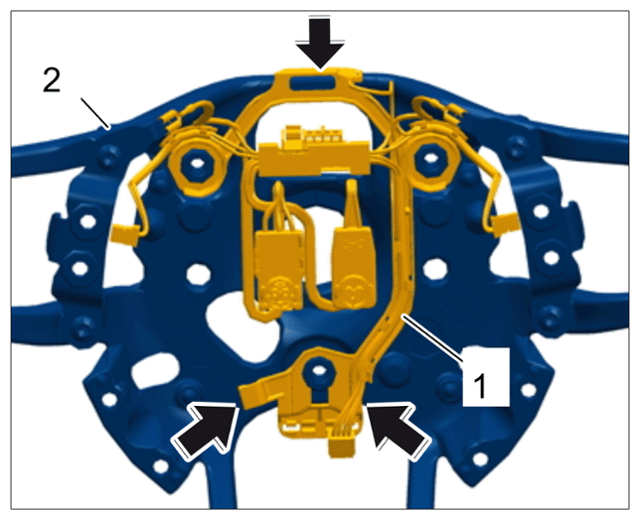

17. Release wire harness -1-  at positions -arrows-  from the steering wheel skeleton -2-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for wire harness
