Removing ELV Control Unit

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit
    1. Remove the ignition key and switch off load before disconnecting or removing load.

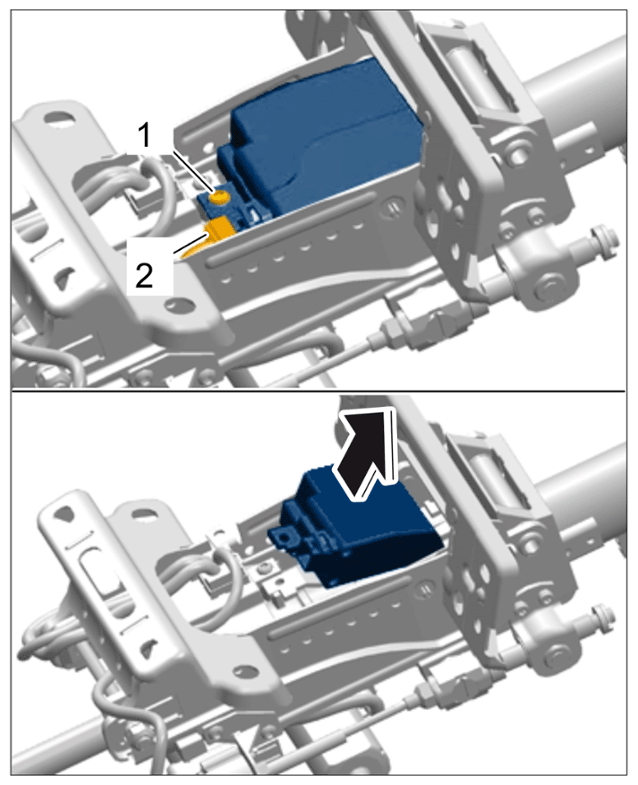

  1. Release and unplug electric plug connection -2-  .
  2. Unscrew fastening screw -1-  .
    G16329044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ELV control unit

  3. Lift the ELV control unit and pull it out of the steering column -arrow-  .
