Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Descri... | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Pulsation damper | Tightening torque | 41 (30 ftlb.) Nm | + 4 (3 ftlb.) Nm |
Model year
From 2010 To 2018
Model Line:
Cayenne (92A)
Concerns:
Replacing hydraulic pump for steering
Information:
Following a change in hydraulic pump supplier, new hydraulic pumps no longer come installed with a pulsation damper. For this reason, the pulsation damper must be removed from the old hydraulic pump and installed on the new hydraulic pump.
Component Overview:

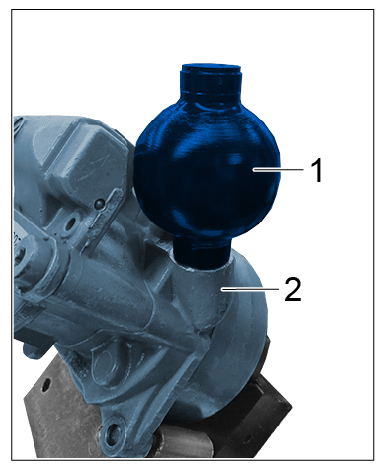

Hydraulic pump with pulsation damper
| 1 | Pulsation damper (no longer supplied with the hydraulic pump) |
| 2 | Hydraulic pump |
Action required:
Remove pulsation damper from the old hydraulic pump and install it on the new hydraulic pump.
Parts Info:
Overview of affected components:
| Part No. | Designation |
|---|---|
| 95831402201 | Tandem vane type pump Includes sealing ring for pulsation damper |
| 95831402211 | Tandem vane type pump Includes sealing ring for pulsation damper |
