Removing Vacuum Line For Brake Booster

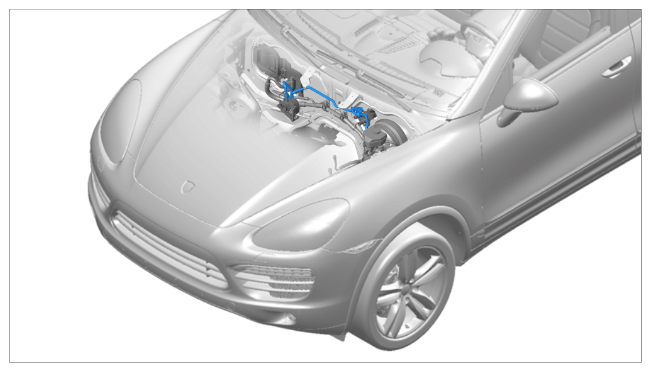

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of vacuum line for brake booster

1. Carefully pull the vacuum line -1-  out of the brake booster -2-  .

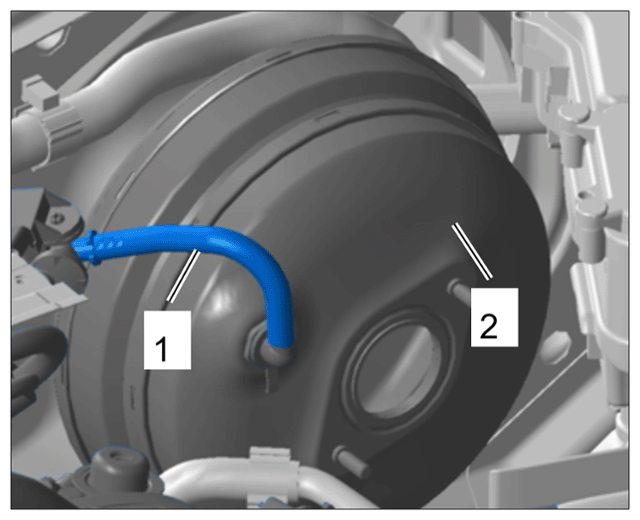

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum line on brake booster (shown without brake master cylinder)

2. Release electric plug connection -1-  from the vacuum control valve -2-  (-a-  ) and pull it off -A-  .

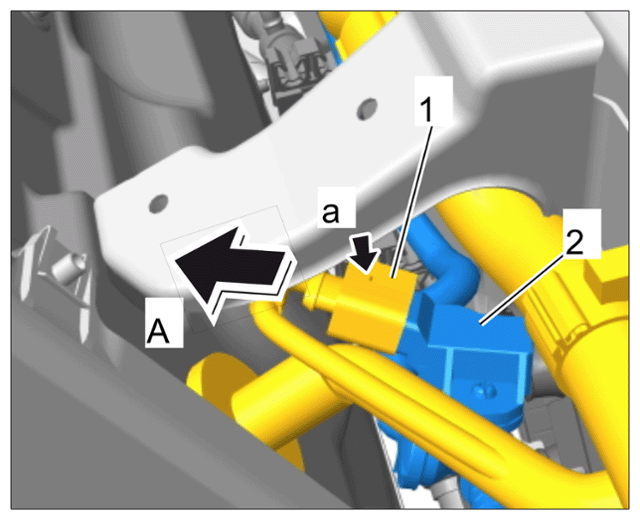

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on vacuum control valve

3. Unclip vacuum line -1-  from the retaining clip -2-  in a downward direction.

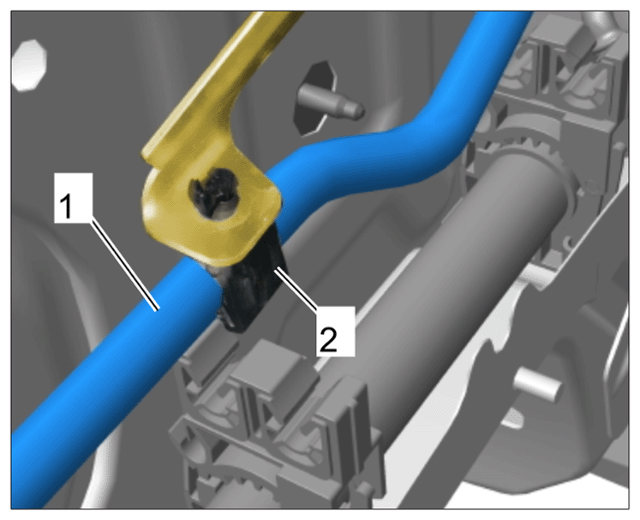

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip on brake booster vacuum line

4. Carefully pull the vacuum line -1-  with the rubber boot -2-  up out of the bulkhead -3-  .

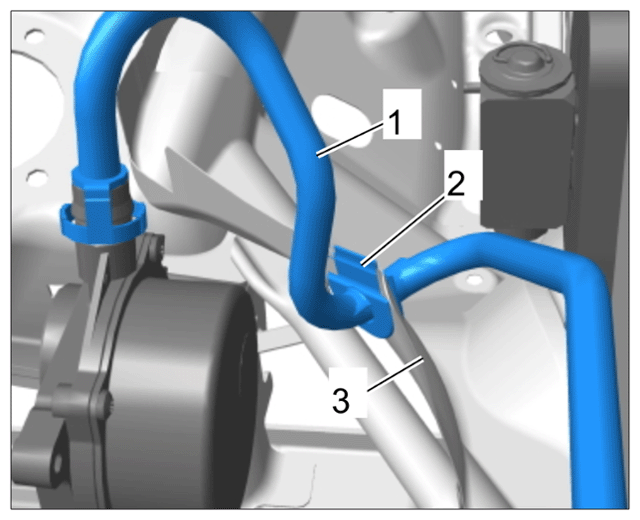

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber boot on vacuum line for brake booster

5. Carefully guide the vacuum line to the right and out of the plenum panel.
6. Loosen clamp -1-  on vacuum line -2-  for brake booster at the vacuum pump -3-  .

   Pull off vacuum line.

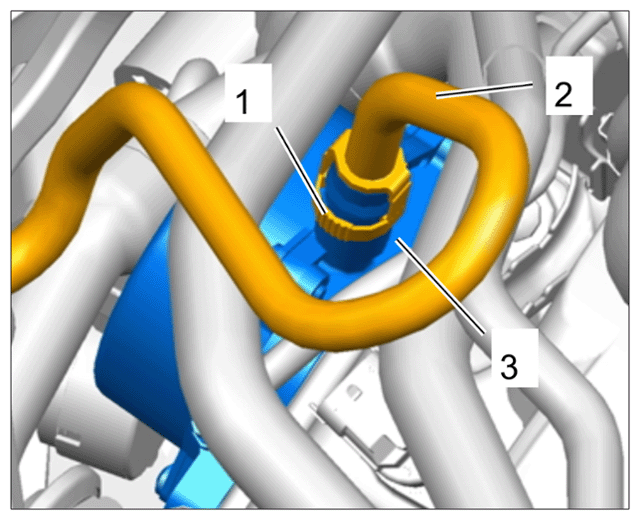

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum pump line
