Installing Vacuum Line For Brake Booster
WARNING: This page is about a different variant/trim than selected.

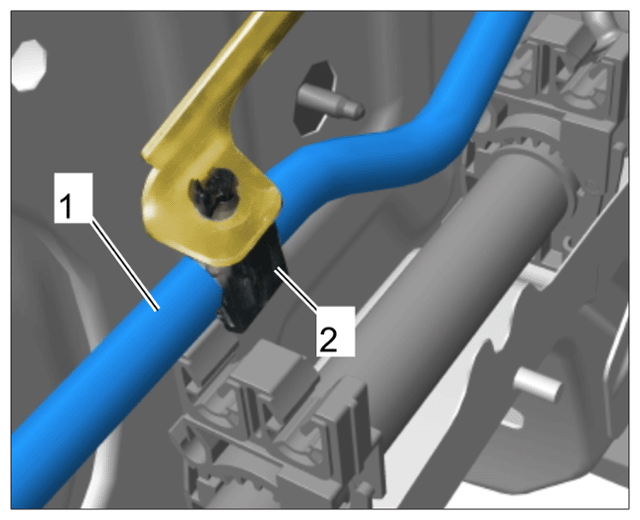

- Carefully guide the vacuum line into the plenum panel from the right.
- Clip the vacuum line -1-
into the retaining clip -2-
in the plenum panel.
Clip on brake booster vacuum line

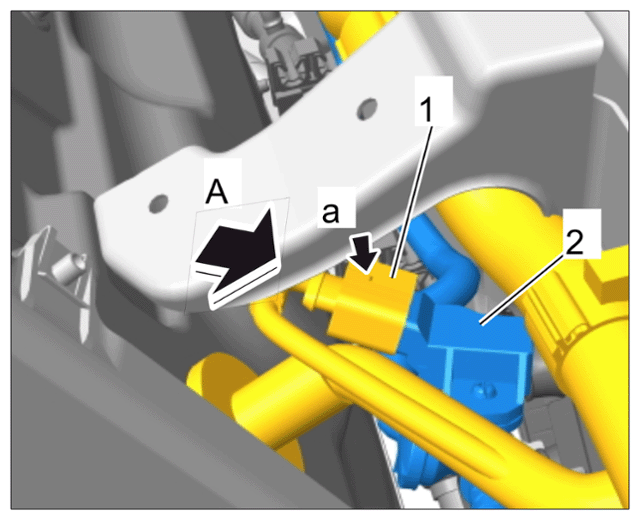

- Plug in electric plug connection -1-
for the vacuum control valve -2-
(-A-
) and lock it -a-
.
Electric plug connection on vacuum control valve
Information
The two O-rings on the vacuum line at the vacuum pump must always be replaced.

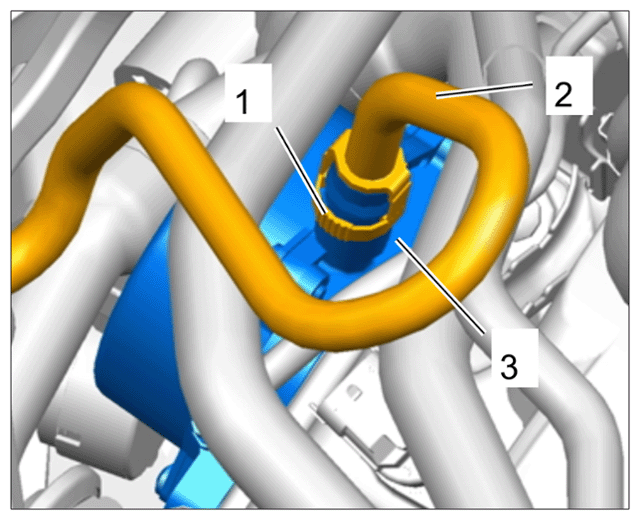

- Fit vacuum line -2-
for brake booster onto the vacuum pump -3-
and secure the clamp -1-
.
Vacuum pump line

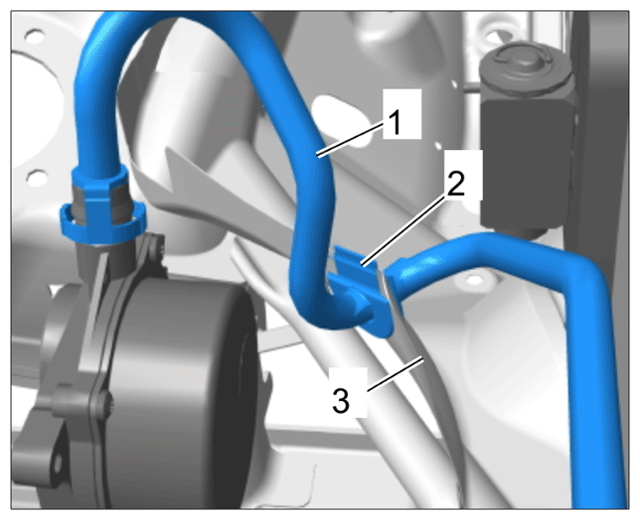

- Carefully press the vacuum line -1-
with the rubber boot -2-
into the bulkhead -3-
.
Rubber boot on vacuum line for brake booster

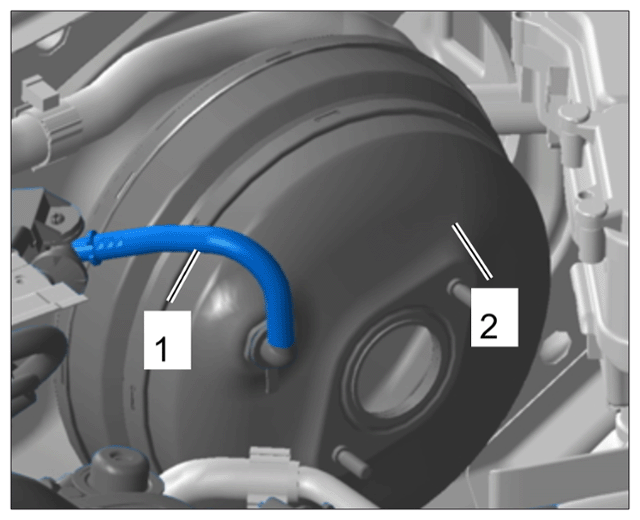

- Carefully fit the vacuum line -1-
into the brake booster -2-
.
Vacuum line on brake booster (shown without brake master cylinder)
