Removing Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
Information
The pictures shown in this document may differ from the original.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

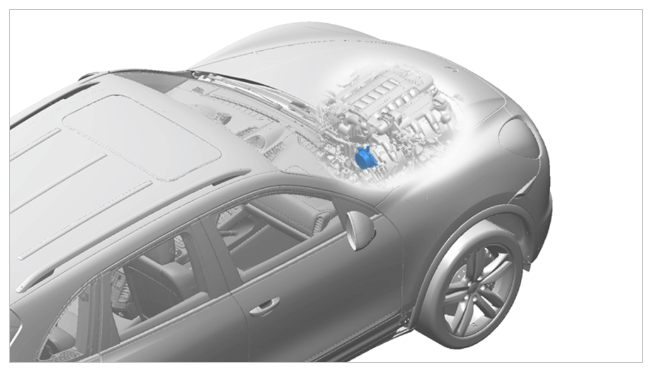

Installation position of vacuum pump
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

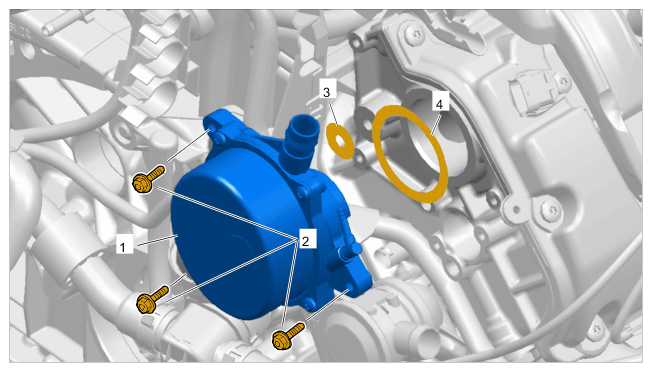

Component overview
| 1 |
Vacuum pump |
| 2 |
Fastening screws |
| 3 |
Sealing ring |
| 4 |
Sealing ring |

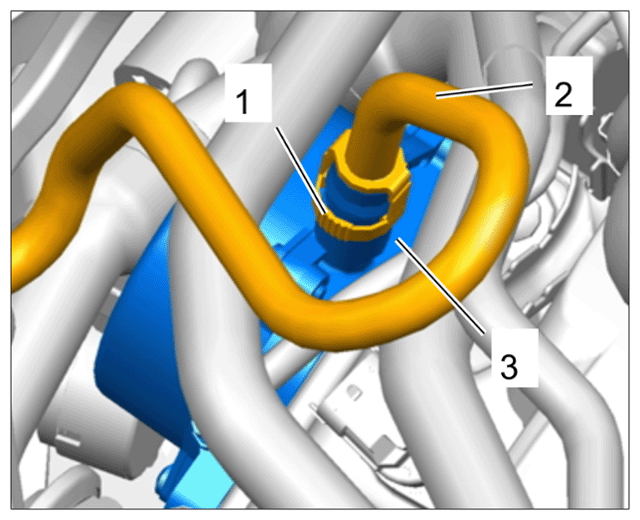

- Loosen clamp -1-
on vacuum line -2-
for brake booster at the vacuum pump -3-
.
Pull off vacuum line.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vacuum pump line

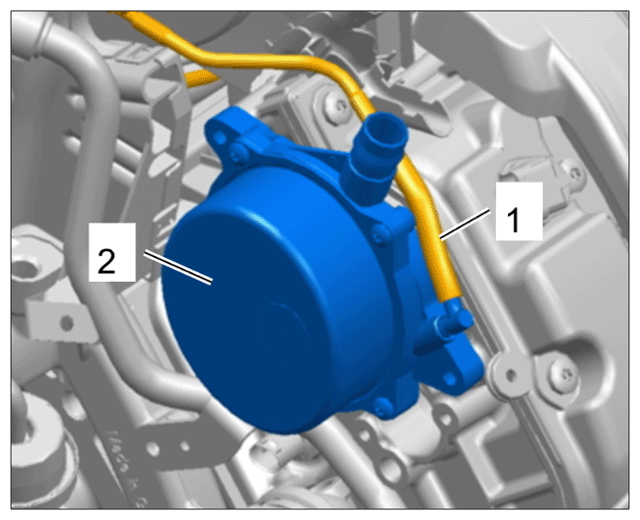

- Pull vacuum line -1-
off the vacuum pump -2-
for automatic transmission.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vacuum supply line
- Remove vacuum pump.
- 3.1 Detach and remove the vacuum pump -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

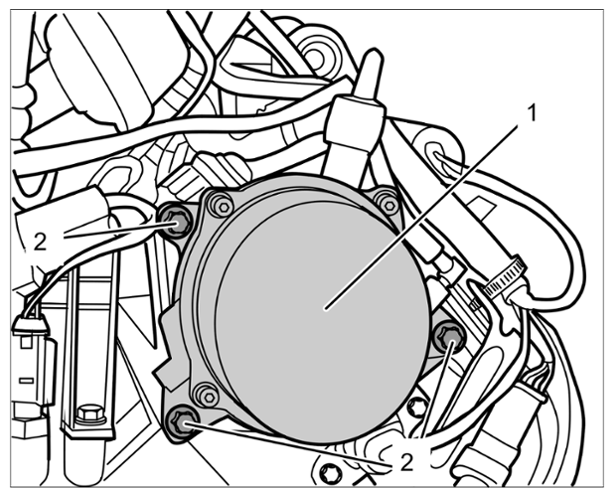

Removing vacuum pump (mechanical)
Remove the vacuum pump -1-
by unscrewing the screws -2-
. Turn the vacuum pump to the side and guide it past the fuel low-pressure line.
