Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Bleed the brake system.

    > 470107 BLEEDING THE BRAKE SYSTEM  - section on "Bleeding"

  2. Position disc brake pads by operating the brake several times.
  3. If new brake pads are fitted, read the information under "Removing and installing brake pads"

    > 463619 REMOVING AND INSTALLING FRONT BRAKE PADS

  4. Fit the wheel. Use assembly aids (assembly pins) -1-  .

    > 440519 REMOVING AND INSTALLING WHEEL

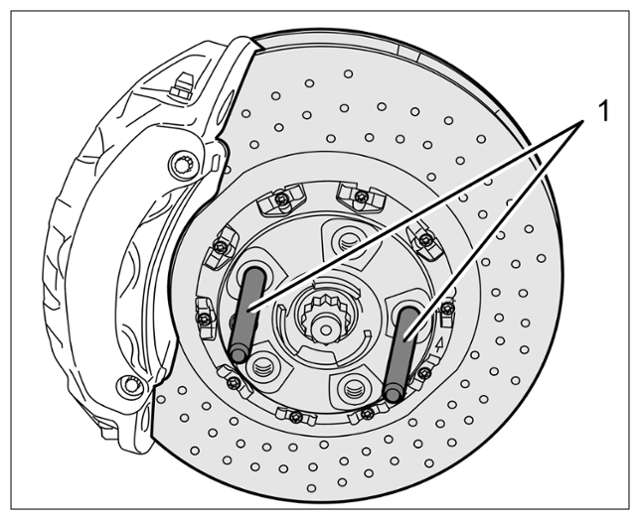

    G16330515Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake disc and calliper (shown as an example)
