Removing Front Brake Calliper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

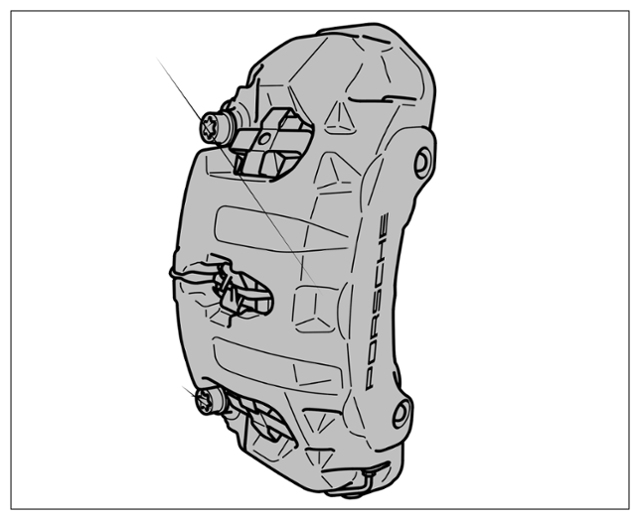

Overview of front brake calliper (shown as an example)

1. Screw the two assembly aids (assembly pins) -1-  , instead of two wheel bolts, into the wheel hub before removing/fitting the wheel. During removal, first remove the three remaining wheel bolts and remove the wheel carefully without touching the brake discs.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

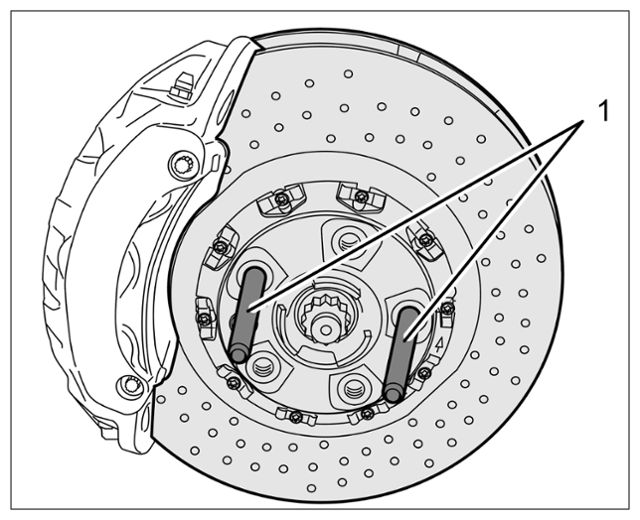

   Front-axle brake disc with calliper and assembly aids 1 (threaded bolts for fitting wheel), shown as an example

   Information

   To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

2. Then (after removing the wheel), remove the two assembly aids (assembly pins) -1-  again.
3. Release and unclip the connector for the brake pad wear indicator -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

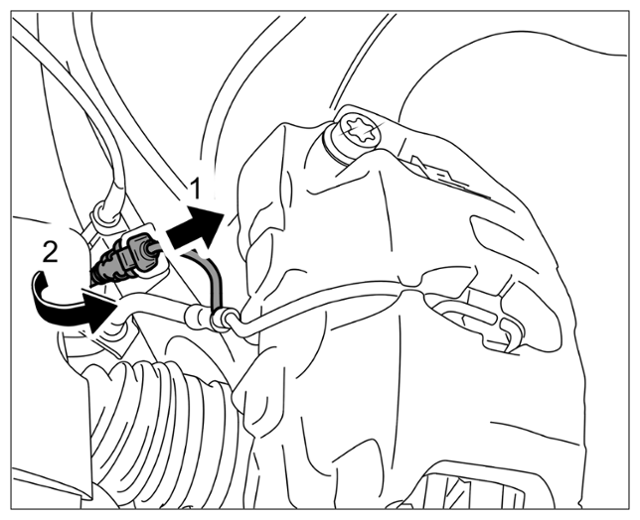

   Connector for brake pad wear indicator (shown as an example)

4. Disconnect plug connection for speed sensor.
   NOTE: NOTIFICATION
   Removal of brake calliper

   • Paint defects on brake calliper
     1. Proceed with care when setting back the brake pads.
     2. Protect brake calliper from paint defects using a suitable cloth.
5. Set the brake pads back slightly and evenly using water pump pliers.

   Information

   Do not bend the brake lines.

   • Detach brake line holders at the wheel carrier.
   • For easier access to the holders, turn in the wheel carrier as required.
6. Remove the holders -1, 2-  for the hydraulic lines on the wheel bearing housing -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

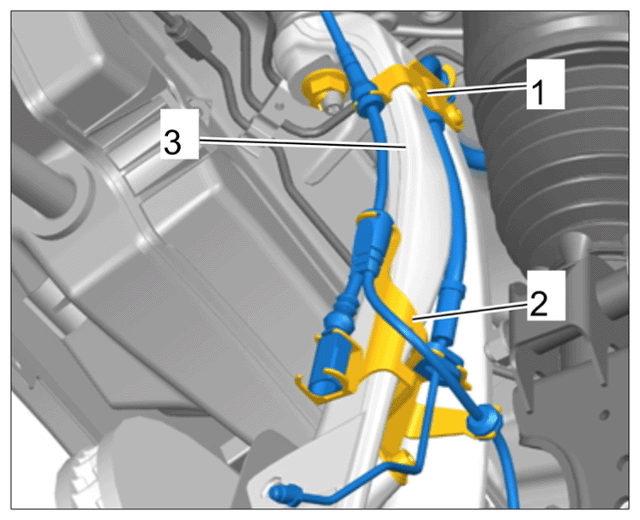

   Mounting for hydraulic lines (shown as an example)

7. Loosen the brake line at the brake calliper. Collect the brake fluid in a suitable container. Close off the openings of the brake line and brake calliper using suitable stoppers.

   Information

   Never use power tools (impact bolter) for loosening and securing the brake calliper on the wheel bearing housing.

8. Carefully remove the brake calliper from the wheel carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

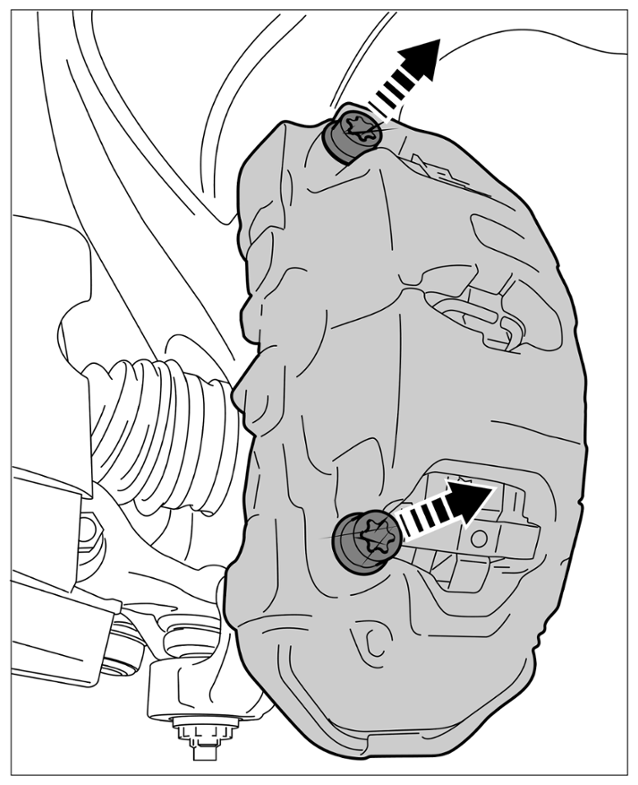

   Fastening screws on brake calliper (shown as an example)

9. If new brake pads are fitted, read the information under "Removing and installing brake pads"

   > 463619 REMOVING AND INSTALLING FRONT BRAKE PADS
