Replacing Brake Master Cylinder

Information

When replacing the brake master cylinder, first remove the brake fluid reservoir.

1. Remove the brake light switch.

   > WM 943619 REMOVING AND INSTALLING BRAKE LIGHT SWITCH - section on "Removing"

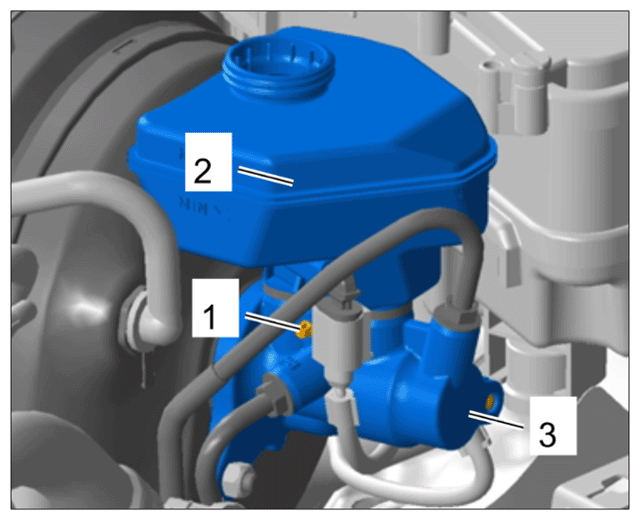

2. Unscrew screw -1-  securing brake fluid reservoir -2-  to brake master cylinder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake fluid reservoir screw

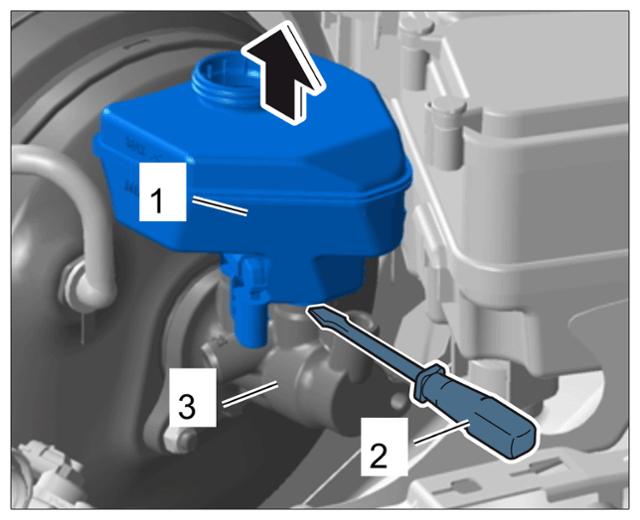

3. Lever out the brake fluid reservoir -1-  using a suitable tool -2-  and remove it from the brake master cylinder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing brake fluid reservoir

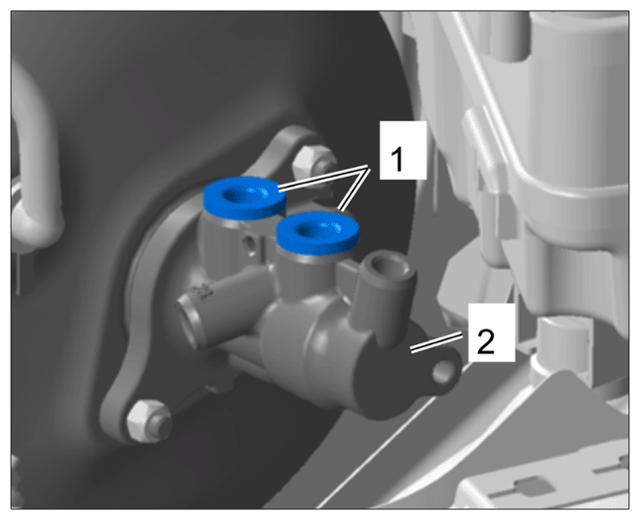

4. Remove rubber seals -1-  from the brake master cylinder -2-  and replace them if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber seals on brake master cylinder

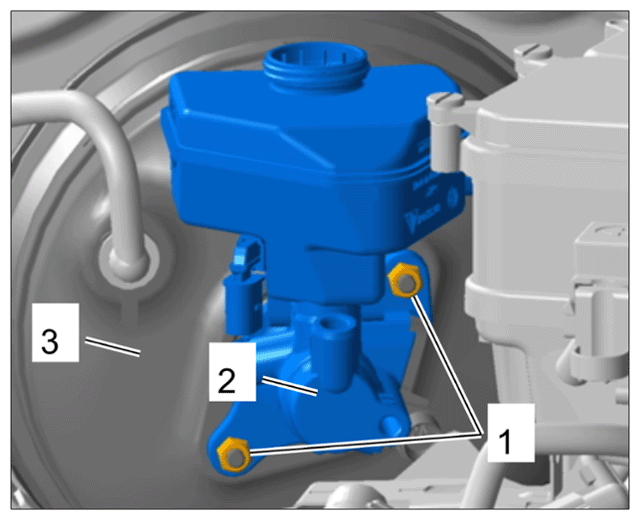

5. Unscrew fastening nuts -1-  on the brake master cylinder -2-  at the brake booster -3-  and remove the brake master cylinder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for brake master cylinder
