Checking Brake Fluid Level
WARNING: This page is about a different variant/trim than selected.
Information
- The brake fluid level must not exceed the MAX marking.
- Check brake fluid quality. Use only new DOT 4 brake fluid.
- Brake fluid can be ordered using the Porsche Electronic Parts Catalogue (PET).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

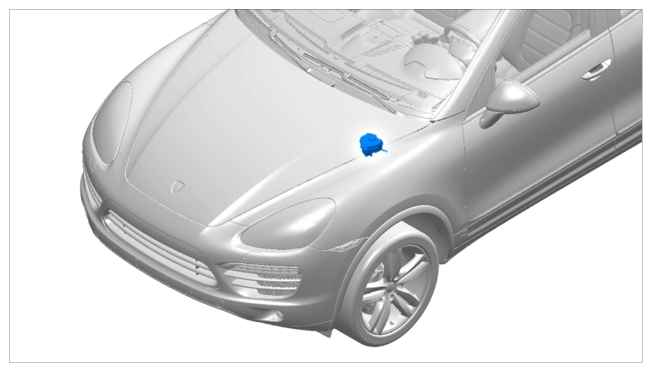

Installation position of brake fluid reservoir
- Visually check the brake fluid level. The brake fluid level must be between the MIN and MAX markings -1-
. The brake fluid reservoir is located under the left plenum panel cover.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

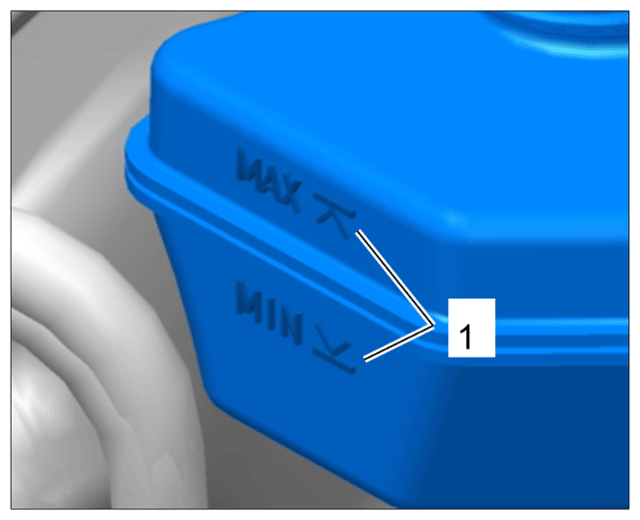

Min/Max markings for brake fluid
