Removing And Installing Rear Brake Disc (Pccb)

WARNING: This page is about a different variant/trim than selected.

NOTE: NOTIFICATION
Removing/fitting wheels

Risk of damage to (ceramic) brake discs
1. Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

> 9818 - PIWIS Tester II must be connected and started.
1. 1.1 Select parking brake.
2. 1.2 Select Maintenance/repair.
3. 1.3 Move to installation position.

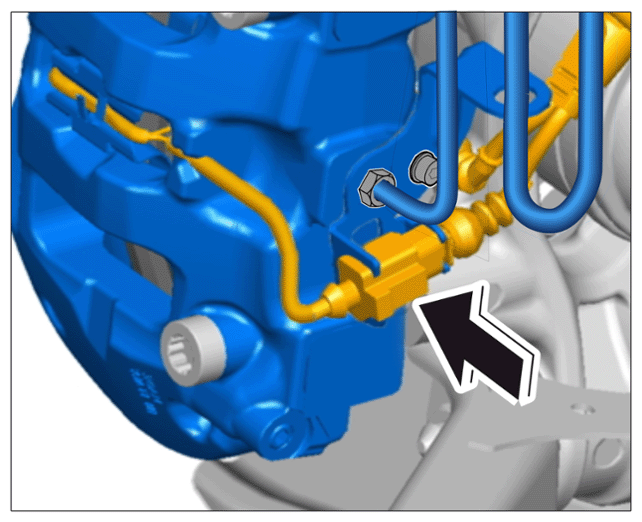

Release and unclip connector for the brake pad wear indicator and remove it from the holder -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping cable
NOTE:
NOTIFICATION
Removal of brake calliper
- Paint defects on brake calliper
  1. Proceed with care when setting back the brake pads.
  2. Protect brake calliper from paint defects using a suitable cloth.
Set the brake pads back slightly and evenly using water pump pliers.

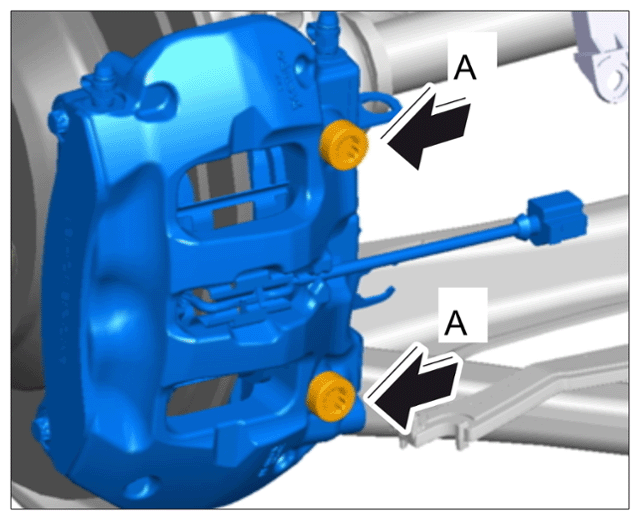

Detach the brake calliper on the wheel carrier and suspend it at a suitable place in the wheel housing or set it down carefully (do not open the brake hydraulic system!).
> 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER (PCCB)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing brake calliper (shown as an example)

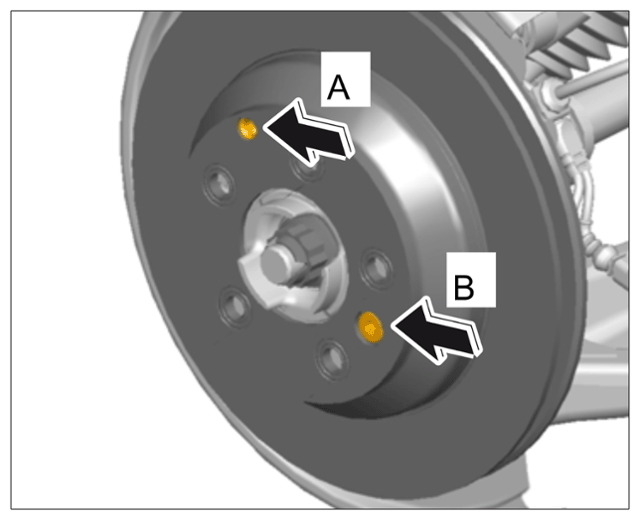

Unscrew fastening screw -B- and remove brake disc.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc (shown as an example)
