Coating On The Pccb Brake Discs (Potential Causes)
WARNING: This page is about a different variant/trim than selected.
The coating on the PCCB brake discs arises as a result of a high load and high temperatures, for example on a racing circuit. Check the following in such cases:
Bores (perforations) in brake disc friction surface
- Ventilation (brake cooling): all components are present, secured correctly and undamaged.
- Brake pad quality: If the vehicle is used for race-track driving, use appropriate brake pads.

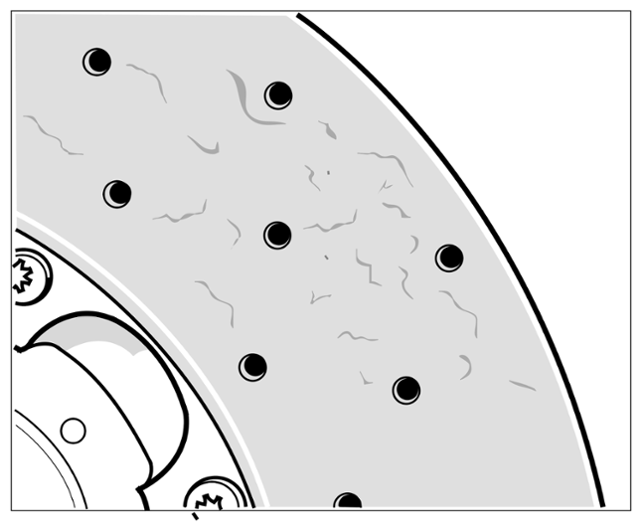

- The perforation bores - see illustration-
in the brake discs must not be blocked. Unblock them if necessary.
> 465402 Checking rear PCCB brake disc (wear assessment) - section on "INFORMATION "
- In the event of brake pad wear, the brake discs can still be used provided the brake discs satisfy all wear criteria
> 465402 Checking rear PCCB brake disc (wear assessment) - section on "INFORMATION "
The perforation bores - see illustration- must not be blocked.
