Checking Minimum Thickness Of Brake Discs
WARNING: This page is about a different variant/trim than selected.
Information
Minimum thickness of PCCB brake disc

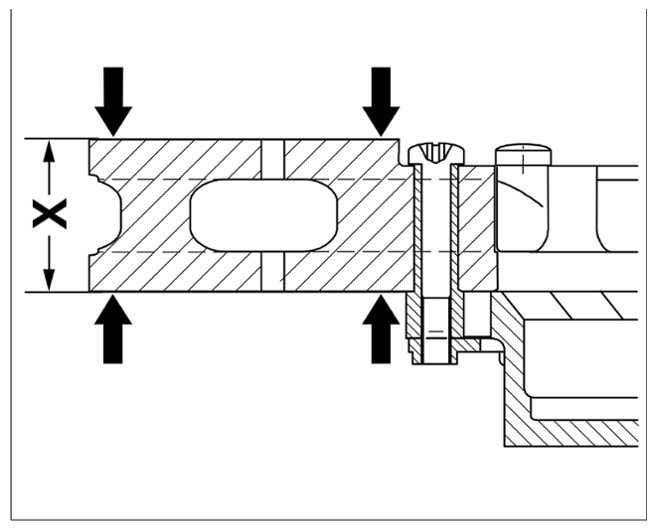

- For perforated brake discs, the minimum thickness -X- must always be measured on the inner or outer friction surface track -arrows- .
- Wear limit: The minimum brake disc thickness is stamped on the brake-disc chamber (e.g. Min. Th. 29.7 mm).
Measure the brake thickness -X- with a suitable micrometer screw gauge or a brake disc gauge around the inner or outer friction surface tracks -arrows- .
