Explanation Of Two-Part Brake Disc

WARNING: This page is about a different variant/trim than selected.

The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1- is screwed to the brake-disc chamber -2- with screws (M6) -3-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

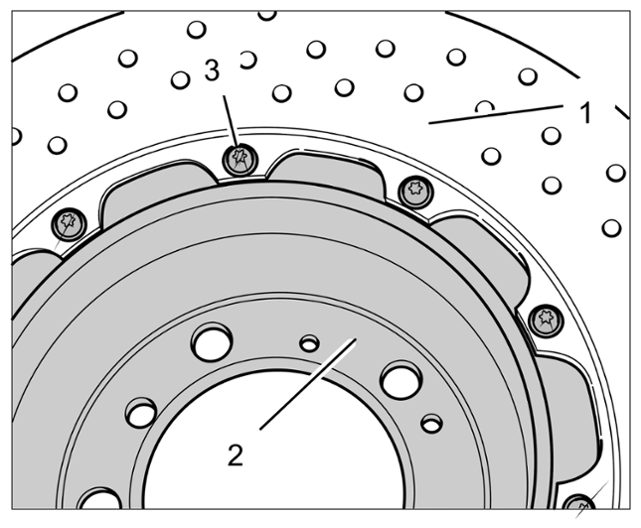

Illustration shows example

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

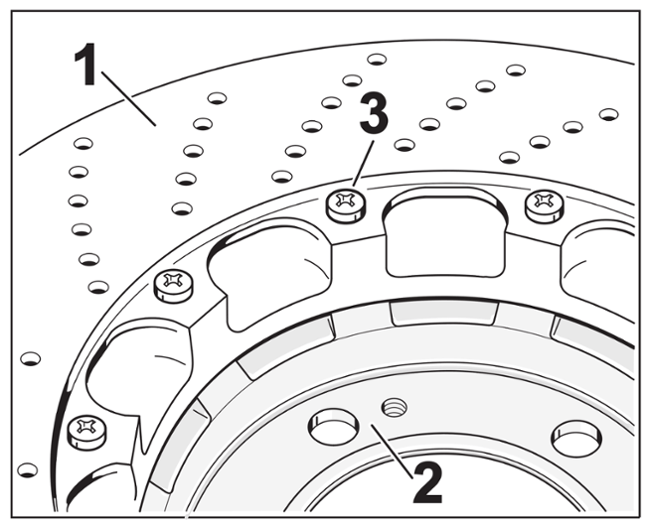

Two-part brake disc (shown as an example)
Only the complete brake disc is available as a spare part (disc + brake-disc chamber)!
Do not separate the brake-disc chamber -2- and brake disc -1-. In addition, the screws -3- must not be turned and should not need to be turned. The screws are prevented from turning by compression in the bushing.
It is essential that the tightening torque of the screws is not changed (do not turn the screws) as this can have a negative effect on the sound behavior.
