Pccb Brake Disc Wear Appearance

WARNING: This page is about a different variant/trim than selected.

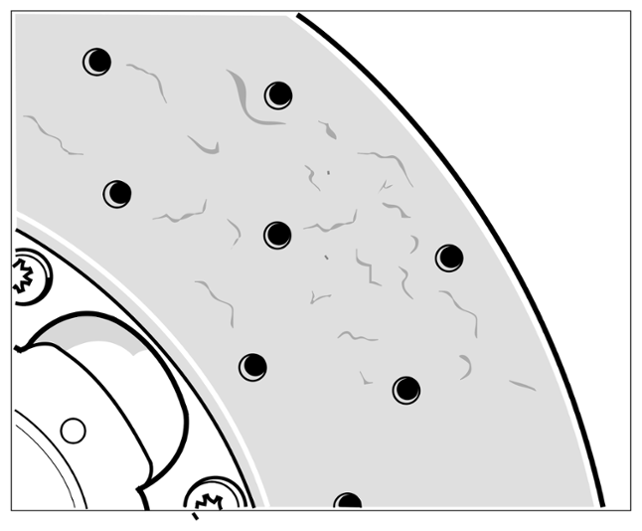

Friction surfaces after normal brake load while driving on roads. No surface fractures present -

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bores (perforations) in the brake disc friction surface

Brake discs do not need to be replaced!

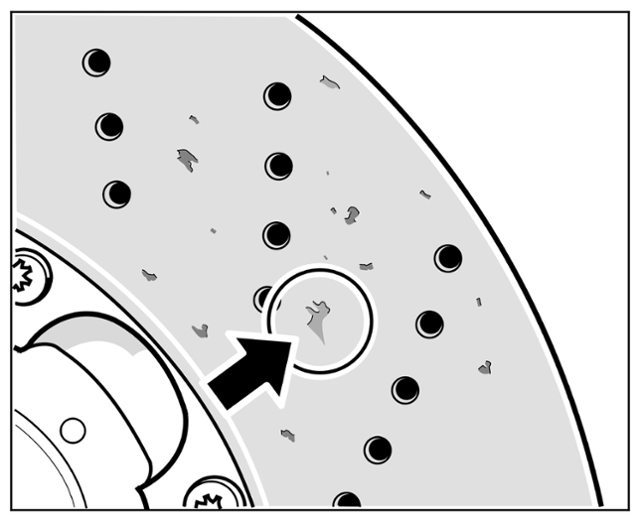

Friction surfaces after a long journey and occasional high load. Isolated cases of connected surface fractures less than 1 cm²-arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PCCB surface fractures

No replacement necessary as the connected surface fractures are < 1 cm² !

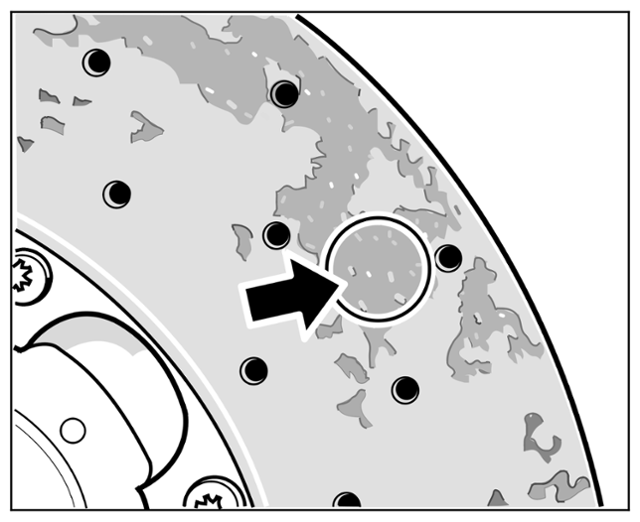

End of service life of friction surface or after highest load on a racing circuit.
Replace brake discs if the connected friction surface damage is > 1 cm²-arrow- . To do this, follow the instructions provided under

> 465102 Checking front PCCB brake disc (wear assessment) - section on "INFORMATION "

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PCCB friction surface damage

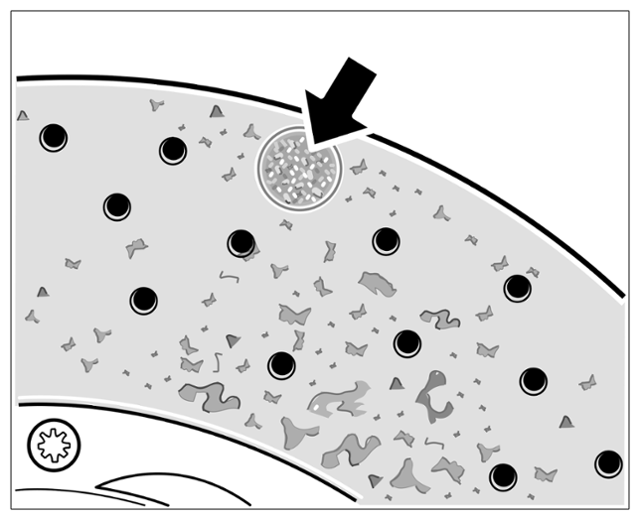

The best way to detect a surface fracture is by checking the wear indicators. Based on the wear indicators, this means that at least one wear indicator -arrow- must have a surface fracture of > 50% (damage > 1 cm² /entire surface of a wear indicator with a surface area of approx. 2 cm² ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PCCB surface burnout on wear indicator
