Checking Brake Discs For Minimum Thickness
WARNING: This page is about a different variant/trim than selected.
Information
Minimum thickness of PCCB brake disc

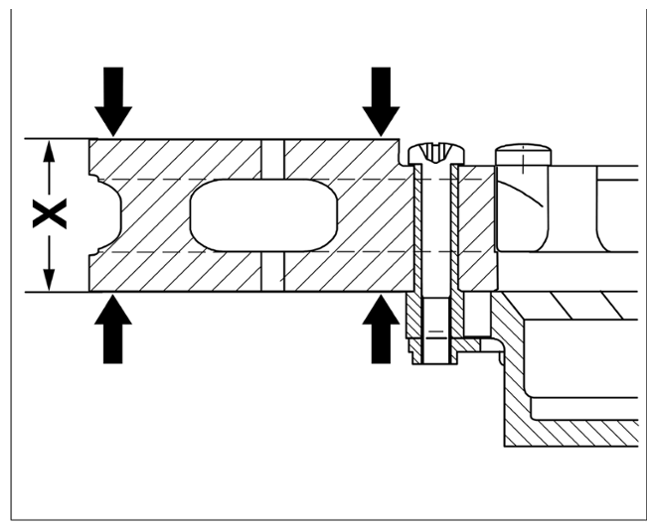

- For perforated brake discs, the minimum thickness -X- must always be measured on the inner or outer friction surface track -arrows- .
- Wear limit: The minimum brake disc thickness is stamped on the brake-disc chamber (e.g. Min. Th. 37.7 mm).
Measure the brake disc thickness -X- using a suitable micrometer screw or a brake disc gauge around the inner or outer friction surface tracks -Arrows- .
