General Information On Pccb Brake Discs
WARNING: This page is about a different variant/trim than selected.

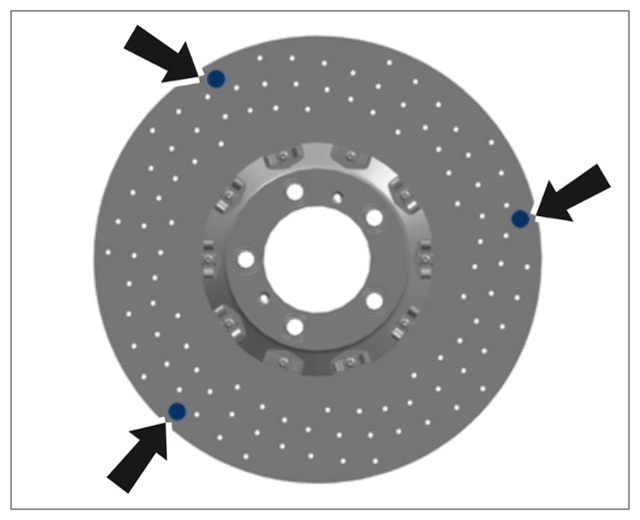

The brake discs have wear indicator plates in the friction surfaces. The wear indicator plates (six on each brake disc) are arranged close to the outer diameter, offset by 120° -arrows- at three points. The three wear indicator plates on each friction surface (3 on the inside and 3 on the outside) are positioned directly opposite each other. Each wear indicator is approx. 2 cm2 . The wear indicators are barely visible on new brake discs.
Wear indicators
The minimum brake disc thickness (wear dimension) is stamped on the brake-disc chamber (e.g. Min. Th. 37.7 mm).
