Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Information

Do not open the brake system.
Do not loosen the brake hose from the brake calliper when loosening the brake calliper.
The core of the warning contact line must not be exposed! Worn insulation is not important!
If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

Lift the vehicle.

Remove the wheel. Use assembly aids (assembly pins) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

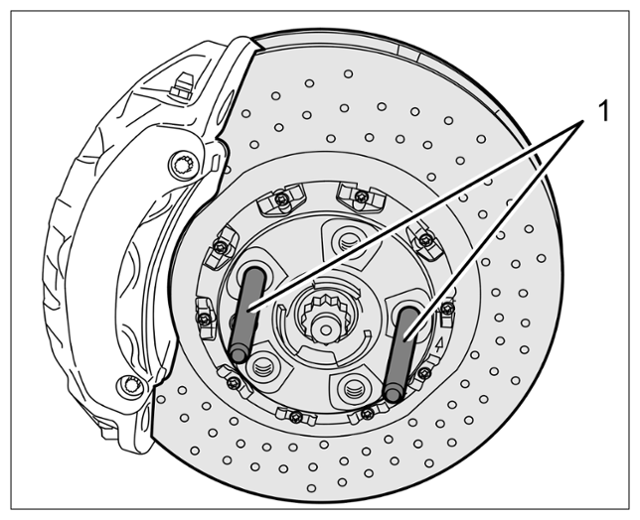

Brake disc and calliper (shown as an example)
