Preliminary Work
WARNING: This page is about a different variant/trim than selected.
Lift the vehicle.

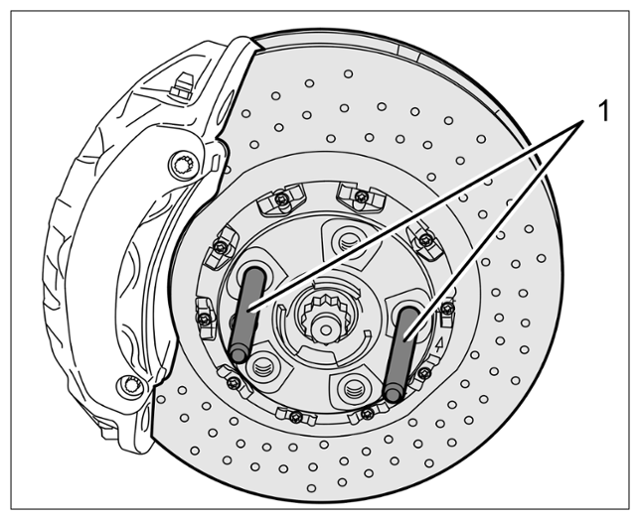

Remove the wheel. Use assembly aids (assembly pins) -1- .
> 44051900 REMOVING AND INSTALLING WHEEL
PCCB brake disc and calliper (shown as an example)
Information
- Do not open the brake system.
- Do not loosen the brake hose from the brake calliper when loosening the brake calliper.
- The core of the warning contact line must not be exposed! Worn insulation is not important!
- If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.
- Partially remove the brake calliper.
