Component Overview

WARNING: This page is about a different variant/trim than selected.

The steel springs do not apply for the Cayenne Turbo.

Standard Cayenne Turbo equipment: Air springs with level control and vertical adjustment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

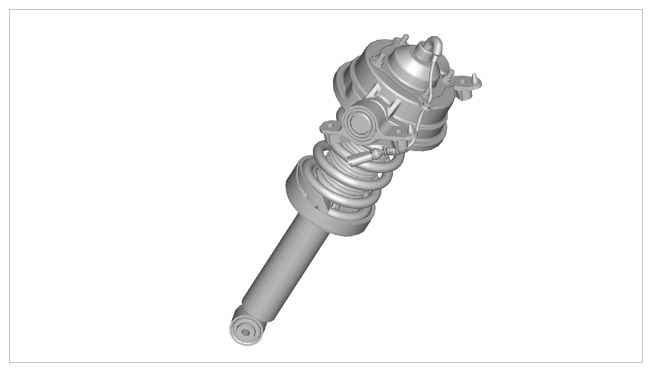

Steel spring strut, complete (shown with PASM)

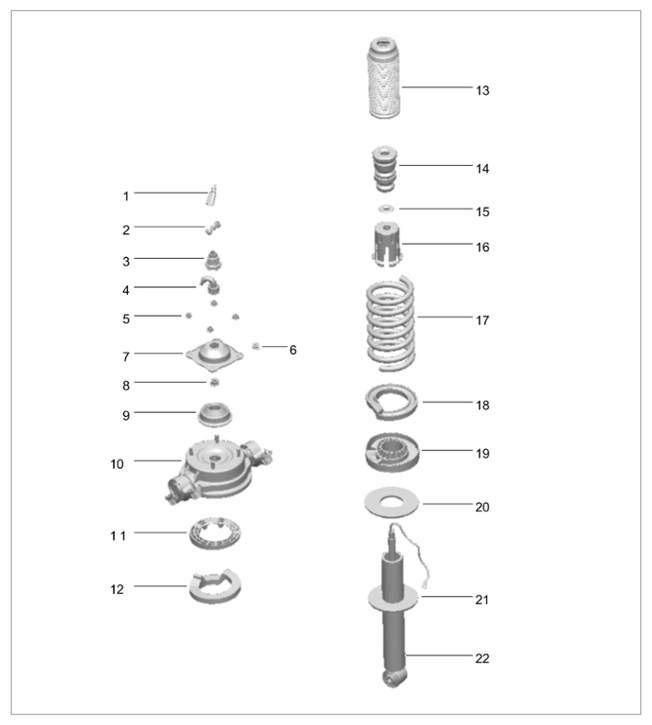

Fig 1: Exploded View Of Steel Spring Strut (Shown With PASM)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exploded view of steel spring strut (shown with PASM)

No.	Designation	Note
-1-	Connector housing	Only for PASM (Porsche Active Suspension Management)
-2-	Grommet (connector)	Only for PASM
-3-	Grommet (cable)	Only for PASM
-4-	Cable guide	Only for PASM
-5-	Hexagon nut (4x)	Use new hexagon nuts.
-6-	Cable holder (rubber)	Only for PASM
-7-	Cover	Allocation of cover as per Parts Information.
-8-	Lock nut	Use a new lock nut.
-9-	Supporting mount	Allocation of supporting mount as per Parts Information.
-10-	Concave support
-11-	Top support	Fit together at the correct position with top base. (Align triangular markings all the way around).
-12-	Top base	Fit together at the correct position with top support. (Align triangular markings all the way around).
-13-	Boot
-14-	Rubber stop	Allocation of rubber stop as per Parts Information.
-15-	Washer	No longer used from model year B onwards.
-15-	Washer	Allocation of washer as per Parts Information.
-16-	Cap	Allocation of cap as per Parts Information.
-17-	Coil spring	Allocation of coil spring as per Parts Information.
-18-	Bottom base	Fit together at the correct position with bottom support. (Align triangular markings all the way around).
-19-	Bottom support	Fit together at the correct position with bottom base. (Align triangular markings all the way around).
-20-	Spacer	Number of spacers depends on the tolerance class (0 spacers, 1 spacer or 2 spacers).
-20-	Spacer	The number depends on the number of violet dots on the coil spring.
> -21-	Concave washer
> -22-	Shock absorber	Allocation of shock absorber as per Parts Information.
