Removing Rear Spring Strut (Steel Springs With PASM)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lifting wheel bearing housing (example)

• Spring strut screws are under tension. Use a suitable lift with rubber base.
• Do not damage the brake cover plate.

Information

The pictures shown in this document may differ from the original.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

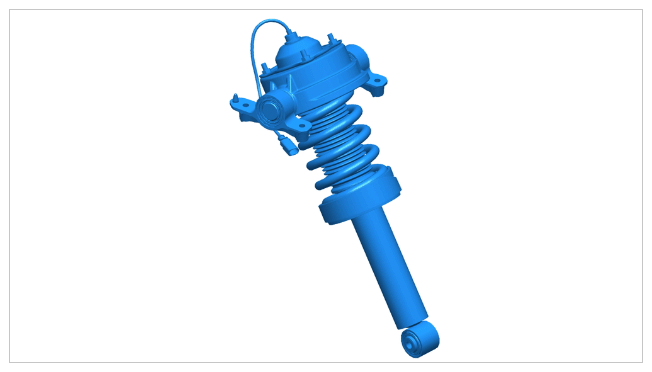

Rear spring strut (steel springs with PASM)

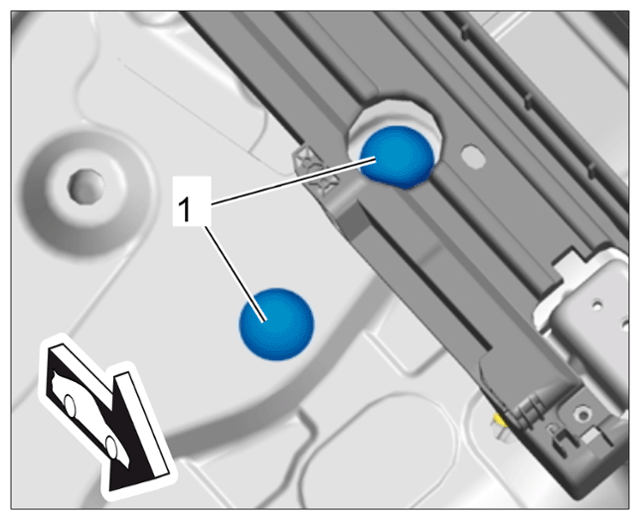

1. Remove caps -1-  from the top screws on the spring strut at the front, under the side panel of the luggage compartment cover, using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing caps

2. Loosen fastening screws -1-  on the upper spring strut, but do not remove them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening upper spring strut

3. Raise the vehicle.

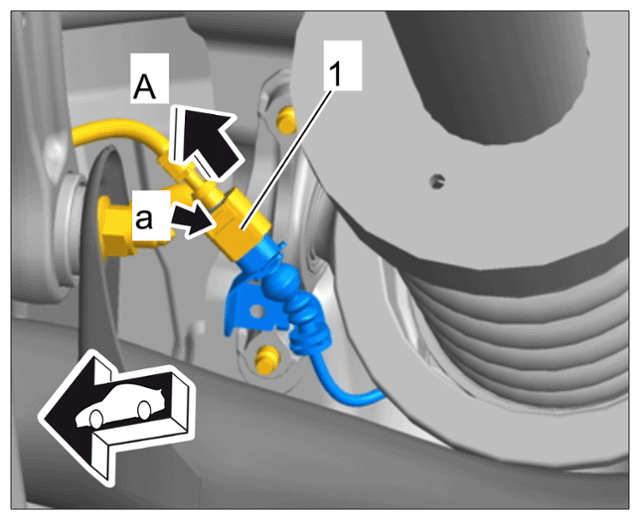

4. Release electric plug connection at the upper spring-strut mount -1-  (-a-  ) and pull it off -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for steel springs

5. Secure the spring strut using a suitable jack > Raising rear wheel bearing housing (shown as an example)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Raising rear wheel bearing housing (shown as an example)

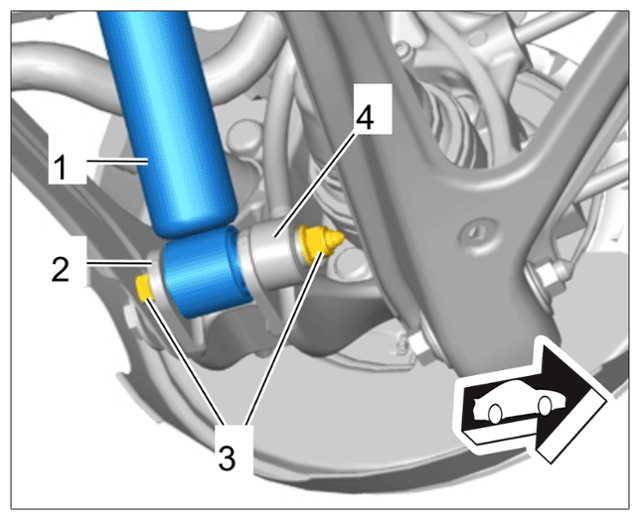

6. Remove the lower spring strut -1-  from the wheel bearing housing -2-  and connecting link -4-  . To do this, loosen the fastening screw -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw securing spring strut and wheel bearing housing

7. Remove the jack and carefully lever the spring strut -1-  out of the wheel bearing housing -2-  using a suitable tool, e.g. mounting lever.
8. Lower the vehicle.
9. A second mechanic is needed to hold and remove the spring strut.

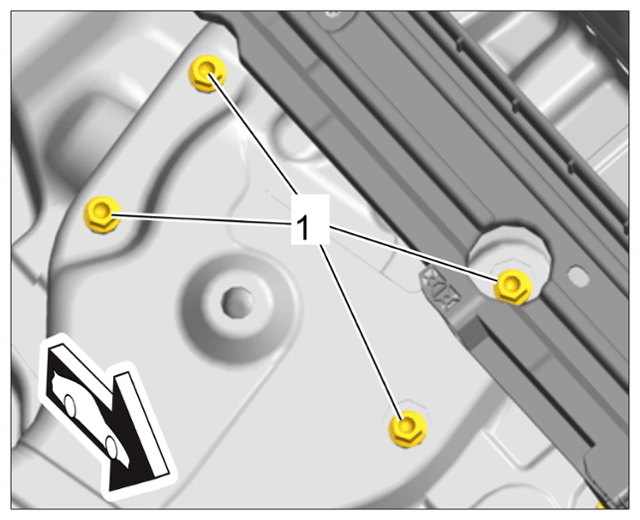

   The first mechanic unscrews the top fastening screws -1-  on the spring strut completely.

   The second mechanic holds the spring strut securely and then pulls it out of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper spring-strut mount
