Removing Rear Wheel Bearing

WARNING: This page is about a different variant/trim than selected.

WARNING: Mechanical, hydraulic or pneumatic press

Risk of squashing
1. Read specific safety information for the press.
2. Check that the press is working perfectly before use, particularly the safety components.

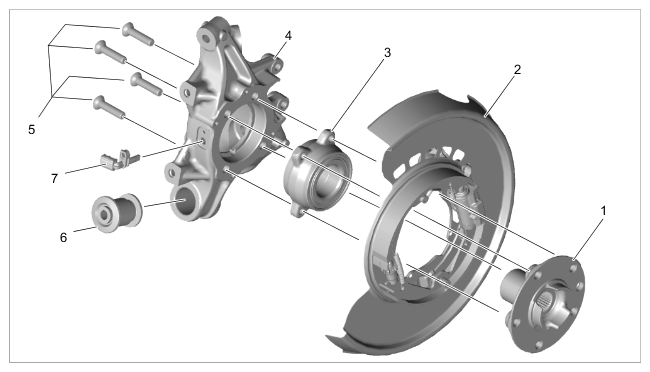

Fig 1: Overview Of Wheel Bearing Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of wheel bearing

Press out wheel hub.
Carefully set the wheel bearing housing down.

The wheel hub must be freely accessible.

Do not damage the brake cover plate.

A second mechanic is required!

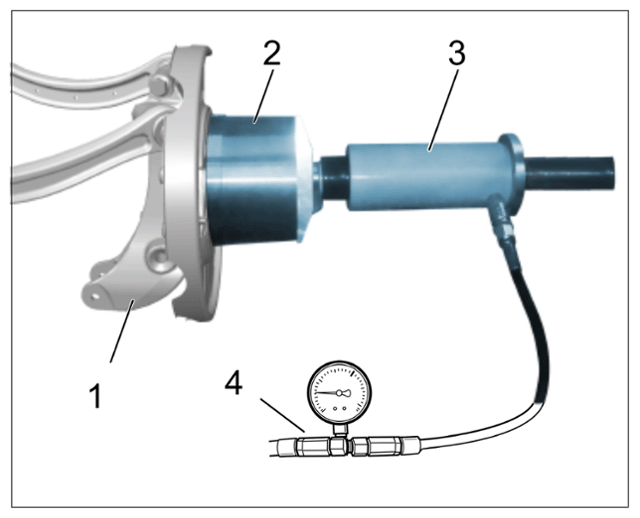

Fit press-off tool > VAS 6178 - Hydraulic cylinder , -3- with > T10230 - Assembly tool , -2- and > T10205 - attachments over the wheel hub on the wheel bearing housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing off wheel hub
Connect to > VAS 6179 - Foot Pump and > VAS 6179/1 - Pressure Gauge with Connection Line , -4- .
Apply compressed air to the tool and carefully press off the wheel hub.

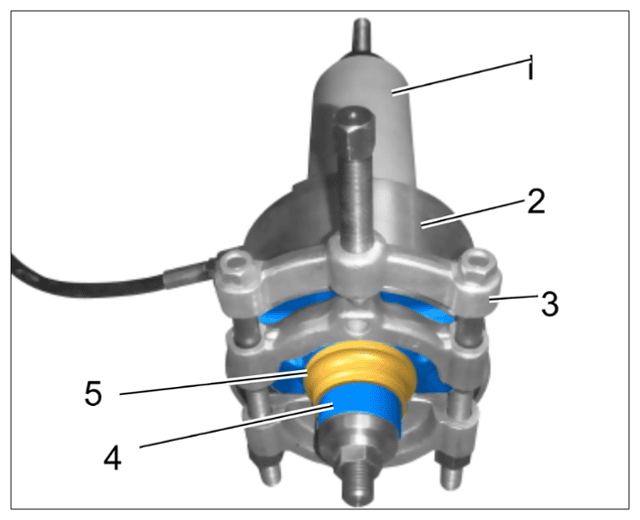

Fit wheel hub -4- using > Nr.111 - separating device , -3- , > T10230 - assembly fixture , -2- and > VAS 6178 - Hydraulic cylinder , -1- , as well as > VAS 6179/1 - Pressure Gauge with Connection Line .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing bearing shell off the wheel hub
Apply compressed air to the tool and press the bearing shell -5- off the wheel hub -4- .
Fit wheel bearing housing without drive shaft in the vehicle and secure at the upper wishbones.
Remove fastening screws -2- for the wheel bearing -1- from the wheel bearing housing -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on wheel bearing (shown as an example)
Remove wheel bearing.
