Component Overview
WARNING: This page is about a different variant/trim than selected.

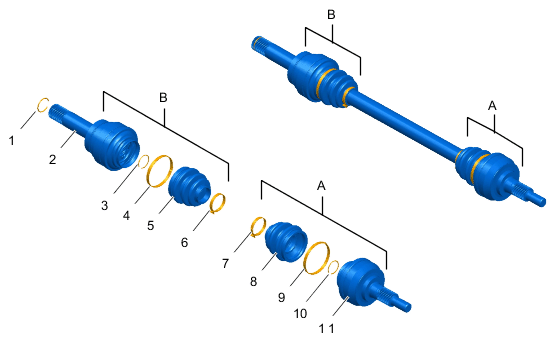

Single drive shaft
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -B- | Inner joint | |||
| Not shown! | Protective ring (transmission side only) | 1 | Left side only: Break (carefully) during removal in order to lever the drive shaft out of the transmission. | Replace protective ring. |
| -1- | Circlip | 1 | Remove circlip. | Do not confuse circlip no. 1 with circlip no. 3 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the joint pin from above. Check that the circlip is seated correctly. The circlip is pre-fitted when a new joint is installed. |
| -2- | Joint | 1 | Remove the joint from the profile shaft using an aluminium mandrel and by hitting the ball hub (star-shaped inner ring) hard several | times with a hammer. Always use a new joint during installation! Position the joint on the profile shaft. To do this, press circlip no. 3 together as required so that the joint slides over it easily when you tap it with a rubber hammer. Grease the new joint! |
| -3- | Circlip | 1 | Remove circlip carefully with a pliers. | Do not confuse circlip no. 3 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip into the groove on the profile shaft from the side. Check that the circlip is seated correctly. |
| -4- | Hose clamp, large | 1 | Remove hose clamp. | For securing the bellows. |
| -5- | Bellows | 1 | Remove bellows from the profile shaft. | |
| -6- | Hose clamp, small | 1 | Remove hose clamp. | For securing the bellows. |
| -A- | Outer joint | |||
| -7- | Hose clamp, small | 1 | Remove hose clamp. | For securing the bellows. |
| -8- | Bellows | 1 | Remove bellows from the profile shaft. | |
| -9- | Hose clamp, large | 1 | Remove hose clamp. | For securing the bellows. |
| -10- | Circlip | 1 | Remove circlip carefully with a pliers.1) | Do not confuse circlip no. 10 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip into the groove on the profile shaft from the side. Check that the circlip is seated correctly. |
| -11- | Joint | 1 | Remove the joint from the profile shaft using an aluminium mandrel and by hitting the ball hub (star-shaped inner ring) hard several times with a hammer. | Always use a new joint during installation! Position the joint on the profile shaft. Press circlip no. 10 together as required so that the joint slides over it easily when you tap it with a rubber hammer. Grease the new joint! |
