Removing Drive Shaft

Information

The pictures shown in this document may differ from the original.

Information

• To prevent damage to the drive shaft, suspension subframe or transmission flange, slide a protective tube (shop-made) over the drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

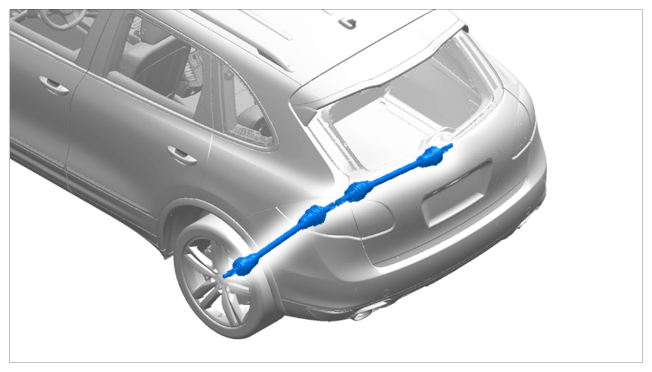

Installation position of rear drive shaft

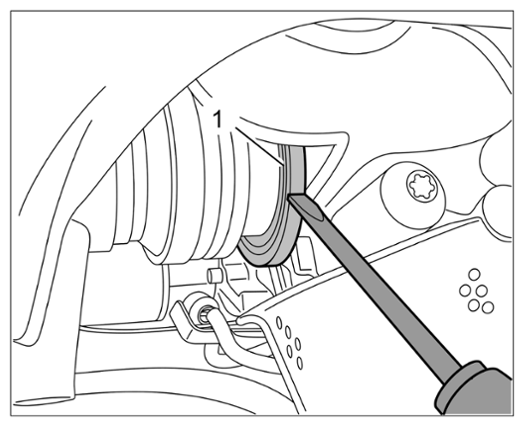

1. Left side only: Break off protective plastic ring -1-  with a screwdriver.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Breaking off protective plastic ring (shown as an example)

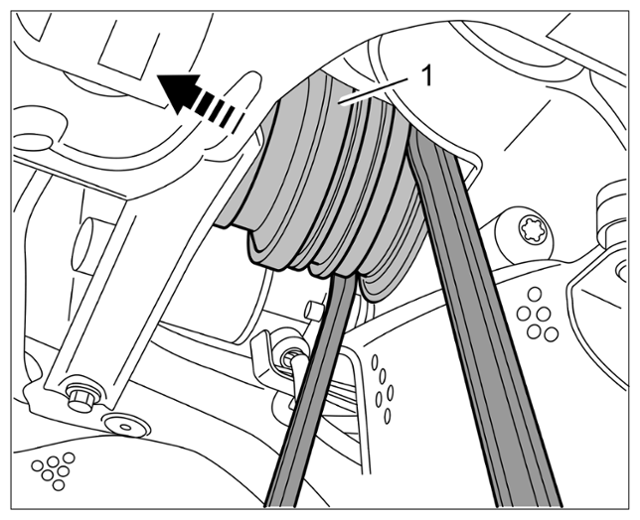

2. Position two mounting levers and carefully press the drive shaft -1-  outwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting mounting levers (shown as an example)

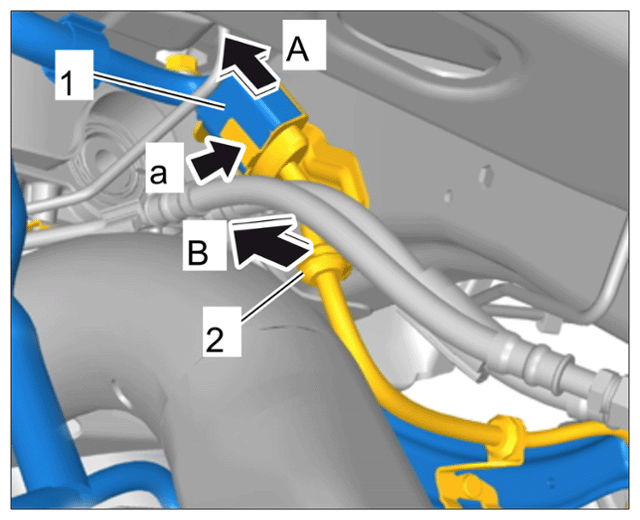

3. Release central connector -1-  from the ABS wire harness at the body -a-  and disconnect it -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for wire harness for wheel bearing housing

4. Unclip ABS wire harness mounting -2-  at the body -B-  .
5. Remove the brake calliper from the wheel bearing housing and suspend it at a suitable position in the wheel arch (do not open the brake hydraulic system!).

   > 474119 Removing and installing rear brake calliper - section on "REMOVING "

6. Remove the brake disc for better accessibility if necessary.

   > 465319 Removing and installing rear brake disc - section on "REMOVING "

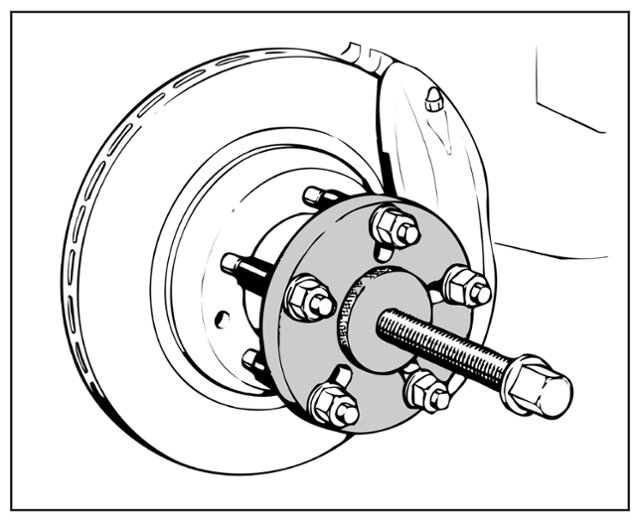

7. Use > VAS 6926 - Puller set  to press the drive shaft pin out by max. > Length 10 mm + 5 mm  . Check drive shaft clearance on the halfshaft flange while doing this.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing out drive shaft, max. 10 mm  (shown as an example)

8. Remove the wheel bearing housing from the spring strut.

   > 427119 Removing and installing rear spring strut (steel springs) - section on "REMOVING "

   ,

   > 432519 Removing and installing rear spring strut (air springs) - section on "REMOVING "

   The spring strut screws are under tension. Use a suitable lift with a rubber base.

   Carefully press the spring strut down out of the wheel bearing housing.

   Make sure not to damage the brake cover plate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring strut support (shown as an example)

9. Remove the tie rod (toe control arm) at the wheel bearing housing.

   > 420919 REMOVING AND INSTALLING REAR TIE ROD (TOE CONTROL ARM)  - section on "Removing"

10. Secure the wheel bearing housing/drive shaft assembly to prevent it from falling down (second mechanic required!)

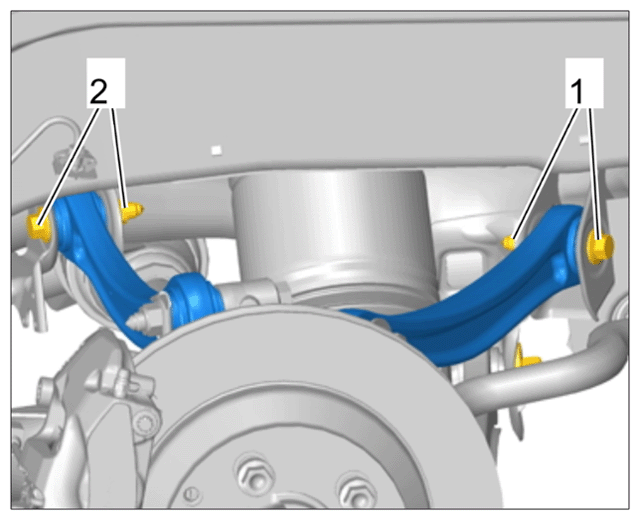

    Remove the screws -1, 2-  on the inside of the two upper wishbones from the rear axle carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint on inner wishbones

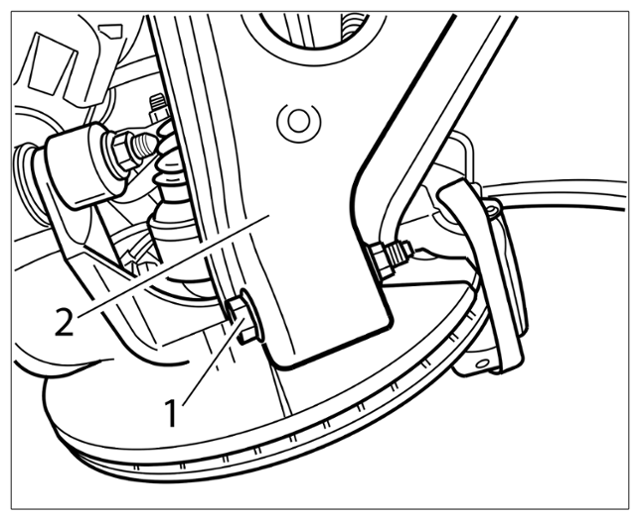

11. Loosen the lower wishbone -2-  at the point where it is fastened to the wheel bearing housing -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on lower trailing arm (shown as an example)

12. Slowly lower a suitable jack and carefully set the wheel bearing housing and drive shaft down.

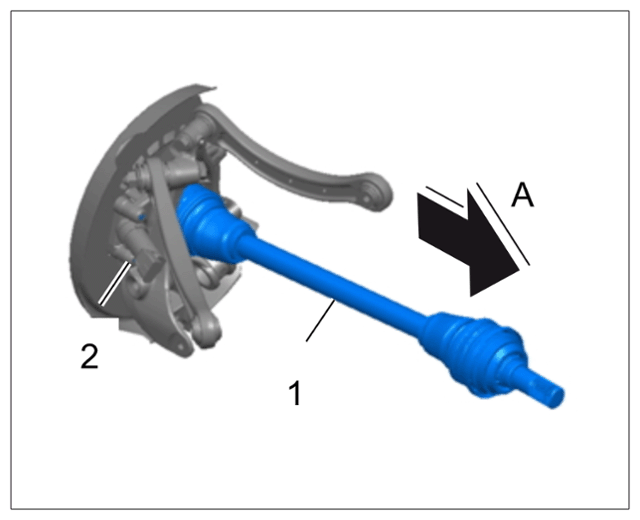

13. Pull the drive shaft -1-  fully out of the wheel bearing housing -2-  (-A-  ) and set it aside.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing drive shaft from wheel bearing housing
