Removing Rear Tie Rod (Toe Control Arm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

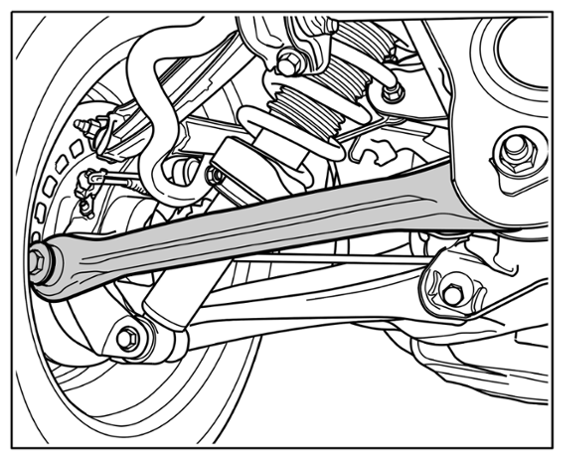

Tie rod (toe control arm)

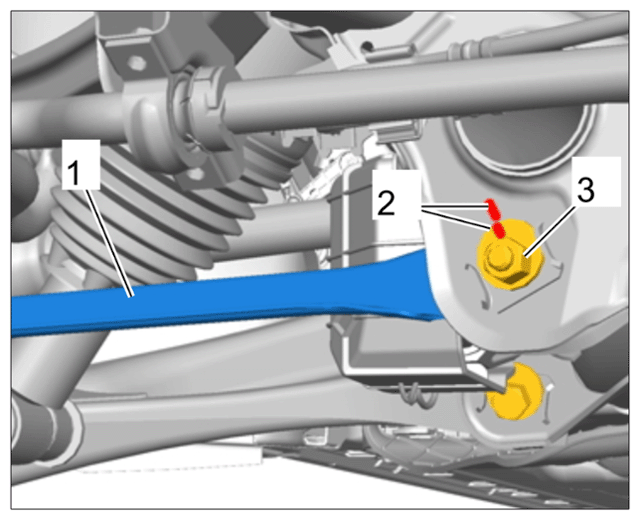

1. Mark the position of the eccentric screw -3-  on the tie rod -1-  for re-installation -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking position of eccentric screw

2. Release tie rod at suspension subframe (eccentric screw) and at wheel carrier. Pull out tie rod.

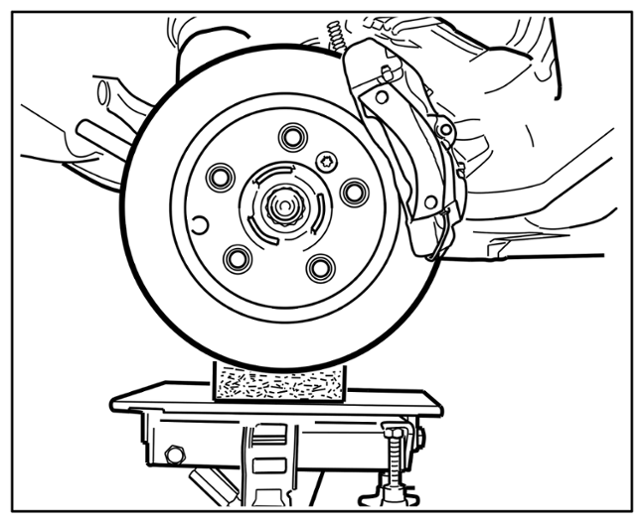

   To make removal easier, raise wheel carrier slightly with universal jack! > Tie rod assembly aid (shown as an example)

   Use a rubber base to prevent the wheel carrier from slipping!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tie rod assembly aid (shown as an example)
