Replacing Bearing For Rear Axle

WARNING: This page is about a different variant/trim than selected.

NOTE: Incorrect line routing

Risk of damage to lines and hoses
Malfunction and fault memory entry on control unit
1. Avoid small bending radii when routing lines.
2. File down edges and burrs in the routing area or mask them with adhesive tape.
3. Maintain a sufficient distance from components exposed to high temperatures while driving.

For vehicles with PDCC (Porsche Dynamic Chassis Control)

The vehicle only moves if the engine is running.

CAUTION: Heavy components

Risk of squashing
1. Wear personal protective gear.
2. Get someone to help if necessary.

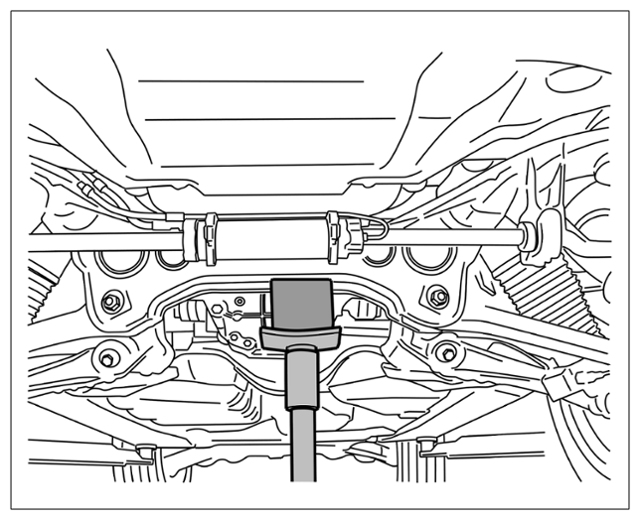

Move the gear support > Supporting chassis subframe (ORS anti-roll bar shown) under the centre of the chassis subframe and lift it carefully using a suitable base (e.g. hard rubber support).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting chassis subframe (ORS anti-roll bar shown)
For vehicles with PDCC: Unclip the lines from the holders on the body so that there is sufficient clearance at the lines for lowering the chassis subframe.
Information

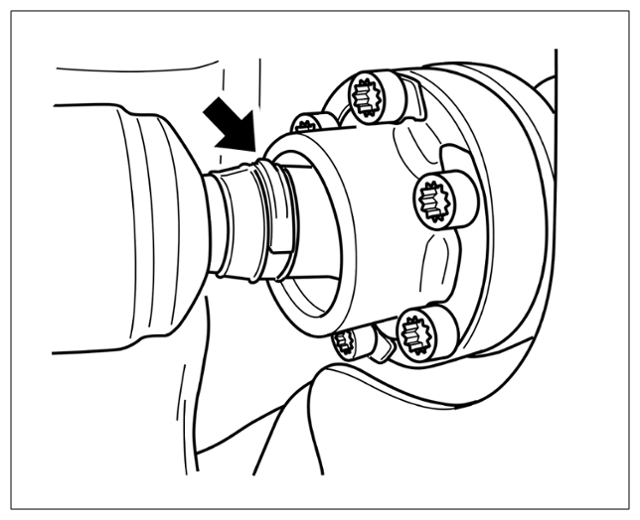

Front rear-axle bearings: The cardan shaft must not touch the mounting face when lowering the suspension subframe! -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clearance for cardan shaft
Loosen the threaded joint on the bearing and carefully lower the gear support until there is sufficient clearance for using the tool.
Press out chassis subframe bearing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

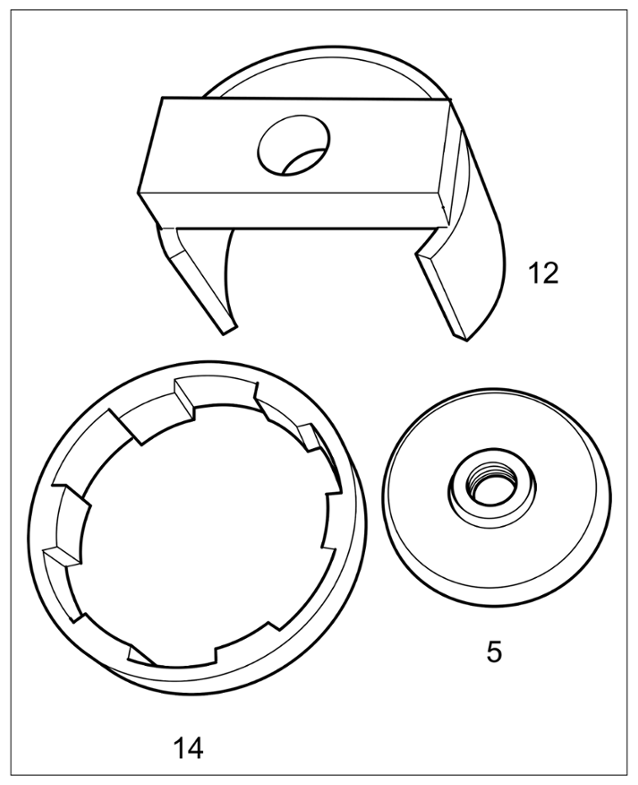

Tools for pressing out RA chassis subframe
CAUTION:
Heavy components
- Risk of squashing
  1. Wear personal protective gear.
  2. Get someone to help if necessary.
Information

Hold the hydraulic cylinder VAS 6178 tightly while pressing it out.

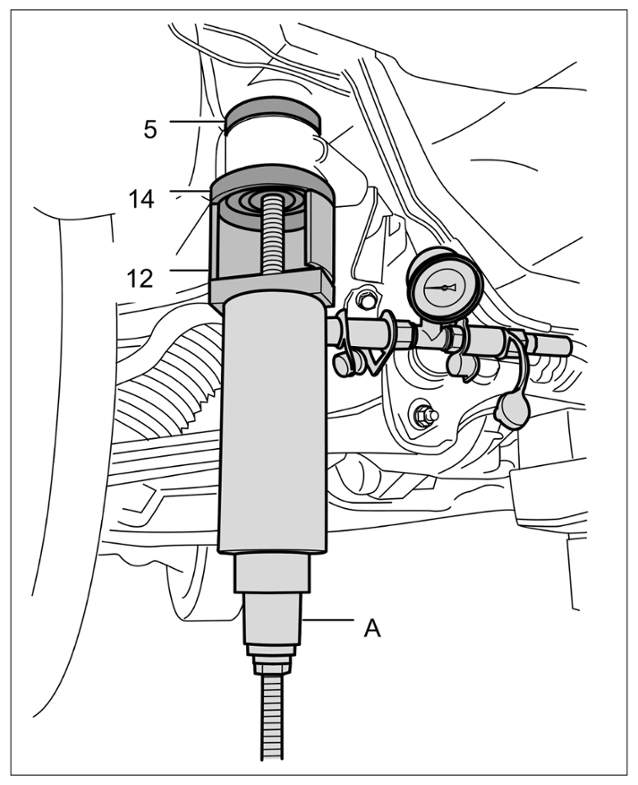

Attach the tools as shown in the illustration and press out the bearing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing out RA bearing, chassis subframe

Information

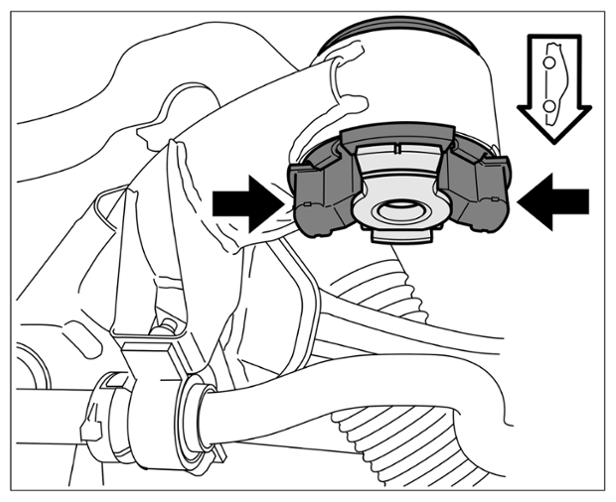

When inserting the bearing, make sure that the rubber cushion is pointing in the direction of travel in the transverse direction.
Check the chassis subframe installation position (rubber cushion -arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chassis subframe installation position installed
To avoid damaging the bearing, the maximum > Pressure 60 kN +/- 5 kN must not be exceeded at the stop (60 KN = 200 bar). This conversion applies only to the hydraulic cylinder VAS 6178. The conversion depends on the diameter of the cylinder in question. > T10301 - Assembly fixture > T10301/20 - Porsche supplement set
Information

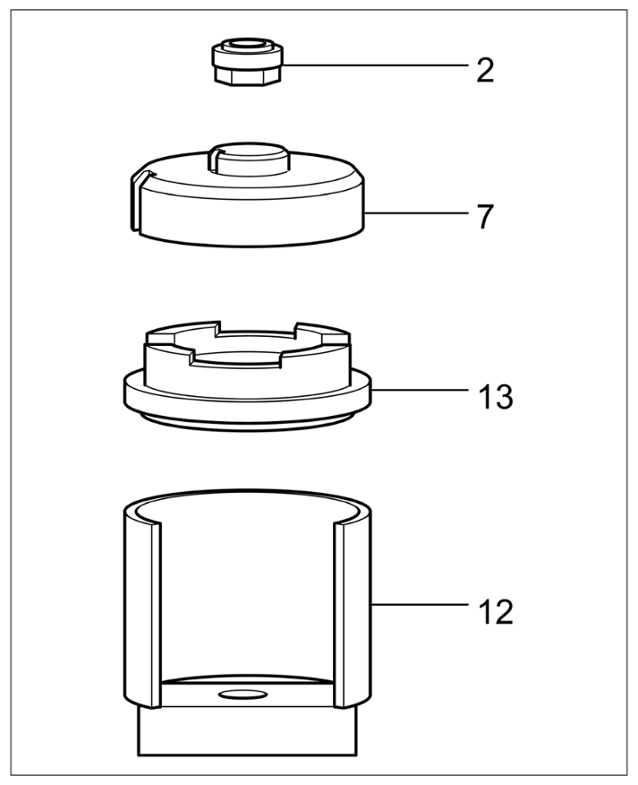

The nut -2- must be locked with the contact surface on the press-in plate -7- ! The press-in plate -7- must be positioned perfectly on the bearing sleeve on the chassis subframe. (Get another worker to help if necessary!)! This prevents the bearing from being drawn in at an incorrect angle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing in RA bearing
Connect the tools together as shown in the illustration. Press the bearing in carefully.
Information

Observe correct tightening torques.
Carefully lift the chassis subframe until the installation position is reached. Fit the threaded joint on the chassis subframe bearing.
For vehicles with PDCC: Clip the lines into the holders on the body.
> 4303AW SAFETY REQUIREMENTS FOR PORSCHE DYNAMIC CHASSIS CONTROL (PDCC)
