Component Overview
WARNING: This page is about a different variant/trim than selected.
The steel springs are not relevant for the Cayenne Turbo.
Standard Cayenne Turbo equipment: Air springs with levelling system and height adjustment.

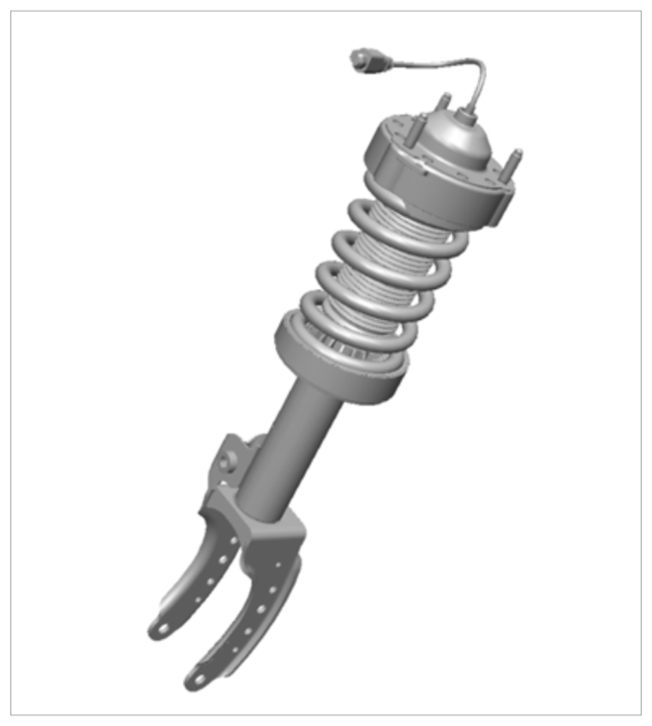

Steel spring strut, complete, FA steel spring

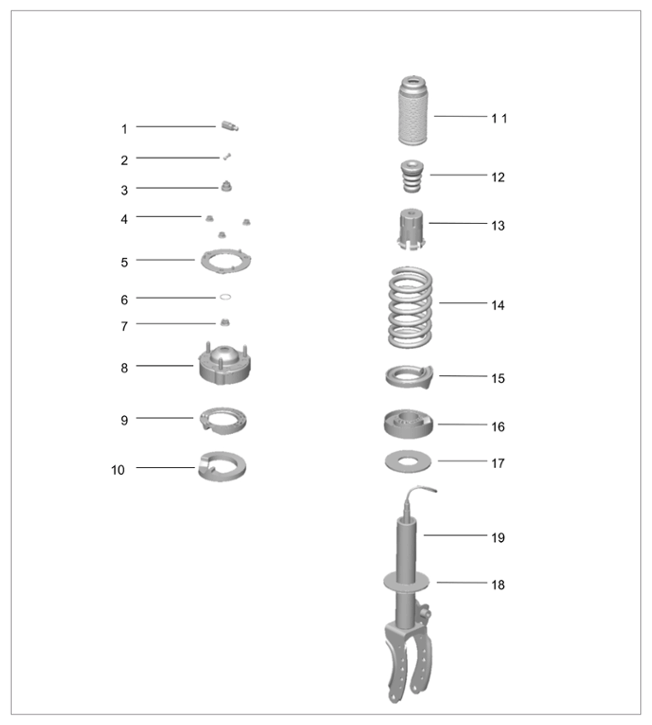

Exploded view of steel spring strut, FA steel spring
| No. | Designation | Note |
|---|---|---|
| -1- | Connector housing | Only for PASM (Porsche Active Suspension Management). |
| -2- | Grommet (connector) | Only for PASM. |
| -3- | Grommet (cable) | Only for PASM. |
| -4- | Hexagon nut (3x) | Please use new hexagon nuts. |
| -5- | Ring | |
| -6- | Cap | Not for PASM. |
| -7- | Lock nut | Please use a new lock nut. |
| -8- | Concave support Supporting mount |
Concave support and supporting mount are a complete unit and cannot be disassembled. |
| -9- | Top support | Fit together at the correct position with top support. (Align triangular markings all around). |
| -10- | Top base | Fit together at the correct position with top support. (Align triangular markings all around). |
| -11- | Boot | |
| -12- | Rubber stop | Allocation of rubber stop as per Spare Parts Information. |
| -13- | Cap | Allocation of cap as per Spare Parts Information. |
| -14- | Coil spring | Allocation of coil spring as per Spare Parts Information. |
| -15- | Bottom base | Fit together at the correct position with bottom support. (Align triangular markings all around). |
| -16- | Bottom support | Fit together at the correct position with bottom support. (Align triangular markings all around). |
| -17- | Spacer | Number of spacers depends on the tolerance class (0 spacers, 1 spacer or 2 spacers). The number depends on the number of grey dots on the coil spring. |
| -18- | Concave washer | |
| -19- | Shock absorber | Allocation of shock absorber as per Spare Parts Information. |
