Assembling Front Spring Strut (Steel Springs)

Information

If the coil spring is replaced: Always replace coil springs in pairs only!

Information

• The coil springs are allocated using the spare part numbers and the model specification. Various coil springs are used at present on the front axle of the Cayenne. Refer to the Parts Information for details of allocation.
• The shock absorbers are allocated using the spare part numbers and the model specification. Various shock absorbers are used at present on the front axle of the Cayenne. Refer to the Parts Information for details of allocation.
• Observe correct tightening torques.

  > Refer to the appropriate Tightening Torques For Front Axle service information

The next sections describe the spring struts with and without PASM.

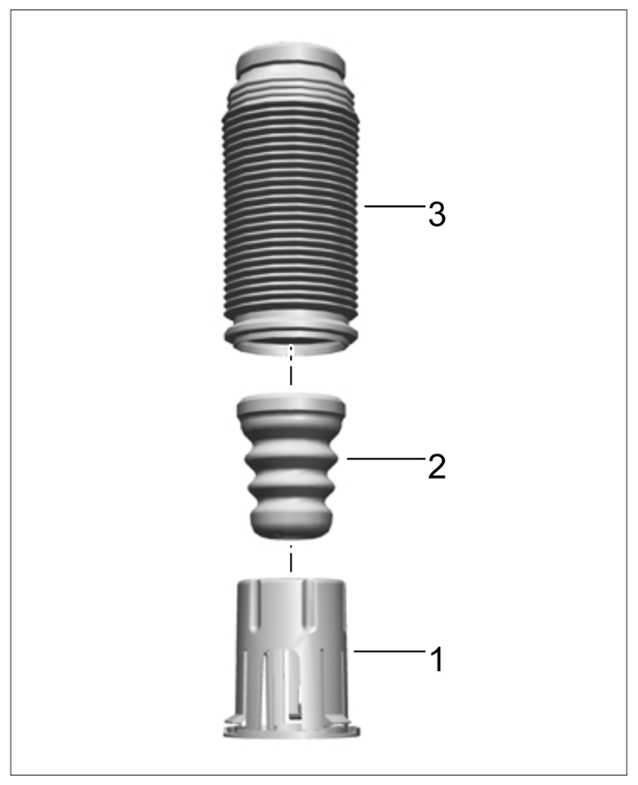

1. Assemble the cap -1-  , rubber stop -2-  and boot -3-  as follows before pushing them onto the piston rod:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Assembly

   Push the rubber stop -2-  up fully into the protective sleeve -3-  .

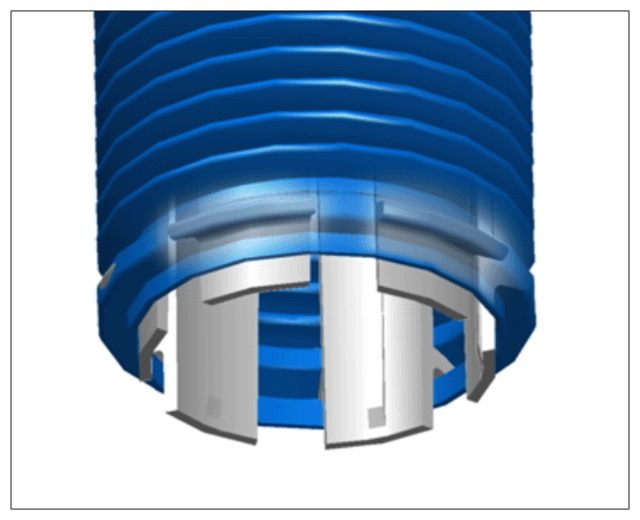

   Insert the cap into the boot - see figure-  and pull the lip carefully over the cap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting cap into boot

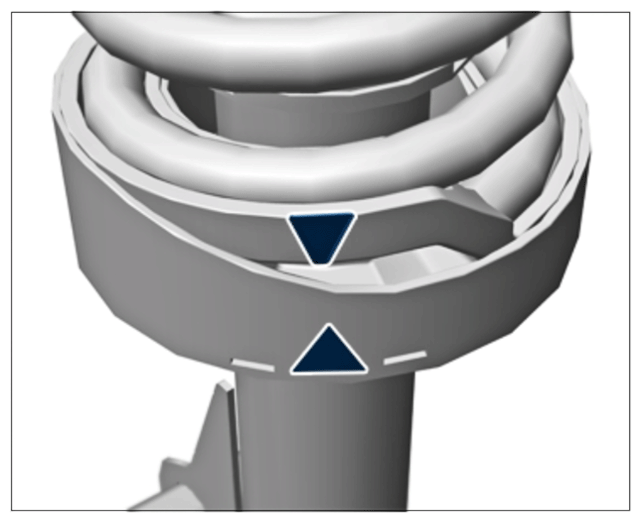

2. Assemble the bottom concave washer (the -arrows-  must be aligned) with the bottom support at the correct position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting bottom concave washer into bottom support

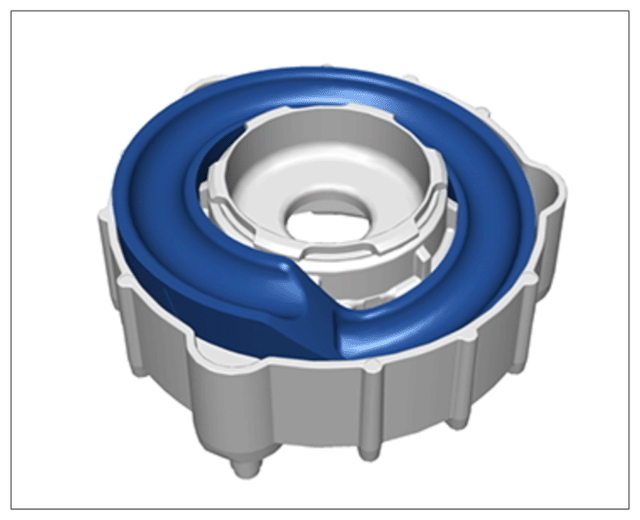

3. Assemble the top concave washer with the top support - see figure-  at the correct position (not twisted).

   At the correct position means both individual components joined together.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting top concave washer in top support

4. Fit the spacer(s) on the shock absorbers if necessary, depending on the vehicle.
5. Fit the bottom support and bottom concave washer assembly at the correct position on the shock absorber.

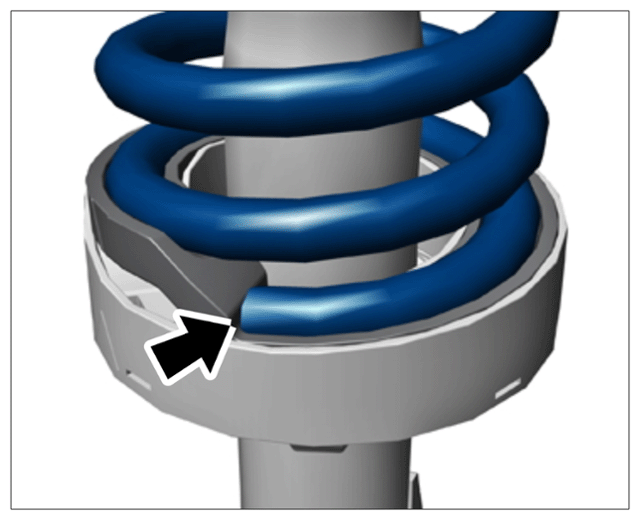

6. Position the pre-tensioned coil spring precisely at the stop in the bottom concave washer -arrow-  .

   The color marking must be on the bottom spring coils.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coil spring stop in bottom concave washer

7. Slide the boot/rubber stop/cap assembly loosely onto the piston rod.
8. Fit the top concave washer/top support assembly.

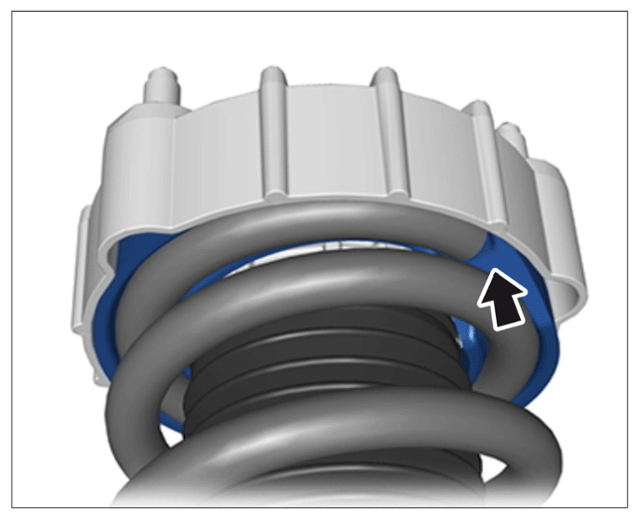

   Fit the top spring support precisely (without gaps) at the coil spring stop -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Stop for top spring strut support on coil spring

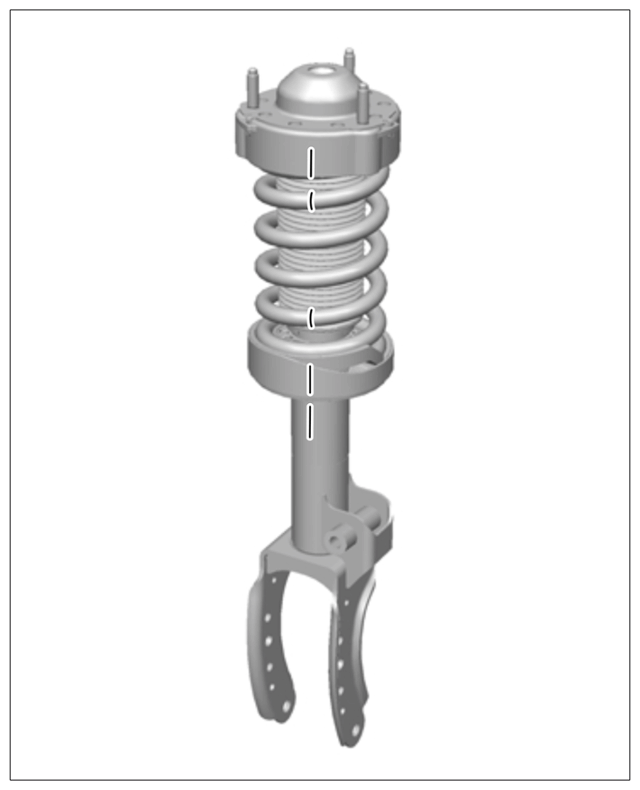

9. For assembly, observe the markings made earlier for the concave support, steel spring and shock absorber. > Spring strut marked

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring strut marked

10. Fit supporting mount.
    1. 10.1 Align the shock absorber so that the connecting link connection from the anti-roll bar to the spring strut is facing in the opposite direction to the direction of travel.
11. Align the opposite notches -inset-  of the supporting mount parallel to the direction of travel.

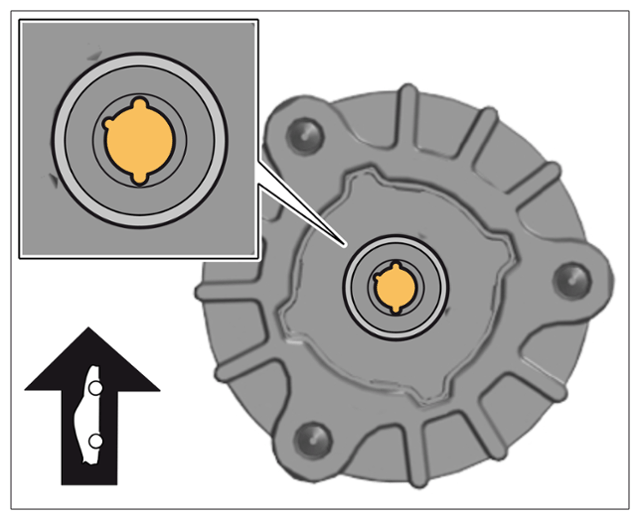

    1. 11.1 Small notch on the left must always be facing forward and to the left in direction of travel. Spring strut, LEFT:

       > Supporting mount alignment, LEFT

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Supporting mount alignment, LEFT

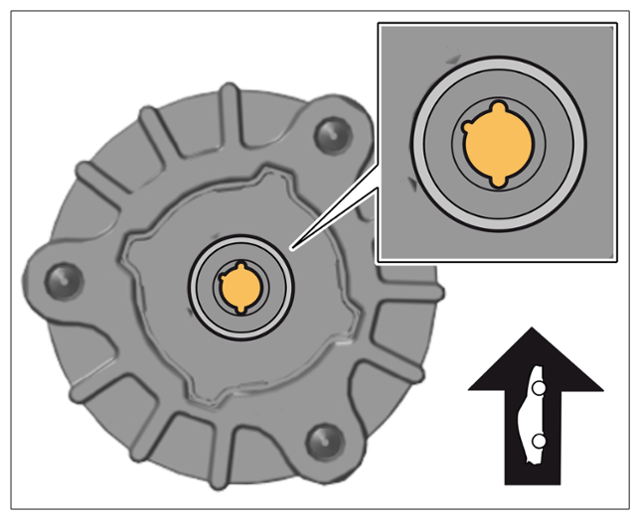

    2. 11.2 Small notch on the left must always be facing forward and to the left in direction of travel. Spring strut, RIGHT

       : > Supporting mount alignment, RIGHT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supporting mount alignment, RIGHT

12. Screw lock nut onto the piston rod.
    1. 12.1 Screw the lock nut onto the piston rod until approx. 1 to 2 threads are visible above the lock nut.

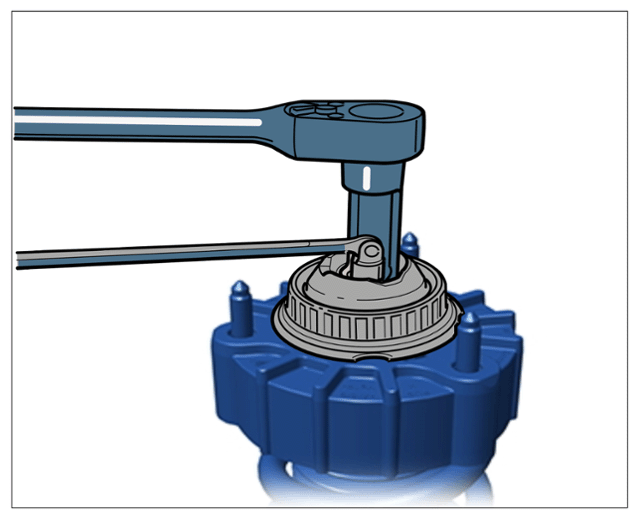

13. Use > 3353 - socket-wrench insert or for PASM, > 3077 - socket-wrench insert to tighten the lock nut.

    The tightening torque can vary, depending on the equipment variant:

    Spring strut without PASM > Tightening torque 60 Nm (44 ftlb.) +/- 5 Nm (3.5 ftlb.)

    Spring strut with PASM > Tightening torque 70 Nm (52 ftlb.) +/- 5 Nm (3.5 ftlb.)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting supporting mount

14. Carefully remove the spring tensioner.
15. Complete the following steps to ensure that the boot is seated correctly:

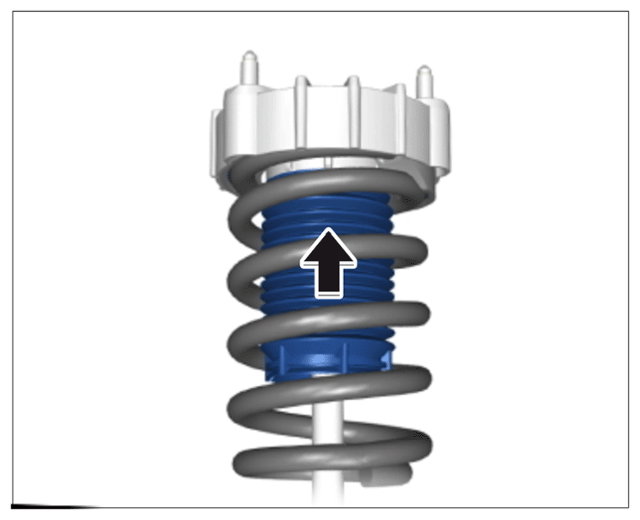

    Push the boot up fully -arrow-  and clip it into the concave support.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting protective sleeve in top spring strut

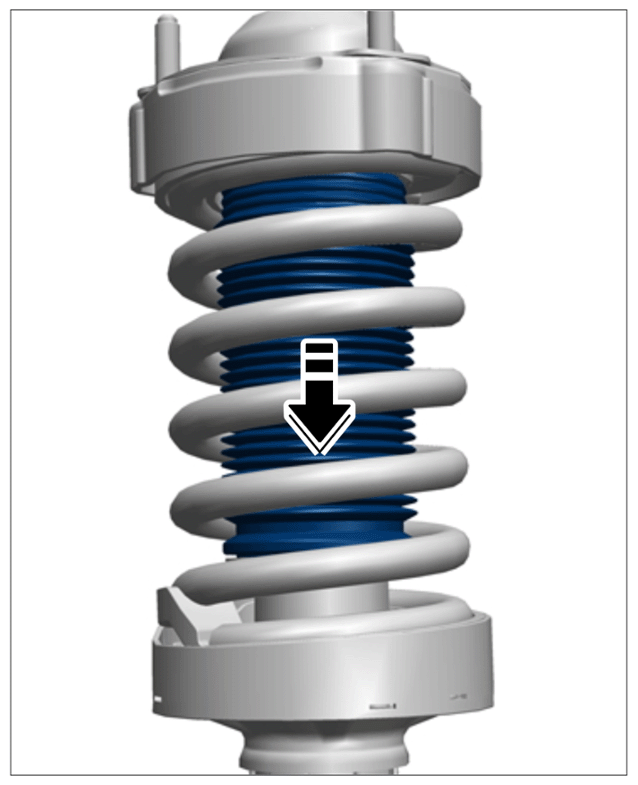

    Push the boot down fully and pull the cap on the shock absorber down -arrow-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting protective sleeve in bottom spring strut

16. On vehicles with PASM, fit the grommets on the cable.
17. On vehicles with PASM, pin the cables into the connector (according to markings applied earlier) and close the locking mechanism.
