Removing Front Spring Strut (Steel Springs With Pasm)

WARNING: This page is about a different variant/trim than selected.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components
1. Wear personal protective gear.
2. Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

For vehicles with PDCC, raise the wheel suspension slightly using a transmission jack (do not raise wheel suspension higher than normal vehicle position (vehicle resting on wheels). This changes the angular position of the control arm and the spring strut can be removed by turning carefully.

Information

The pictures shown in this document may differ from the original.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

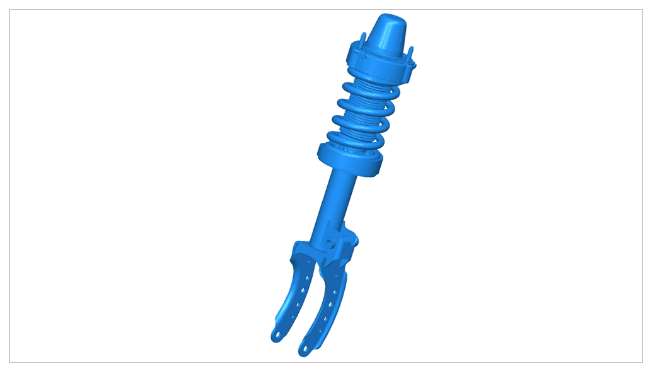

Front spring strut (steel springs with PASM); wire harness under transport protection cap

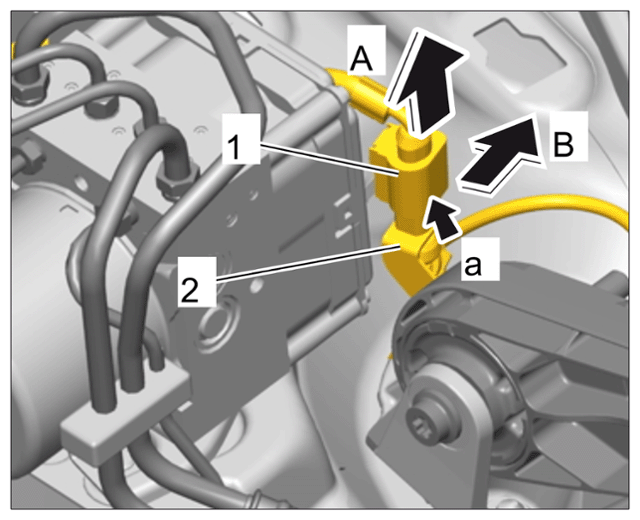

Release electric plug connection -1- for the spring strut wire harness -a- and pull it off -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for spring strut
Unclip wire harness from the holder -2- (-B- ).

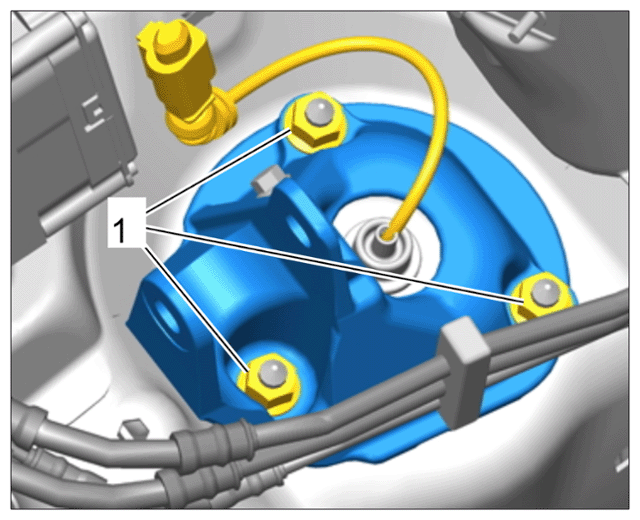

Screw fastening nuts -1- off the upper spring strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper spring strut (steel springs with PASM) mounting

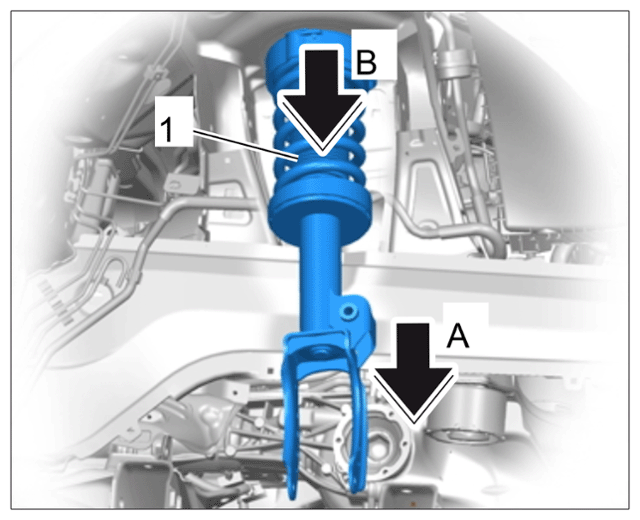

Carefully pull the spring strut -1- down -A- and then remove it in an upward direction -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing spring strut (steel spring) (shown without wheel carrier)
