Preliminary Work For Removing And Installing Front Spring Strut (Steel Springs) On Passenger's Side

WARNING: This page is about a different variant/trim than selected.
  1. For V8:

    Remove torque support.

    > 103719 Removing and installing torque support - section on "REMOVING "

  2. Unclip bleeder valve -1-  at the coolant reservoir.

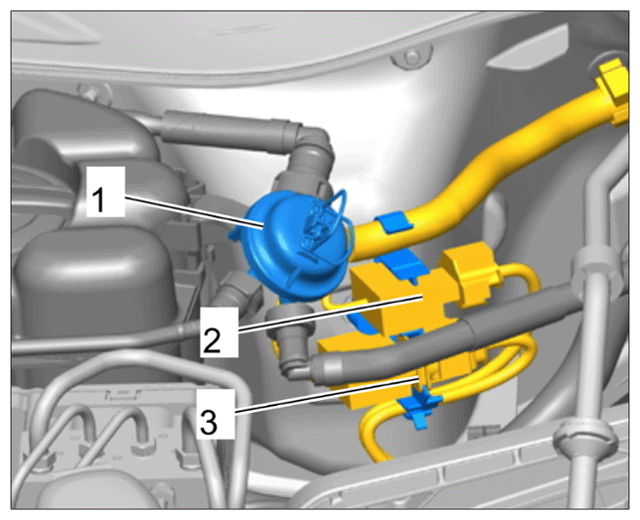

    G16329457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping wire harness at right of engine compartment

  3. Unclip plug connections -2, 3-  from the holders at the cross panel.
