Replacing Anti-Roll Bar Mount

Information

• In the description below, all steps are shown only on one side of the vehicle (vehicle with PDCC).
• The mounts must always be replaced on both sides of the vehicle.

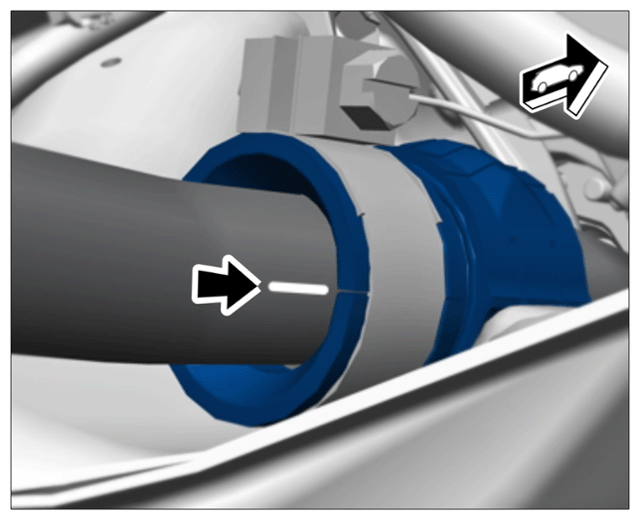

1. Mark the position of the mount at the contact point of the mount halves on the anti-roll bar. > Marking position of the mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking position of the mount

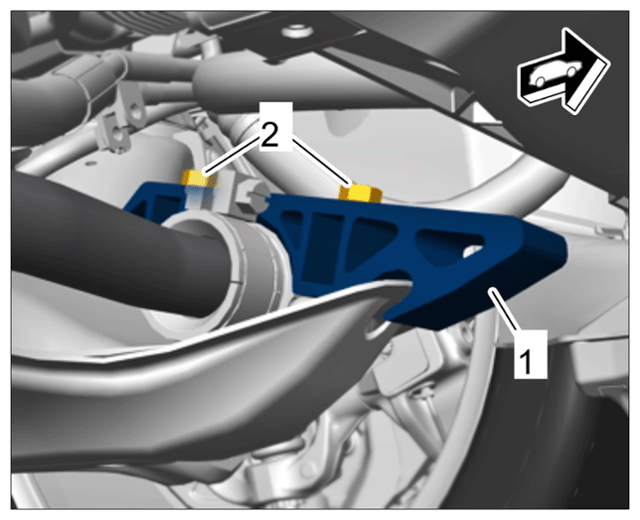

2. Remove mounting for anti-roll bar -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for anti-roll bar

   1. 2.1 Unscrew fastening screws -2-  .
   2. 2.2 Remove mounting for anti-roll bar -1-  .
3. Applies only to anti-roll bar with PDCC:

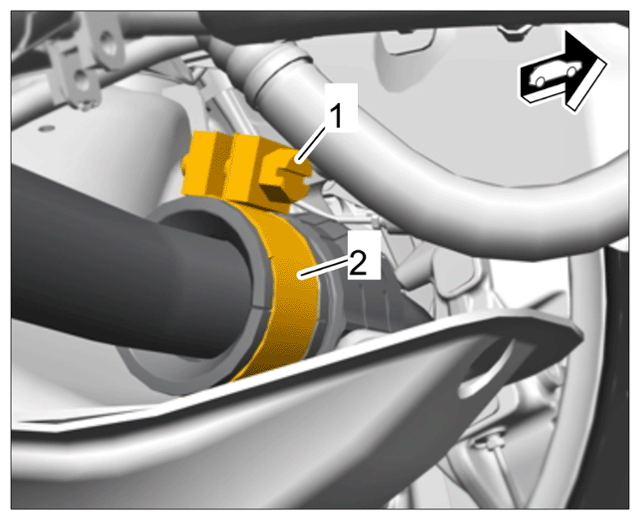

   Loosen clamping screw -1-  on hose clamp -2-  and remove hose clamp from the mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hose clamp (PDCC only)

4. Remove mount halves from the anti-roll bar (lift the anti-roll bar up slightly to access the lower mount halves).
5. Clean anti-roll bar at the seat of the mount.
6. Install new mount.
   1. 6.1 Align mount halves using the hexagon profile attached to the anti-roll bar.
   2. 6.2 Check that the installation position is correct using the marking on the anti-roll bar > Marking position of the mount  .
7. Applies only to anti-roll bar with PDCC:

   Push hose clamp onto the mount and tighten clamping screw on the hose clamp. > Tightening torque 12 (9 ftlb.) Nm  > Hose clamp (PDCC only)

   WARNING: Wheel bearing housing raised incorrectly

   • Risk of crushing
   • Risk of damage to components
     1. Wear personal protective gear.
     2. Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

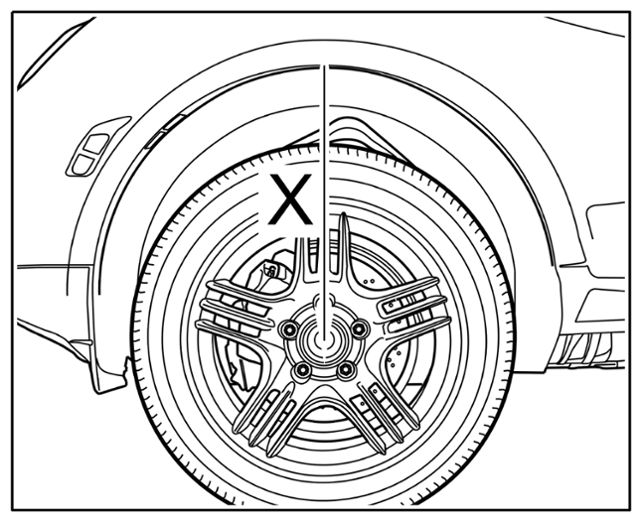

   Dimension -X-  : lower edge of wing to centre of axle (shown as an example)

   • All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment

     > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

   • Visually inspect all parts.
   • Replace self-locking nuts.
   • Replace all expansion screws (screws fitted using torque angle tightening procedure).
   • Use correct tightening torques and torque angle.

     > Refer to the appropriate Tightening Torques For Front Axle service information

   8 Install mounting for anti-roll bar and tighten fastening screws. > Tightening torque 60 (44 ftlb.) Nm  > Mounting for anti-roll bar
