Courtesy of PORSCHE CARS NORTH AMERICA, INC.

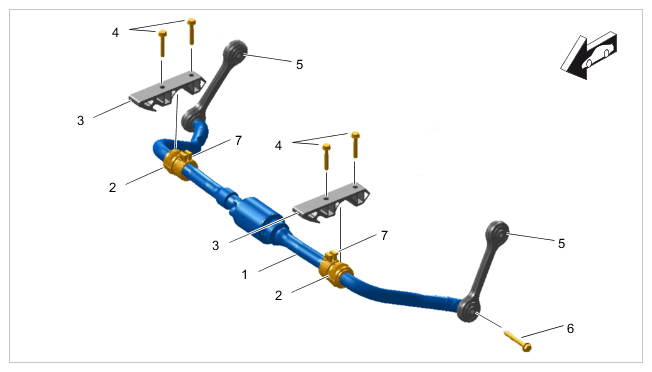

Installation position of front anti-roll bar (PDCC)
| 1 |
Anti-roll bar |
| 2 |
Anti-roll-bar mount |
| 3 |
Clamp |
| 4 |
Fastening screws |
| 5 |
Connecting link |
| 6 |
Fastening screw |
| 7 |
Hose clamp |
