Preliminary Work For Removing And Installing Front Wheel Bearing Housing (Wheel Carrier)

WARNING: This page is about a different variant/trim than selected.
  1. Remove hub cap using > 9229 - puller hook and loosen drive shaft mounting at the wheel side before raising the vehicle. Operate the brake whist doing so (second mechanic required).

    > 404119 Removing and installing front drive shaft - section on "REMOVING "

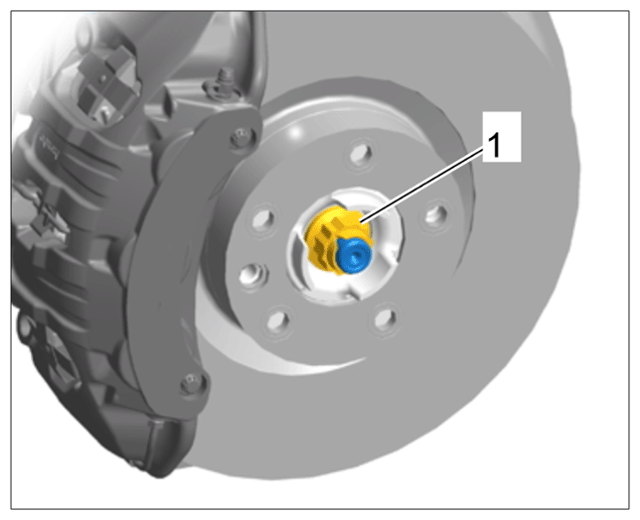

    G16329383Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock nut on drive shaft (shown as an example)

  2. Remove wheel.

    > 440519 Removing and installing wheel - section on "REMOVING "
