Component Overview

WARNING: This page is about a different variant/trim than selected.

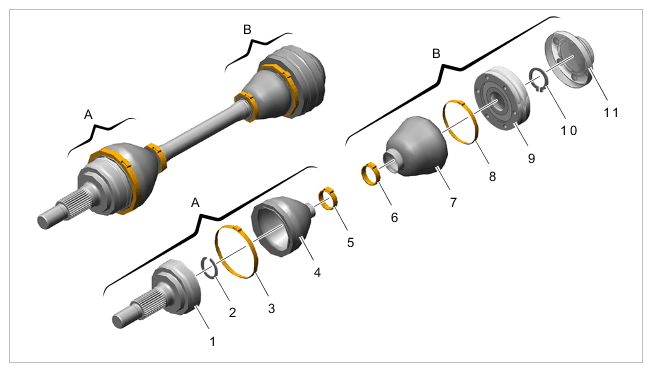

Fig 1: Overview Of Front Drive Shaft Components Location
G16329367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of front drive shaft

No. Designation Qty. Removal Installation
A Outer joint
1 Joint pin 1 Tap joint pin out of drive shaft using a hammer and mandrel. Use a hammer to fit the joint pin as far as it will go on to the drive shaft.
2 Circlip, 21 x 1.7 1 Remove circlip.(1) Do not confuse circlip no. 2 with circlip no. 10 on inner joint. The two parts are not identical. Ensure that the circlip is seated correctly.
3 Hose clamp, 82 x 10 1 Remove hose clamp using a hammer and chisel, for example. Do not damage boot. Fit hose clamp with boot on the joint pin.
4 Boot 1 Remove boot from the shaft. Do not confuse boot no. 4 with boot no. 7. The two parts are not identical. Position boot correctly.
5 Hose clamp, 28.5 x 10 1 Remove hose clamp using a hammer and chisel, for example. Do not damage boot. For securing the boot.
B Inner joint
6 Hose clamp, 32 x 10 1 Remove hose clamp using a hammer and chisel, for example. Do not damage boot. For securing the boot.
7 Boot (with bellow support) 1 Remove boot from the shaft. Do not confuse boot no. 7 with boot no. 4. The two parts are not identical. Ensure correct seating.
8 Bellow support (with boot) 1 Remove bellow support. Use two cheese-head bolts to centre the bellow support. Fit at the correct position and seal the sealing faces with special sealant (see Spare Parts Information).
9 Joint 1 Press joint off the drive shaft. Using a hammer and mandrel, drive the joint as far as it will go onto the drive shaft.
10 Circlip, 25 x 1.2 1 Remove circlip carefully with a pliers. (1) Do not confuse circlip no. 10 with circlip no. 2 on outer joint. The two parts are not identical. Ensure that the circlip is seated correctly.
11 Lid 1 Remove cap. Use two cheese-head bolts to centre the cap. Ensure correct seating. Seal the sealing faces with special sealant (refer to Spare Parts Information).
(1) Danger of injury.
