Removing Lower Trailing Arm

WARNING: This page is about a different variant/trim than selected.
WARNING: Wheel bearing housing raised incorrectly
  • Risk of crushing
  • Risk of damage to components
    1. Wear personal protective gear.
    2. Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

The pictures shown in this document may differ from the original.

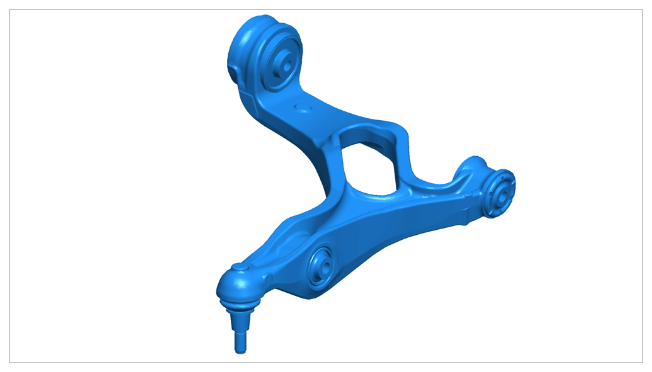

G16329303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower trailing arm

  1. Unscrew the fastening screw -2-  for the spring strut -3-  and at the same time, raise the axle support -1-  as far as required using a suitable jack -4-  so that the fastening screw can be pushed out easily.

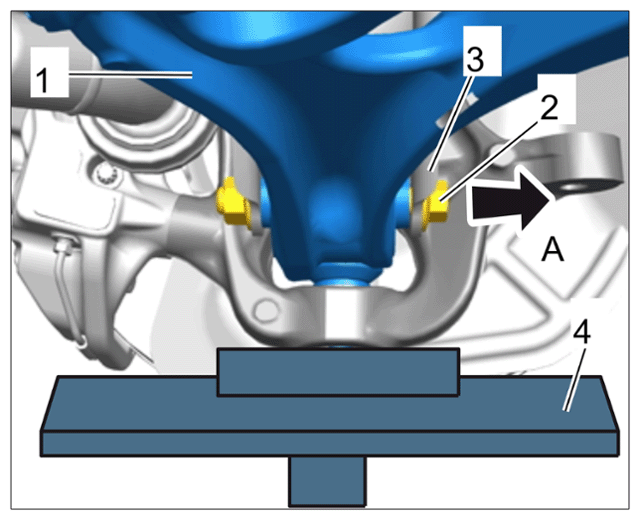

    G16329304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing spring strut mounting

  2. Fix the upper trailing arm -2-  in place using > VW552 - Spring tensioner  , -1-  .

    The spring compressor is engaged in the top opening of the wheel housing and in the upper trailing arm and is tensioned slightly to avoid damaging the upper ball joint -3-  .

    G16329305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing upper trailing arm

  3. Remove the jack.
  4. Loosen the lock nut -1-  on the bottom ball joint -2-  . To prevent damage to the ball pin -3-  when pressing it off, only loosen the nut until it is sitting flush on the ball pin.

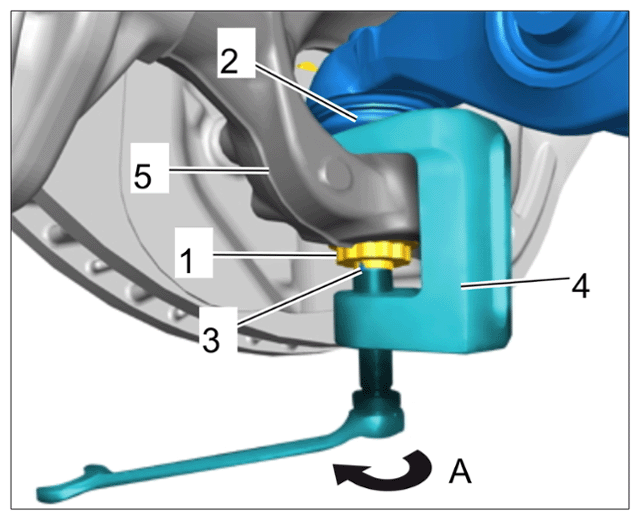

    G16329306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing off ball pin

  5. Fit the > T10444 - ball joint puller  , -4-  over the ball joint -2-  and ball pin -3-  and carefully press the ball joint out of the trailing arm -5-  .

    Make sure not to damage the rubber boot on the ball joint.

  6. Mark the eccentric screws -1-  for the adjusting camber and caster on the chassis subframe with a coloured pen -A, B-  (facilitates fitting during re-installation).

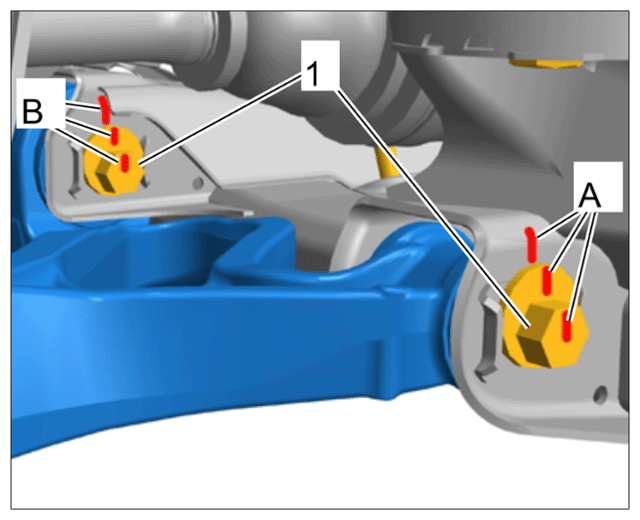

    G16329307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking on eccentric screws

  7. Remove the eccentric screws. Make sure that the eccentric screws do not damage the bellows. For this purpose, raise the wheel bearing housing using a suitable jack.
  8. Pull (press) the trailing arm out of the chassis subframe mounting points -A-  .

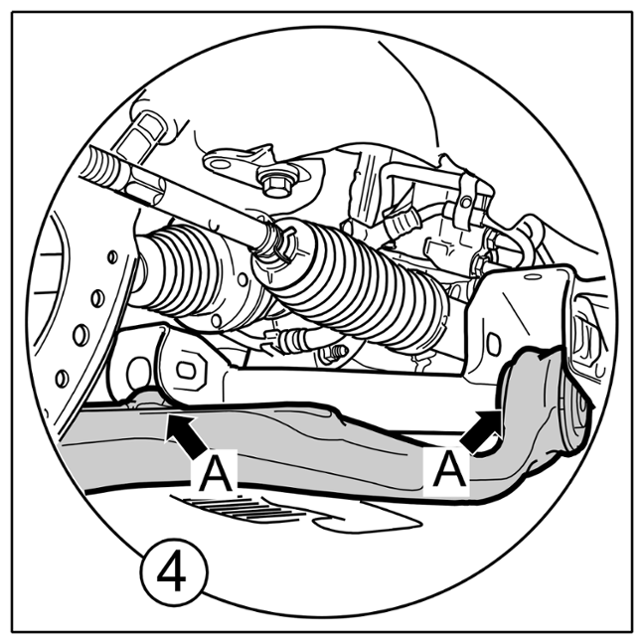

    G16329308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing trailing arm (shown as an example)

  9. Remove the lock nut > Removing ball joint (shown as an example)  from the ball joint. Tilt the -trailing arm-  down all the way and pull the ball joint carefully out of the wheel bearing housing.

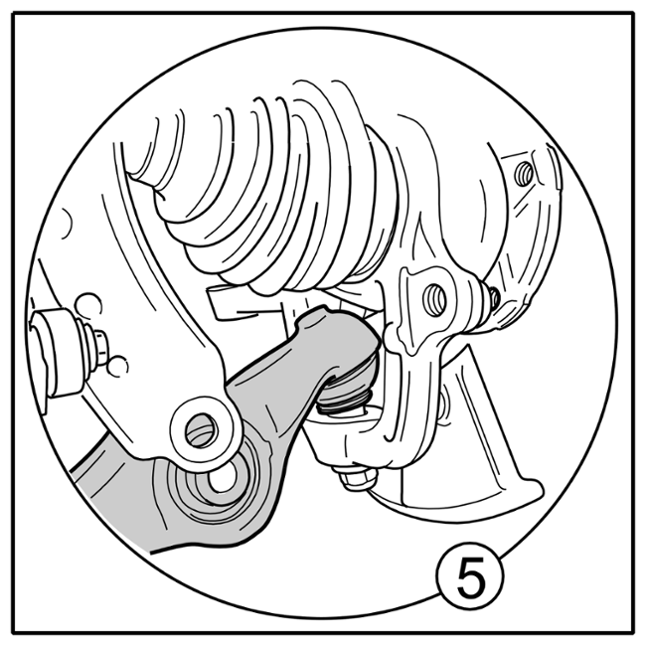

    G16329309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing ball joint (shown as an example)
